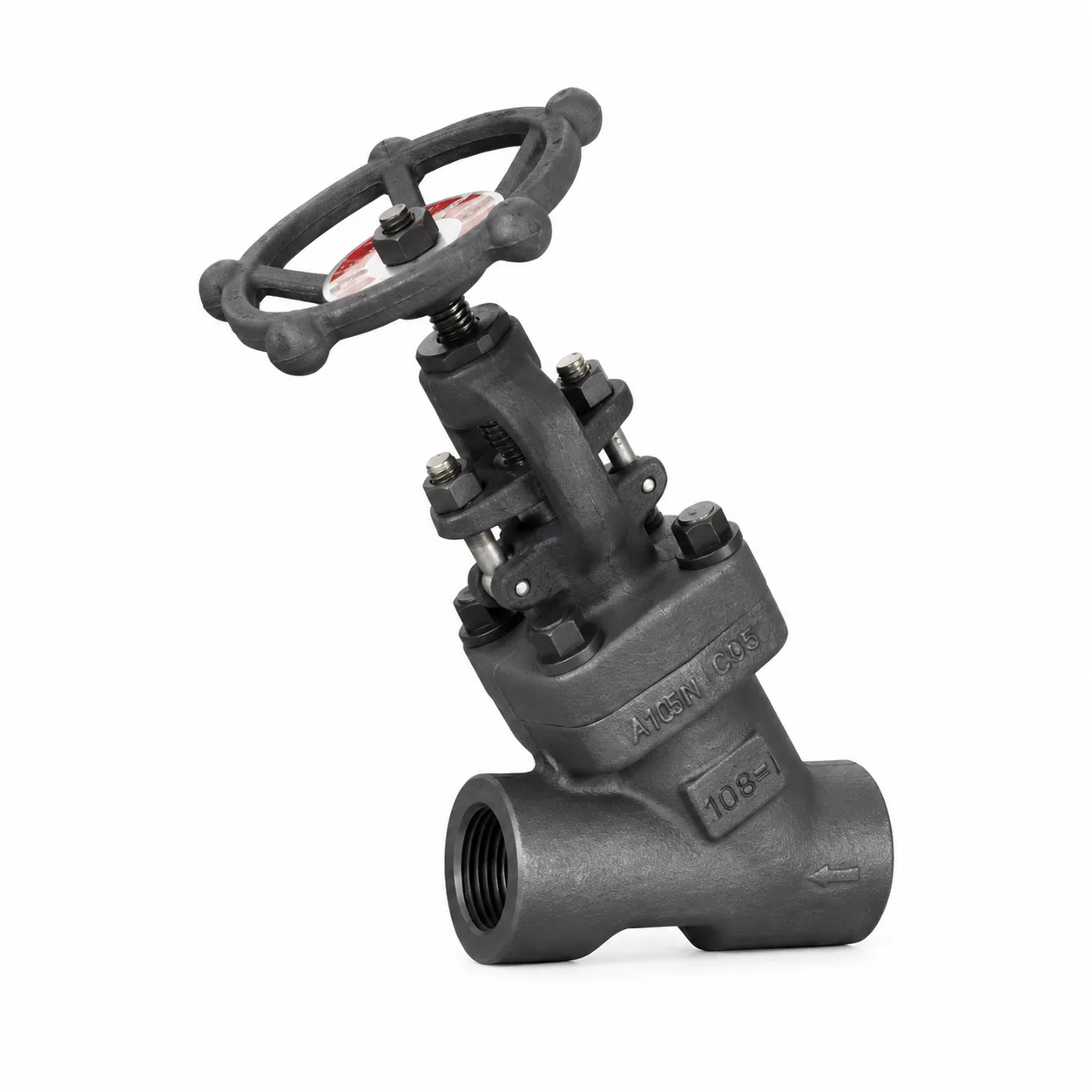

What are Y-pattern Globe Valves

Y-pattern globe valves are engineered with a distinctive Y-shaped body that positions the inlet and outlet ports at a 45-degree angle. This configuration streamlines the flow path, reducing turbulence and pressure drop compared to traditional straight-pattern globe valves. The design features a stem and bonnet set at an angle, facilitating a more direct flow of fluid through the valve. This alignment enhances flow efficiency and minimizes the risk of erosion and wear on internal components.

Advantages of Y Pattern Globe Valves

Reduced Pressure Drop and Improved Flow Characteristics

Y-pattern globe valves are engineered with a Y-shaped body that positions the inlet and outlet ports at a 45-degree angle. This design streamlines the flow path, significantly reducing pressure drop and enhancing flow efficiency compared to traditional straight-pattern globe valves. The angled configuration minimizes turbulence and resistance, allowing for smoother fluid movement through the valve.

Enhanced Durability and Resistance to Erosion

The Y-pattern design contributes to the valve’s durability by reducing the velocity of the fluid as it passes through, thereby minimizing erosion and wear on internal components. This results in a longer service life and reduced maintenance requirements. Additionally, the robust construction of Y-pattern globe valves ensures they can withstand demanding operating conditions, including high pressures and temperatures.

Suitability for High-Pressure and High-Temperature Applications

Y-pattern globe valves are particularly well-suited for high-pressure and high-temperature applications due to their streamlined flow path and durable construction. The reduced pressure drop and improved flow characteristics make them ideal for systems where maintaining pressure and temperature is critical. Industries such as oil and gas, petrochemical, and power generation frequently utilize Y-pattern globe valves to ensure efficient and reliable operation in challenging environments.

Applications of Y Pattern Globe Valves

Oil and Gas: These valves manage the flow of crude oil, natural gas, and other fluids in upstream and downstream operations, ensuring safe and efficient transportation.

Power Generation: In power plants, Y-pattern globe valves regulate steam and water flow, contributing to stable and efficient energy production.

Chemical Processing: They control the flow of various chemicals, including acids, bases, and solvents, ensuring safe and efficient operations in chemical plants.

Water Treatment: Y-pattern globe valves manage water flow and pressure in treatment plants, ensuring clean and potable water supply.

HVAC Systems: They control the flow of heating and cooling fluids, maintaining optimal temperatures in buildings and industrial facilities.
