Size Range: DN40–DN800
Pressure Range: PN10–PN25
End Connection: Flanged
Material: Ductile Iron/Carbon Steel
Seals: EPDM/NBR
Valves Design: Diaphragm-type adjustable pressure reducing valve
Face to Face: ISO 5752
Testing & Inspection: API 598
Suitable Medium: Water, air, and non-corrosive fluids
The Adjustable Pressure Reducing Valve is designed to automatically reduce and maintain downstream pressure in water and fluid control systems. It features a diaphragm-actuated design, ensuring stable performance and precise pressure regulation. Ideal for a variety of industrial and municipal applications, this valve offers reliable operation and minimal maintenance.
Automatic pressure regulation with precise adjustment capabilities.
Diaphragm-actuated design ensures long-term reliability and stability.
Corrosion-resistant materials for durability in various environments.
Flanged connections for easy installation and maintenance.
Low flow resistance ensures high efficiency and smooth operation.

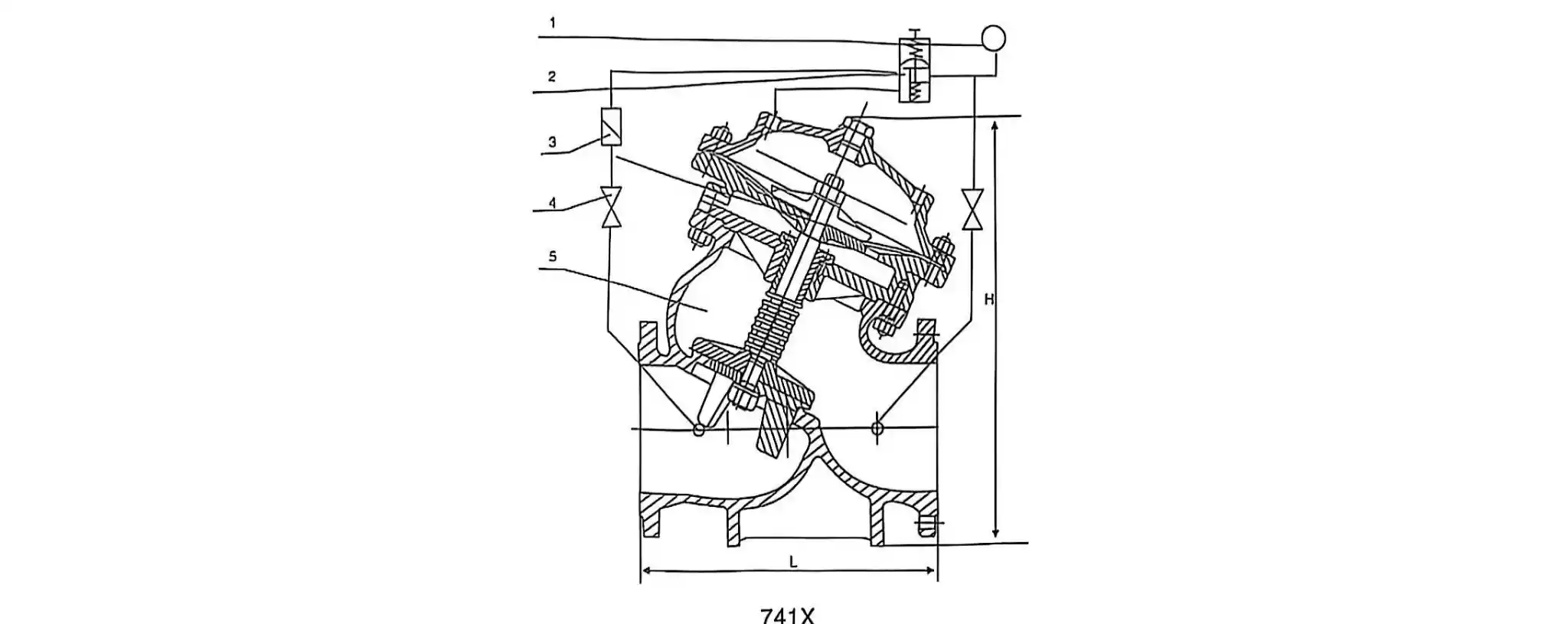

The valve is divided into two types: diaphragm type and piston type. It consists of the main valve (5), pilot valve (2), valve (4), filter (3), pressure gauge, and other components.
It is widely used in industrial and mining enterprises, high-rise buildings, fire water supply systems, and drainage systems to reduce upstream pressure (both dynamic and static) to a suitable downstream level for normal use.
The higher the upstream pressure, the greater the pressure drop.
By replacing components such as intermediate tanks and resistance devices, the outlet pressure adjustment range can be widened—up to 10% to 80% before the valve.
| Nominal Pressure PN | 1.0 MPa | 1.6 MPa | 2.5 MPa |
|---|---|---|---|
| Shell Test Pressure | 1.5 MPa | 2.4 MPa | 3.75 MPa |
| Sealing Test Pressure | 1.1 MPa | 1.76 MPa | 2.75 MPa |
| Outlet Pressure Adjustment P2 | 0.10–0.8 MPa | 0.16–1.3 MPa | 0.25–2.0 MPa |
| Working Temperature | ≤ 80°C | ||
| Applicable Medium | Water, raw water | ||
| DN (mm) | L (mm) | H (mm) |
|---|---|---|
| 40 | 240 | 270 |
| 50 | 240 | 270 |
| 65 | 270 | 340 |
| 80 | 300 | 400 |
| 100 | 350 | 440 |
| 125 | 460 | 460 |
| 150 | 480 | 500 |
| 200 | 500 | 640 |
| 250 | 605 | 690 |
| 300 | 690 | 840 |
| 350 | 800 | 950 |
| 400 | 900 | 1150 |
| 500 | 1100 | 1550 |
| 600 | 1300 | 1600 |
| 700 | 1400 | 1750 |
| 800 | 1500 | 1900 |
Flange connection standards:
PN1.0MPa, PN1.6MPa according to GB/T 17241.6–1998
PN2.5MPa according to GB/T 9113.1–2000
Municipal Water Supply: Pressure control in water distribution systems.
Industrial Processes: Regulating pressure in cooling and heating systems.
Irrigation Systems: Ensures consistent water flow and pressure.
HVAC Systems: Used in managing pressure in air-conditioning and heating networks.
