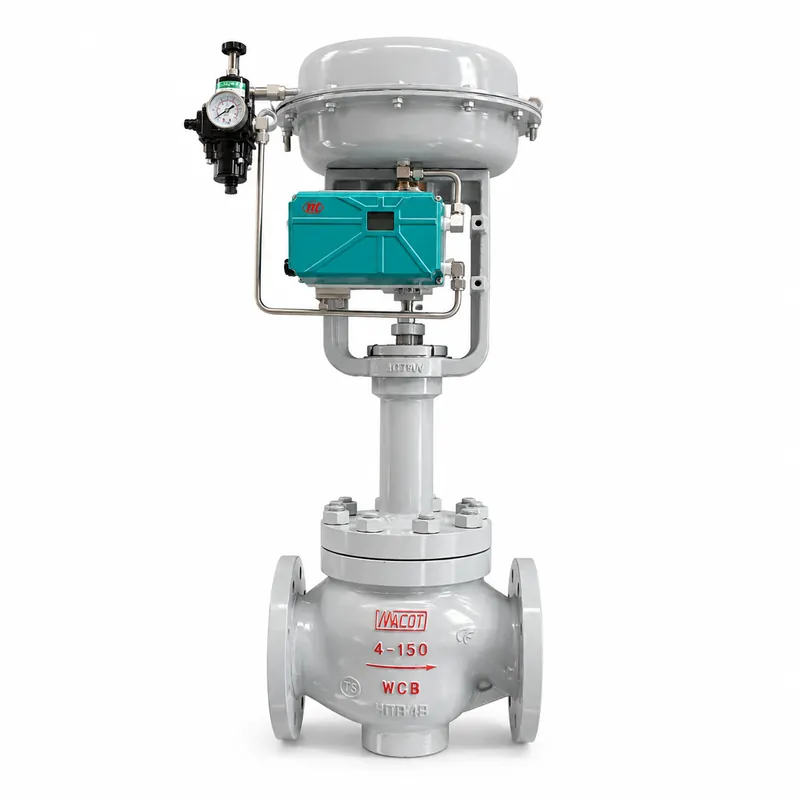

Model: MCV-150
Nominal Size: DN15 to DN200
Pressure Class: PN16 to PN100; ASME Class 150 to 600
Rangeability: 50:1; 75:1 optional
Bonnet Seal: Bellows plus packing
Flow Characteristic: Equal percentage or linear
Model MCV-150 uses a dual-seal bellows-and-packing bonnet to isolate process fluid from the stem packing path. Single-seat and pressure-balanced cage-guided variants are available for toxic, highly corrosive, radioactive, rare, or valuable media.
| Item | Specification |
|---|---|
| Nominal Size | DN15 to DN200 |
| Pressure Class | PN16 to PN100; ASME Class 150 to 600 |
| Rangeability | 50:1; 75:1 optional |
| Bonnet Seal | Bellows plus packing |
| Flow Characteristic | Equal percentage or linear |
| Leakage Class | Class IV; Class V optional; Class VI with soft seat |
| Leakage Standard | GB/T 4213-2008 and ASME B16.104-1998 |
| End Connections | Flanged, socket weld, or butt weld as listed in the selection guide |
| Actuation | Pneumatic diaphragm, pneumatic piston, or electric actuator as configured |
