Material: Stainless Steel (SS304, SS316)
Size: 1/4″ to 1″
Connection: NPT, BSPT
Working Pressure: up to 6000 psig (413 bar)
Working Temperature:–40 to 250°F (–40 to 121°C)
Sealing: PTFE, PEEK

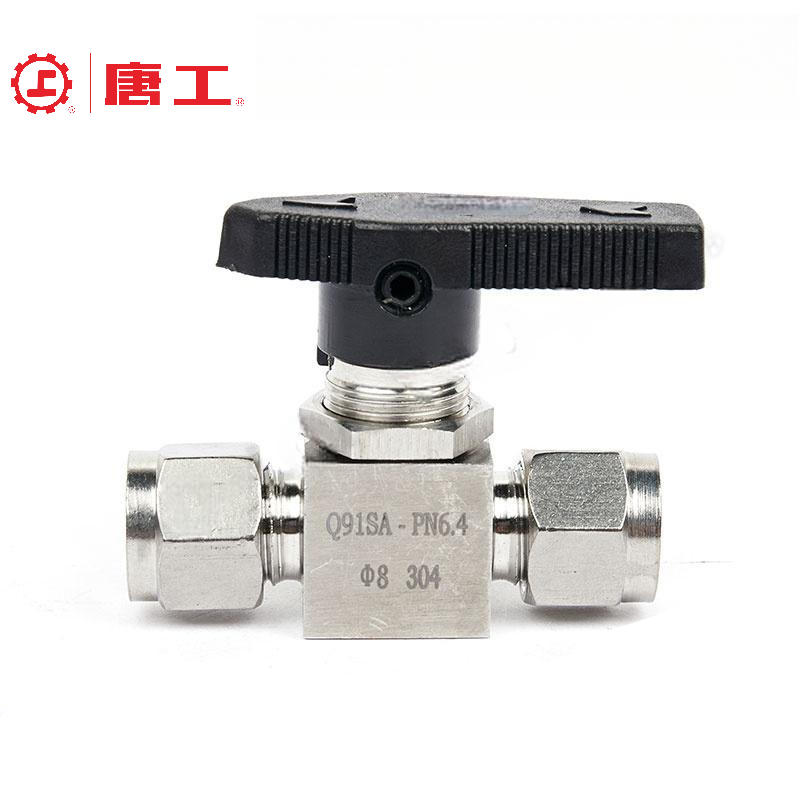

Alternative Fuel Service (AFS) Ball Valves are engineered for high-performance and reliability in alternative fuel applications, including hydrogen and compressed natural gas (CNG) systems. Designed to handle pressures up to 6000 psig (413 bar) and temperatures ranging from -40°F to 250°F (-40°C to 121°C), these valves ensure leak-tight integrity with spring-loaded seats and low-temperature fluorocarbon seals.
AFS ball valves provide flexibility and ease of use. All wetted components are fully compatible with hydrogen and CNG. Each valve undergoes rigorous leak testing with nitrogen or compressed air to ensure zero visible leaks. Additional options include pneumatic actuators, handle color customization, and field repairable seal kits.
| Item | Component | Material/ASTM Standard |
| 1 | Handle | Nylon with stainless steel insert |
| 2 | Set screw | Zinc-plated carbon steel |
| 3 | Guide ring | PTFE/D1710 |
| 4 | Stem | 316 SS/A479 |
| 5 | Packing bolt | 316 SS/A479 |
| 6 | Stem backup ring | PEEK |
| 7 | Lock nut | 316 SS/A479 |
| 8 | Stem O-ring | Low-temperature fluorocarbon |
| 9 | Packing bolt washer | Silver-plated 316 SS/A269 |
| 10 | Thrust washer | PEEK |
| 11 | Coned-disc spring | 316 SS/A240 |
| 12 | Seat gland | 316 SS/A479 |
| 13 | Seat backup ring | PTFE/D1710 |
| 14 | Seat O-ring | Low-temperature fluorocarbon |
| 15 | Seat | PEEK |
| 16 | End connection gasket | Silver-plated 316 SS/A269 |
| 17 | Ball | 316 SS/A479 |
| 18 | Body | 316 SS/A479 |
| 19 | End connection | 316 SS/A479 |
| Lubricant | PTFE-based |
Dimensions, in inches (millimeters), are for reference
only and are subject to change.
| Connection Type and Size | Cv | Orifice (in.) (mm) | Dimensions (in.) (mm) A | Dimensions (in.) (mm) B |
| 10 mm | 5.2 | 0.31 (7.9) | 4.21 (107) | 2.11 (53.5) |
| 12 mm | 5.2 | 0.41 (10.3) | 4.42 (112.2) | 2.21 (56.1) |
| 16 mm | 12.4 | 0.47 (12.0) | 4.42 (112.3) | 2.21 (56.2) |
| 3/8″ | 4 | 0.28 (7.1) | 4.20 (106.6) | 2.10 (53.3) |
| 1/2″ | 7.2 | 0.41 (10.3) | 4.40 (111.8) | 2.20 (55.9) |
| 3/4″ | 7.1 | 0.47 (12.0) | 4.50 (114.3) | 2.46 (62.5) |
| 1″ | 6.5 | 0.47 (12.0) | 4.93 (125.1) | 2.25 (57.1) |
| 3/8″ Female NPT | 11 | – | 4.01 (102) | 2.00 (50.8) |
| 1/2″ Female NPT | 13.8 | 0.47 (12.0) | 4.01 (102) | 2.00 (50.8) |
| 3/4″ Female NPT | 7.8 | – | 4.13 (105) | 2.06 (52.3) |
| 1/2″ Female BSPT | 13.8 | 0.47 (12.0) | 4.01 (102) | 2.00 (50.8) |
