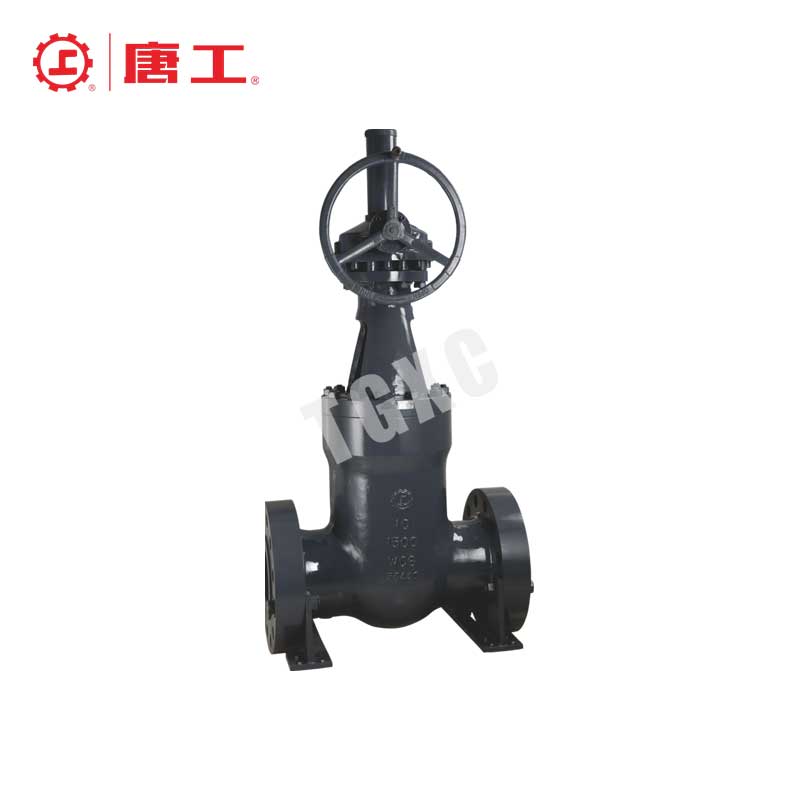

Chrome Molybdenum Steel Gate Valve

Material:Chrome Molybdenum Steel

Size Range:2″ to 24″

Connection Options:Flanged (RF, FF), Butt-Welded, Threaded

Working Pressure:Class 150 to Class 1500

Working Temperature:-29°C to 425°C

Sealing Options:Metal-to-Metal, Soft seal

Manufacturing Method:Cast, Forged

Applicable Medium:Water, Oil, Gas, Steam, Chemical Fluids

Manufacturing Standard:API 600, API 6D or API 598, ASME B16.34

Product Overview

The Chrome Molybdenum Steel Gate Valve is a high-strength valve engineered for demanding applications that require exceptional durability, heat resistance, and pressure handling. Made from chrome molybdenum steel, this valve is designed to withstand high temperatures and harsh environments, making it ideal for critical industrial systems. Its gate design allows for full flow with minimal pressure drop when fully open, ensuring efficient performance in heavy-duty applications.

Product Features

Superior Strength: Constructed from chrome molybdenum steel, offering high tensile strength and resistance to extreme pressure and temperature.

High-Temperature Resistance: Excellent performance in high-heat environments, making it suitable for steam and other high-temperature applications.

Corrosion and Erosion Resistance: Chrome-moly steel provides increased resistance to corrosion and erosion, enhancing the valve’s longevity.

Low Pressure Drop: The gate design provides full bore opening, minimizing pressure loss and ensuring smooth flow.

Secure Sealing: Provides reliable sealing when closed, preventing leaks in critical applications.

Specification Parameters

Structural Length Standard:
ANSI/ASME B16.10

Connection Forms Standards:
Flanged Connections: ASME B16.5 or ASME B16.47 (depending on size and pressure class)
Butt-Welded Connections: ASME B16.25
Threaded Connections (for smaller valves): ASME B1.20.1

Available Sizes (Caliber):
2″-24″

Pressure-Temperature Rating:
ASME B16.34

Pressure Range:
Class 150 to Class 2500

Temperature Range:
-29°C to 425°C depending on material and sealing options

Specification Applications

Industries

Power Generation: Used in high-pressure and high-temperature steam systems in power plants.
Oil and Gas: Suitable for handling high-pressure pipelines in both onshore and offshore operations.
Petrochemical and Chemical Processing: Ideal for environments that require high corrosion resistance and pressure tolerance, such as refining and chemical production.
High-Temperature Industries: Effective in industries like metal processing and heat treatment where high temperatures are standard.
Industrial Boilers: Used to control the flow of steam in boiler systems, thanks to its heat and pressure tolerance.

Valve Actuation

Process Optimization

Precision Engineering

Pipeline Solutions

Industrial Valves
