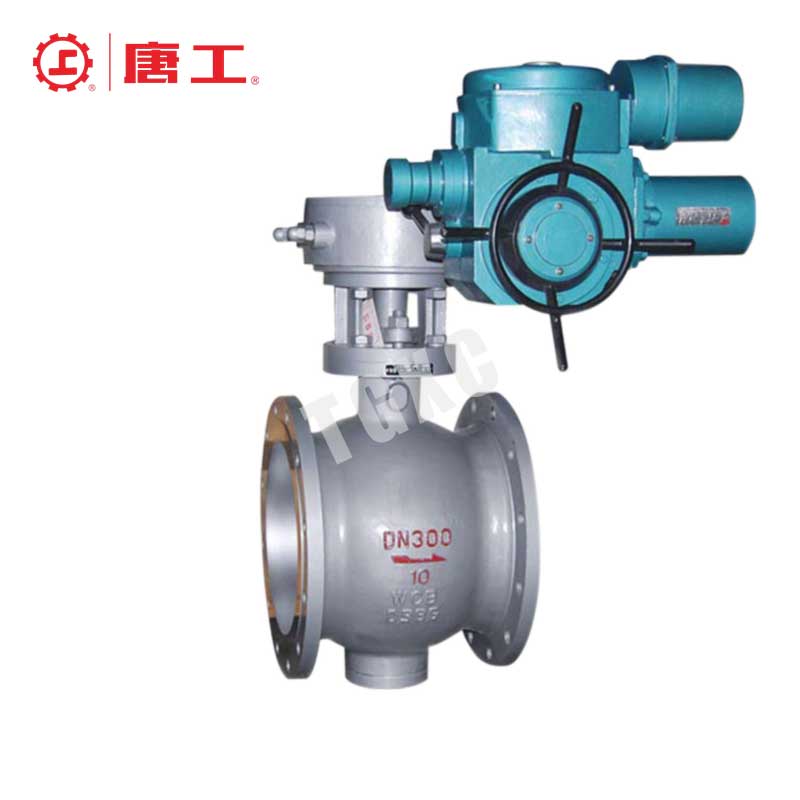

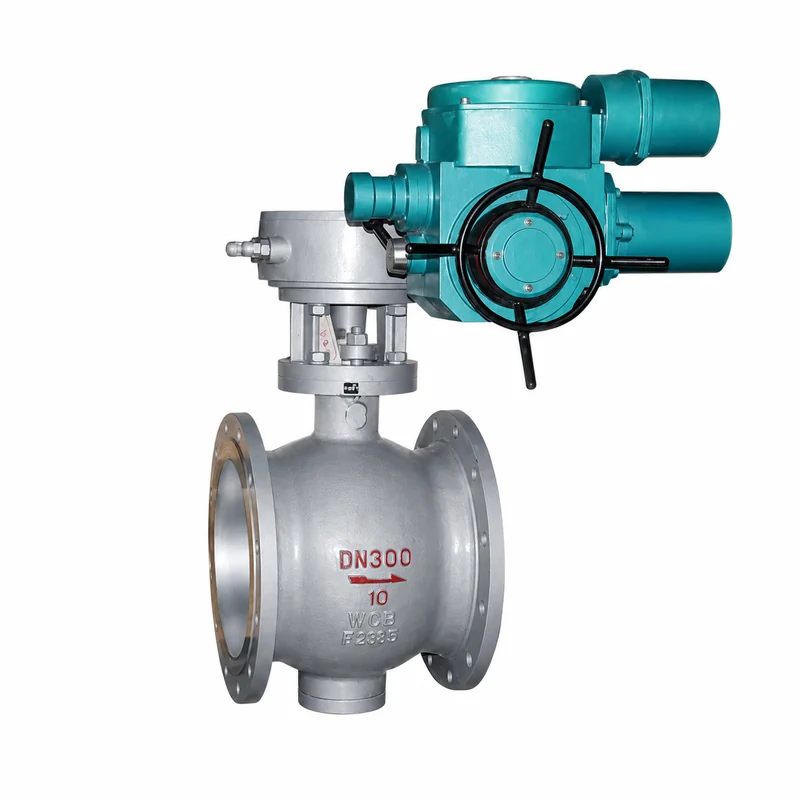

Electric Eccentric Hemisphere Valve

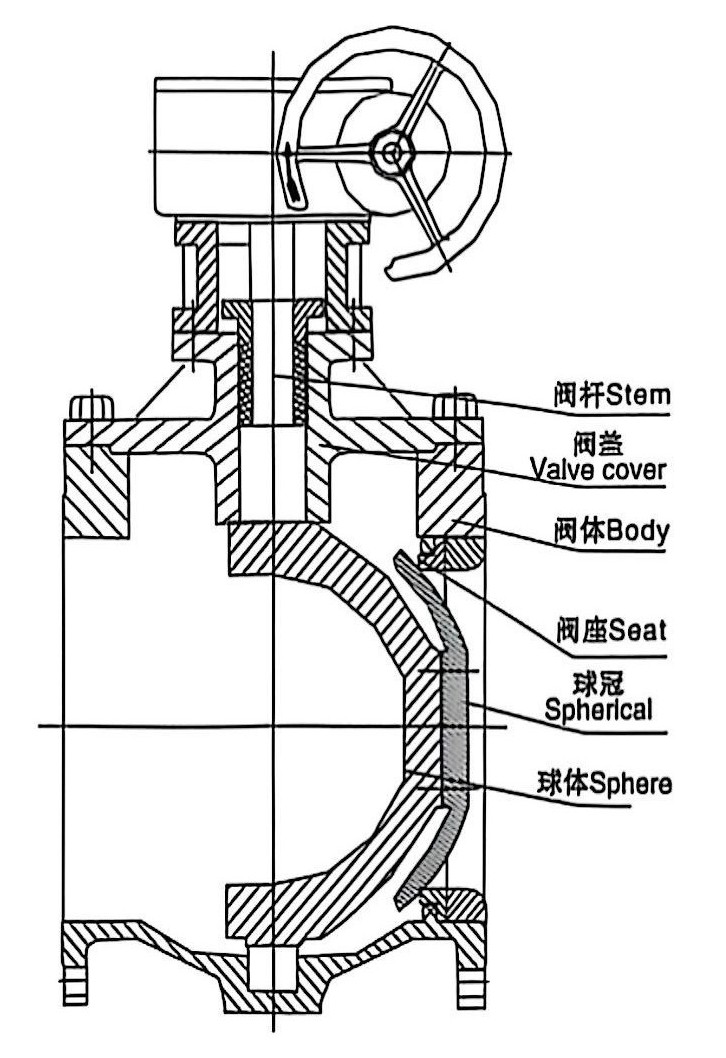

◇Structural characteristics and uses

1.Low Pressure Loss: When fully open, the flow path is straight and unrestricted, resulting in negligible pressure drop. The medium flows smoothly without sediment accumulation inside the valve body.

2.Excellent Wear and Erosion Resistance: The valve’s ball and seat form a shear action during operation, effectively preventing scaling and abrasion. During closing, the ball only contacts the seat at the final stage, minimizing wear. Suitable for conveying media with suspended solids, fine particles, or crystallized substances.

3.Ideal for Slurry and Abrasive Media: The straight-through flow path and eccentric shaft design ensure stable operation with minimal flow resistance and vibration, making it well-suited for harsh slurry applications.

4.Reliable Sealing: Zero leakage under proper working conditions. The ball and seat ensure tight shutoff even under high-pressure, high-frequency cycling conditions, resulting in extended service life.

5.Easy Maintenance: The valve can be serviced without removing it from the pipeline. Seat and packing replacement can be done online, minimizing downtime.

6.Wide Range of Applications: Suitable for water, wastewater, slurry, ash, steam, natural gas, oil, and other industrial fluids, including those with corrosive or abrasive content.
