Size Range: DN50-DN1200
Pressure Range: PN10-PN100 (150LB-1500LB)
End Connection: Flanged
Material: Carbon Steel, Stainless Steel, Alloy Steel
Seals: Metal Seated
Valve Design: Electric, Rising Stem Gate Valve
Face to Face: ANSI B16.10, ISO 5752
End Connection: ANSI B16.5, ISO 7005
Testing & Inspection: API 598, ISO 5208
Suitable Medium: Oil, Gas, Water, Steam, Chemicals

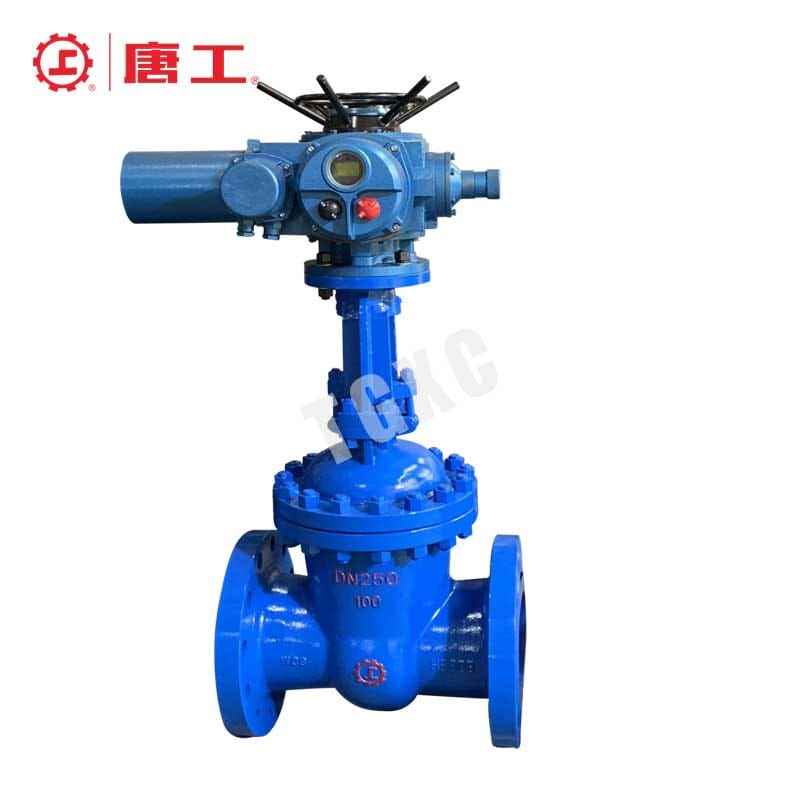

The Electric Flange Gate Valve is built to provide precise and effective flow control in industrial pipelines. With a motorized actuator enabling automated operation, this gate valve ensures superior performance under demanding high-pressure and high-temperature conditions. Its robust design enhances reliability and longevity, while the flanged connection simplifies both installation and maintenance. Well-suited for a wide range of industrial applications, this valve is recognized for its dependable sealing and durable service life.
• Reliable Control: Precise control over flow and shut-off, with options for both ON/OFF and modulating control for all valve types.
• High-Temperature and High-Pressure Resistance: Available in materials and designs suitable for high-temperature and high-pressure environments.
• Wide Range of Applications: Valves for general industrial use, petrochemicals, power plants, water treatment, and specialized environments such as food processing (sanitary valves).
• Compact Designs: Space-saving electric actuators available for specific applications, including fine, small flanged ball valves and thin ball valves.
• Corrosion and Abrasion Resistance: Materials selected for corrosive, abrasive, and highly demanding environments.
Design and Manufacturing Standards: API 600, ISO 10434
Structural Length Standard: ANSI B16.10
Connection Forms Standards: ANSI B16.5, ISO 7005
Available Sizes (Caliber): DN50 to DN1200
Pressure-Temperature Rating:
Standard: ANSI, ISO
Pressure Range: PN10-PN100 (150LB-1500LB)
Temperature Range: -29°C to 425°C
Applications:
o Oil & Gas
o Petrochemical Processing
o Power Generation
o Water Treatment Plants
o HVAC Systems
o Food and Beverage (Sanitary Valves)
o Pharmaceutical Industry
o Chemical Processing
o Steam and Thermal Oil Systems
o Building Automation Systems
Discover our premium valve solutions and boost your efficiency. Contact
us now to find out how we can support your needs with top-quality
products and exceptional service.
