Design and manufacturing:GB/T 12235, API 6D, ASME B16.34
The structural length:GB/T 12221, ASME B16.10
Connection forms: HG/T 20592-20605, GB/T 9112-9124, ASME B16.5
Inspection and test:API 598, GB/T 13927
Caliber:1/2″ ~ 50″ (DN15 ~ DN1250)
Pressure temporature level: GB/T 12224, ASME B16.34
Drive mode:Manual, worm gear, pneumatic, electric, hydraulic etc
Pressure: PN2.5MPa-PN42.0MPa Class150-Class2500

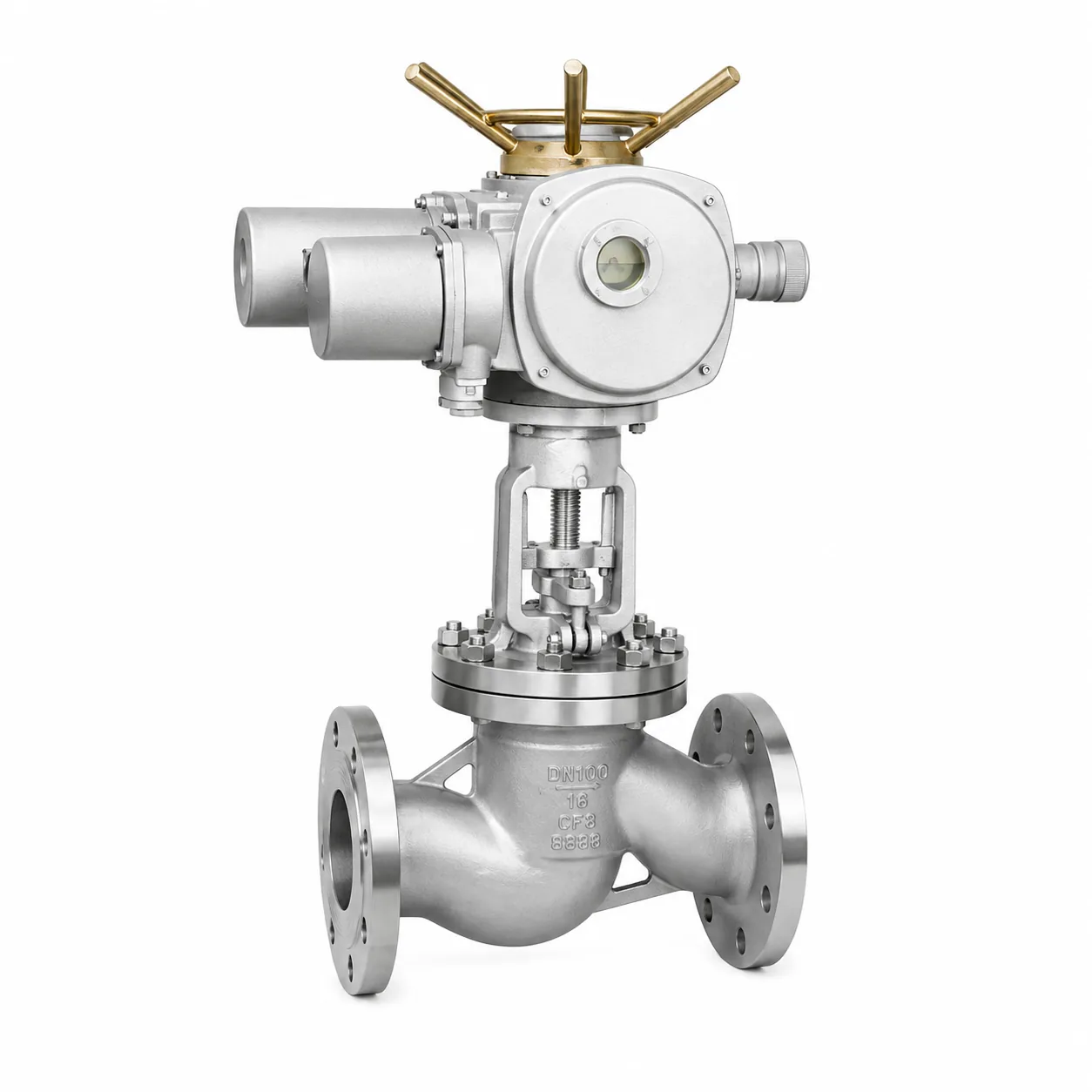

The Electric Globe Valve is a motorized valve designed for precise flow regulation in automated systems. It is commonly used for throttling applications, where the valve’s linear motion and electric actuator provide accurate control over fluid flow. Made from durable materials, this valve is ideal for a variety of industries that require reliable and automated flow control with minimal manual intervention.
Automated Operation: Equipped with an electric actuator for remote and automated control, reducing the need for manual adjustments.
Excellent Flow Control: The globe valve design provides precise throttling and flow regulation, suitable for applications requiring fine control.
Durable Construction: Available in a variety of materials, including stainless steel, carbon steel, and chrome molybdenum, to withstand harsh environments.
Secure Sealing Options: Available with metal-to-metal or soft-seal options to suit different media and temperature requirements.
Multiple Connection Options: Designed to fit a wide range of pipeline configurations with various connection standards.

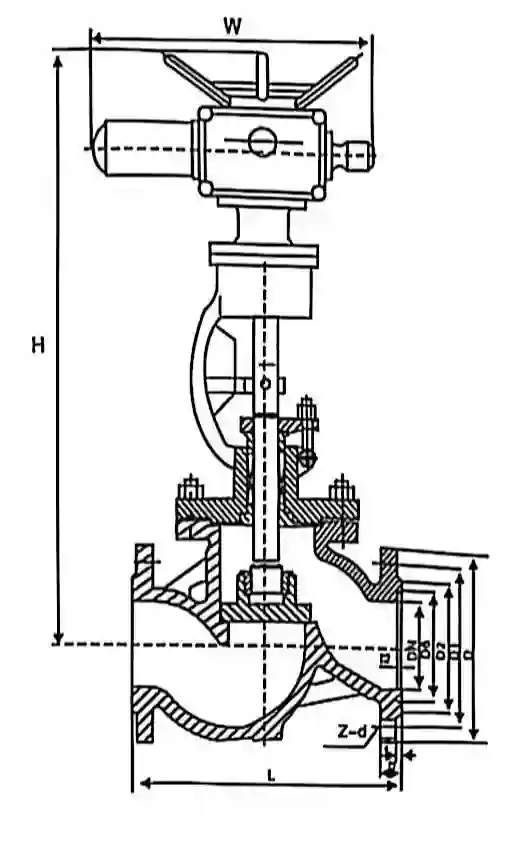

| PN (MPa) | DN (mm) | L | D | D1 | D2 | D6 | b-f | f2 | z–φd | H | H1 | L1 | L2 | Electric Actuator | Weight (Kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1.6 | 50 | 230 | 160 | 125 | 100 | / | 18–3 | / | 4–18 | 645 | 590 | 371 | / | DZW10A | 64.2 |
| 65 | 290 | 180 | 145 | 120 | / | 18–3 | / | 4–18 | 690 | 590 | 371 | / | DZW10A | 71.5 | |
| 80 | 310 | 195 | 160 | 135 | / | 20–3 | / | 8–18 | 715 | 590 | 371 | / | DZW10A | 74 | |
| 100 | 350 | 215 | 180 | 155 | / | 22–3 | / | 8–18 | 770 | 590 | 371 | / | DZW15A | 87 | |
| 125 | 400 | 245 | 210 | 185 | / | 24–3 | / | 8–18 | 780 | 590 | 371 | / | DZW20A | 113 | |
| 150 | 480 | 280 | 240 | 210 | / | 24–3 | / | 8–23 | 810 | 590 | 371 | / | DZW30A | 144.5 | |
| 200 | 600 | 335 | 295 | 265 | / | 26–3 | / | 12–23 | 967 | 810 | 515 | / | DZW45A | 250 | |
| 250 | 650 | 405 | 355 | 320 | / | 30–3 | / | 12–25 | 1143 | 810 | 515 | / | DZW60A | 332 | |
| 300 | 750 | 460 | 410 | 375 | / | 30–4 | / | 12–25 | 1292 | 830 | 540 | / | DZW90 | 465 | |
| 350 | 880 | 520 | 470 | 435 | / | 34–4 | / | 16–26 | 1473 | 935 | 830 | / | DZW120 | 732 | |
| 400 | 980 | 580 | 525 | 485 | / | 36–4 | / | 16–30 | 1755 | 1180 | / | / | DZW180 | 1000 | |
| 450 | 1100 | 640 | 585 | 545 | / | 40–4 | / | 20–30 | 1800 | / | / | / | DZW180 | 1140 | |
| 500 | 1150 | 705 | 650 | 608 | / | 44–4 | / | 20–34 | 2035 | / | / | / | DZW250 | 1480 | |
| 600 | 1355 | 840 | 770 | 718 | / | 48–4 | / | 20–36 | 2527 | / | / | / | DZW350 | 2530 |
| PN (MPa) | DN (mm) | L | D | D1 | D2 | D6 | b-f | f2 | z–φd | H | H1 | L1 | L2 | Electric Actuator | Weight (Kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2.5 | 50 | 230 | 160 | 100 | 100 | / | 20–3 | / | 4–18 | 645 | 590 | 371 | / | DZW10A | 66 |
| 65 | 290 | 180 | 125 | 125 | / | 22–3 | / | 8–18 | 690 | 590 | 371 | / | DZW10A | 74 | |
| 80 | 310 | 195 | 145 | 145 | / | 22–3 | / | 8–18 | 715 | 590 | 371 | / | DZW15A | 78 | |
| 100 | 350 | 230 | 160 | 160 | / | 24–3 | / | 8–23 | 770 | 590 | 371 | / | DZW20A | 101.5 | |
| 125 | 400 | 270 | 188 | 188 | / | 28–3 | / | 8–15 | 780 | 590 | 371 | / | DZW30A | 121 | |
| 150 | 480 | 300 | 218 | 218 | / | 30–3 | / | 8–15 | 875 | 810 | 515 | / | DZW45A | 200 | |
| 200 | 600 | 360 | 278 | 278 | / | 34–3 | / | 12–25 | 967 | 810 | 515 | / | DZW60A | 272 | |
| 250 | 650 | 425 | 332 | 332 | / | 36–3 | / | 12–30 | 1153 | 830 | 540 | / | DZW90 | 380 | |
| 300 | 750 | 485 | 390 | 390 | / | 40–4 | / | 16–30 | 1292 | 830 | 540 | / | DZW120 | 532 | |
| 350 | 850 | 550 | 490 | 448 | / | 44–4 | / | 16–34 | 1615 | / | / | / | DZW180 | 900 | |
| 400 | 980 | 610 | 550 | 505 | / | 48–4 | / | 16–34 | 1755 | / | / | / | DZW180 | 1070 | |
| 450 | 1100 | 660 | 600 | 555 | / | 50–4 | / | 20–34 | 1805 | / | / | / | DZW250 | 1215 | |
| 500 | 1150 | 730 | 660 | 610 | / | 52–4 | / | 20–36 | 2157 | / | / | / | DZW350 | 1640 | |
| 600 | 1355 | 840 | 770 | 718 | / | 56–4 | / | 20–41 | 2527 | / | / | / | DZW500 | 2770 |
| PN (MPa) | DN (mm) | L | D | D1 | D2 | D6 | b-f | f2 | z–φd | H | H1 | L1 | L2 | Electric Actuator | Weight (Kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4.0 | 50 | 230 | 160 | 125 | 100 | 88 | 20–3 | 4 | 4–18 | 645 | 590 | 371 | / | DZW10A | 69 |
| 65 | 290 | 180 | 145 | 125 | 110 | 22–3 | 4 | 4–18 | 690 | 590 | 371 | / | DZW10A | 78 | |
| 80 | 310 | 195 | 145 | 145 | 121 | 22–3 | 4 | 8–18 | 715 | 590 | 371 | / | DZW20A | 100 | |
| 100 | 350 | 230 | 160 | 160 | 150 | 24–3 | 4 | 8–23 | 770 | 590 | 371 | / | DZW30A | 118 | |
| 125 | 400 | 270 | 188 | 188 | 176 | 28–3 | 4.5 | 8–25 | 782 | 810 | 371 | / | DZW45A | 199 | |
| 150 | 480 | 300 | 218 | 218 | 204 | 30–3 | 4.5 | 8–25 | 875 | 810 | 515 | / | DZW60A | 210 | |
| 200 | 600 | 375 | 282 | 282 | 260 | 38–3 | 4.5 | 12–30 | 1160 | 810 | 540 | / | DZW90 | 330 | |
| 250 | 750 | 445 | 385 | 345 | 313 | 42–3 | 4.5 | 12–34 | 1118 | / | / | / | DZW120 | 407 | |
| 300 | 850 | 510 | 450 | 408 | 364 | 46–4 | / | 16–34 | 1305 | / | / | / | DZW180 | 680 | |
| 350 | 980 | 570 | 510 | 465 | 422 | 52–4 | 5 | 16–34 | 1445 | / | / | / | DZW180 | 965 | |
| 400 | 1100 | 655 | 585 | 535 | 474 | 58–4 | 5 | 16–41 | 1595 | / | / | / | DZW250 | 1155 | |
| 450 | 1150 | 680 | 610 | 560 | 524 | 60–4 | 5 | 20–41 | 1907 | / | / | / | DZW500 | 1770 | |
| 500 | 1355 | 755 | 670 | 612 | 576 | 62–4 | 5 | 20–42 | 1977 | / | / | / | DZW500 | 3010 |
| PN (MPa) | DN (mm) | L | D | D1 | D2 | D6 | D8 | b-f | f2 | z–φd | H | H1 | L1 | L2 | Electrical Equipment | Weight (Kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6.4 | 50 | 300 | 175 | 135 | 105 | / | 88 | 26–3 | / | 8–23 | 710 | 590 | 371 | / | DZW10A | 64 |
| 65 | 340 | 200 | 160 | 130 | / | 110 | 28–3 | / | 8–23 | 750 | 590 | 371 | / | DZW15A | 77 | |
| 80 | 380 | 210 | 170 | 140 | / | 121 | 30–3 | / | 8–23 | 785 | 590 | 371 | / | DZW45A | 77 | |
| 100 | 400 | 250 | 200 | 168 | / | 148 | 34–3 | / | 8–34 | 890 | 510 | 515 | / | DZW60A | 194 | |
| 125 | 500 | 295 | 240 | 202 | / | 176 | 38–3 | / | 8–34 | 1066 | 830 | 540 | / | DZW60A | 243 | |
| 150 | 550 | 340 | 280 | 240 | / | 205 | 38–3 | / | 8–34 | 1213 | 830 | 540 | / | DZW90 | 296 | |
| 200 | 650 | 405 | 345 | 300 | / | 260 | 44–4 | / | 12–34 | 1340 | 830 | 540 | / | DZW120 | 460 | |
| 250 | 775 | 470 | 400 | 352 | / | 313 | 48–3 | / | 12–36 | / | / | / | / | DZW180 | 600 | |
| 300 | 900 | 530 | 460 | 412 | / | 364 | 54–4 | / | 16–36 | / | / | / | / | DZW250 | 780 |
| PN (MPa) | DN (mm) | L | D | D1 | D2 | D6 | D8 | b–f | f2 | z–φd | H | H1 | L1 | L2 | Electrical Equipment | Weight (Kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10.0 | 50 | 300 | 195 | 145 | 112 | / | 88 | 28–3 | / | 4–25 | 714 | 590 | 371 | / | DZW20A | 81 |
| 65 | 340 | 220 | 170 | 138 | / | 110 | 32–3 | / | 8–25 | 734 | 590 | 371 | / | DZW30A | 102 | |
| 80 | 380 | 230 | 180 | 148 | / | 121 | 34–3 | / | 8–25 | 875 | 810 | 515 | / | DZW45A | 175 | |
| 100 | 430 | 265 | 210 | 172 | / | 160 | 38–3 | / | 8–30 | 950 | 810 | 515 | / | DZW60A | 194 | |
| 125 | 500 | 310 | 250 | 210 | / | 190 | 42–3 | / | 8–34 | 1140 | 830 | 540 | / | DZW90 | 285 | |
| 150 | 550 | 350 | 290 | 250 | / | 205 | 46–3 | / | 12–34 | 1240 | 830 | 540 | / | DZW120 | 450 | |
| 200 | 650 | 430 | 360 | 312 | / | 275 | 54–3 | / | 12–41 | 1425 | 830 | 565 | / | DZW180 | 850 | |
| 250 | 775 | 505 | 430 | 382 | / | 313 | 60–3 | / | 12–41 | / | / | / | / | DZW250 | 1040 | |
| 300 | 900 | 585 | 500 | 442 | / | 364 | 70–4 | / | 16–42 | / | / | / | / | DZW300 | 1230 |
| PN (MPa) | DN (mm) | L | D | D1 | D2 | D6 | D8 | b–f | f2 | z–φd | H | H1 | L1 | L2 | Electrical Equipment | Weight (Kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 16.0 | 50 | 300 | 215 | 165 | 132 | 88 | / | 36–3 | 4 | 8–25 | 562 | 590 | 371 | / | DZW30A | 92 |
| 65 | 340 | 245 | 190 | 152 | 110 | / | 44–3 | 4 | 8–25 | 743 | 810 | 540 | / | DZW45A | 165 | |
| 80 | 380 | 260 | 205 | 168 | 121 | / | 46–3 | 4.5 | 8–30 | 820 | 830 | 540 | / | DZW90 | 210 | |
| 100 | 430 | 300 | 240 | 200 | 150 | / | 48–3 | 4.5 | 8–34 | 935 | 830 | 540 | / | DZW120 | 238 | |
| 125 | 500 | 355 | 285 | 238 | 176 | / | 60–3 | 4.5 | 8–41 | 1180 | 870 | 565 | / | DZW180 | 490 | |
| 150 | 550 | 390 | 318 | 270 | 204 | / | 66–3 | 4.5 | 12–41 | 1290 | 870 | 565 | / | DZW250 | 674 | |
| 200 | 650 | 480 | 400 | 345 | 260 | / | 78–3 | 4.5 | 12–48 | 1495 | 1075 | 710 | / | DZW350 | 1120 |
Water Treatment: Used in water supply and treatment systems for controlled flow management.
HVAC Systems: Regulates flow in heating, ventilation, and air conditioning applications.
Power Generation: Suitable for steam, cooling water, and other process lines in power plants.
Petrochemical and Chemical Industries: Controls the flow of chemicals, gases, and other process fluids.
Pharmaceutical and Food Processing: Provides precise flow control in processes that require sanitary conditions.
