Size Range: DN50 to DN1200 (2″ to 48″)
Pressure Range: Class 150 to Class 2500
End Connection: Flanged RF, RTJ (Raised Face, Ring-Type Joint)
Material: Carbon Steel (ASTM A216 WCB), Stainless Steel (ASTM A351 CF8/CF8M), Alloy Steel
Seals: Metal-to-Metal or Graphite Seals
Valves Design: Rising Stem, Outside Screw & Yoke (OS&Y), Bolted Bonnet
Face to Face: As per ANSI/ASME B16.10
End Connection: Flanged (RF/RTJ) as per ANSI/ASME B16.5
Testing & Inspection: API 598, ISO 5208
Suitable Medium: Oil, Gas, Steam, High-Temperature Fluids

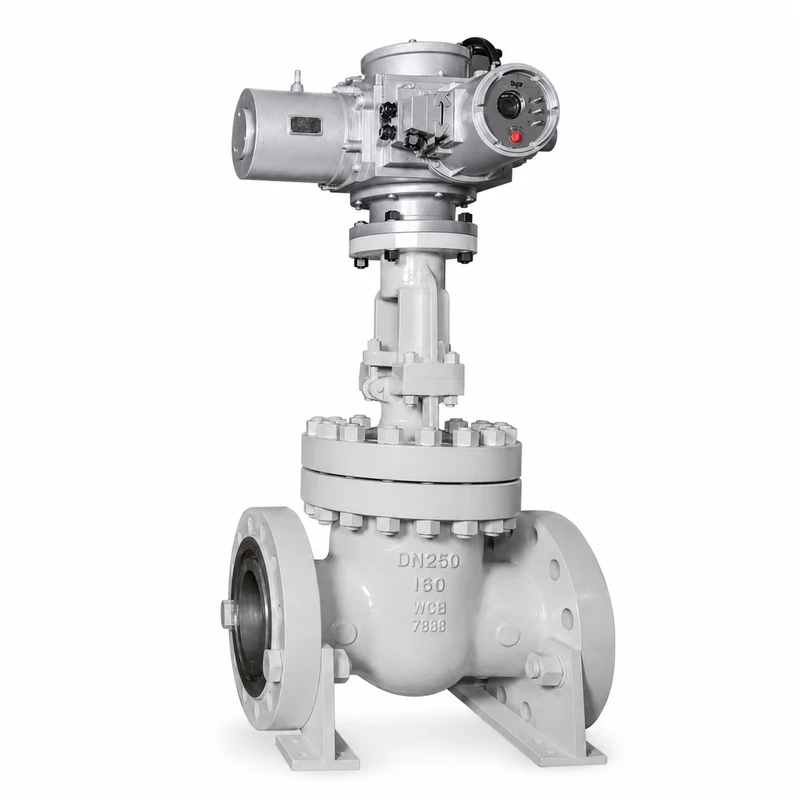

The Electric High Pressure Flange Gate Valve is designed for efficient flow isolation in high-pressure and high-temperature systems. With an electric actuator for automated control, it ensures precise and reliable operation in industrial applications. Built with durable materials, this valve is ideal for heavy-duty environments such as oil refineries, power plants, and chemical processing facilities.
Motorized Control: Equipped with an electric actuator for automated operation, reducing manual intervention.
High-Pressure Capability: Designed for Class 150 to Class 2500 pressure ratings.
Durable Materials: Constructed from carbon steel, stainless steel, or alloy steel for high performance in extreme conditions.
Reliable Sealing: Metal-to-metal or graphite seals ensure leak-proof performance under high temperatures and pressures.
Rising Stem Design: Provides a clear visual indicator of valve position.
Bolted Bonnet Construction: Ensures secure sealing and easy maintenance.
Corrosion-Resistant Coating: Suitable for use in harsh and corrosive environments.
Design and Manufacturing Standards:
Structural Length Standard:
Connection Forms Standards:
Available Sizes (Caliber):
Pressure-Temperature Rating:
Oil and Gas Pipelines
Petrochemical and Chemical Industries
Power Generation Plants
Refining Units
Steam and High-Temperature Applications
Water Treatment Facilities
