Size Range: DN25-DN150
Pressure Range: PN6-PN16
End Connection: Clamp, Welded
Material: Stainless Steel (SS304, SS316, SS316L)
Seals: Food-Grade Silicone, EPDM, PTFE
Valves Design: Electric Sanitary Butterfly Valve
Face to Face: ISO 5752
End Connection: ISO 1127, DIN 11850
Testing & Inspection: API 598, ISO 5208
Suitable Medium: Milk, Juice, Beer, Water, Pharmaceutical Fluids

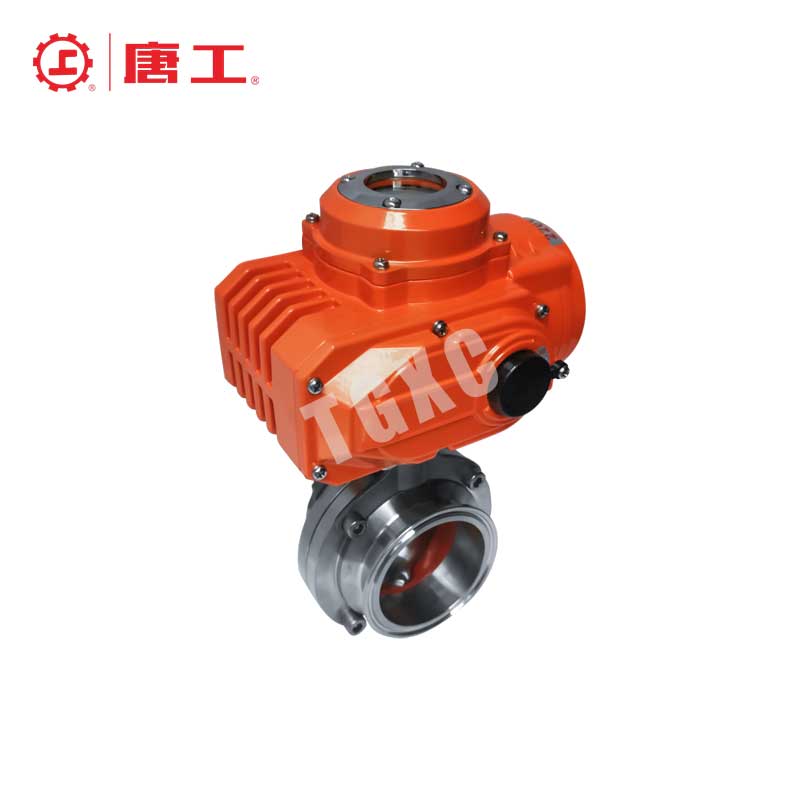

The Electric Sanitary Butterfly Valve is designed specifically for the food, beverage, and pharmaceutical industries. Its electric actuator ensures precise and automated control, while its compact and hygienic design minimizes the risk of contamination. Made from high-quality stainless steel with food-grade seals, this valve offers reliability and efficiency in sanitary applications.
Hygienic Design: Ensures compliance with sanitary standards in sensitive industries.
Automated Operation: Equipped with a motorized actuator for precise flow control.
Food-Grade Seals: Uses EPDM, Silicone, or PTFE to prevent contamination.
Corrosion Resistant: High-quality stainless steel construction enhances durability.
Ease of Cleaning: Designed for quick disassembly and cleaning, ideal for CIP/SIP systems.
Versatile Connection: Clamp or welded end connections ensure compatibility with different setups.
Design and Manufacturing Standards: ISO 5211, DIN 11850
Structural Length Standard: ISO 5752
Connection Forms Standards: ISO 1127, DIN 11850
Available Sizes (Caliber): DN25-DN150
Pressure-Temperature Rating:
Standard: API, ISO
Pressure Range: PN6-PN16
Temperature Range: -20°C to 150°C
Food and Beverage Industry (Milk, Juice, Beer)
Pharmaceutical Fluids Handling
Cosmetic Industry
Water Treatment for Sensitive Processes
Biotechnology
