Size Range: DN50 to DN800 (2″ to 32″)
Pressure Range: PN10, PN16, PN25 (Class 150)
End Connection: Flanged RF (Raised Face)
Material: Ductile Iron (GGG50), Cast Iron (GG25), Carbon Steel
Seals: EPDM, NBR (Soft Seal)
Valves Design: Rising Stem, Non-Rising Stem, Bolted Bonnet, Motorized Actuator Operated
Face to Face: As per EN 558-1, ISO 5752
End Connection: Flanged as per EN 1092-2 or ANSI B16.1
Testing & Inspection: EN 12266-1, ISO 5208, API 598
Suitable Medium: Water, Wastewater, Neutral Liquids

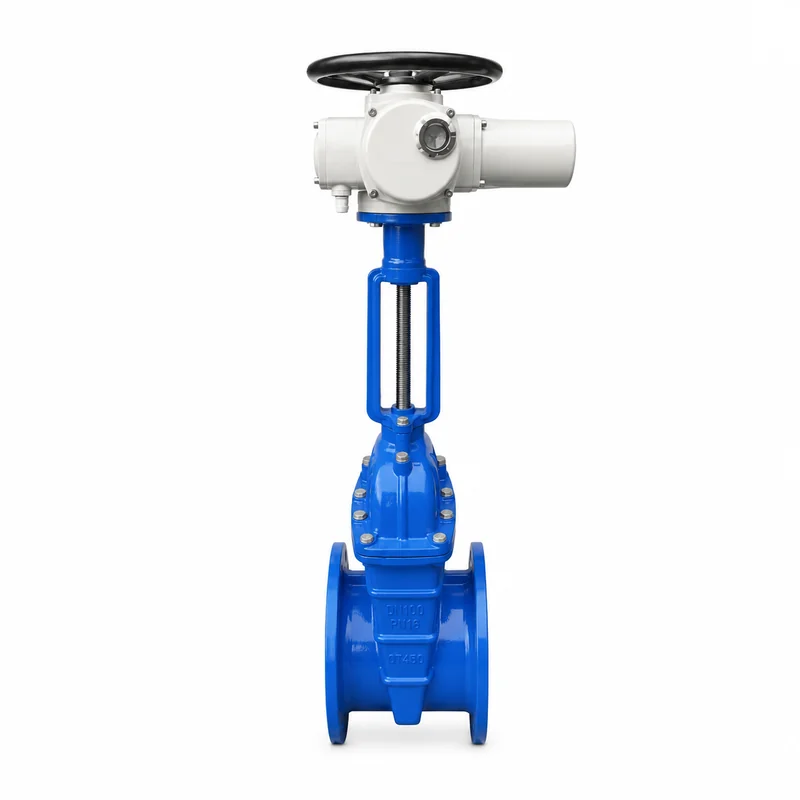

The Electric Soft Seal Flange Gate Valve offers a reliable and efficient solution for flow isolation in low-pressure piping systems. This valve features a soft seal for enhanced leak-proof performance and is equipped with a motorized actuator for automated control. Its robust design and high-quality materials make it suitable for applications in municipal water supply, wastewater treatment, and industrial systems.
Motorized Actuation: Provides automated and remote operation for improved efficiency.
Soft Seal Technology: Ensures zero leakage for water and neutral liquids.
Compact Design: Ideal for installations in limited spaces.
Durable Construction: Made from ductile or cast iron for long-lasting performance.
Standardized Flanged Connections: Facilitates easy installation and maintenance.
Corrosion Resistance: Coatings available for enhanced durability in harsh environments.
Wide Application: Compatible with both clean and slightly contaminated media.
Design and Manufacturing Standards:
Structural Length Standard:
Connection Forms Standards:
Available Sizes (Caliber):
Pressure-Temperature Rating:
Municipal Water Distribution
Sewage and Wastewater Treatment
Agricultural Irrigation Systems
Industrial Cooling and Water Systems
Fire Protection Networks
