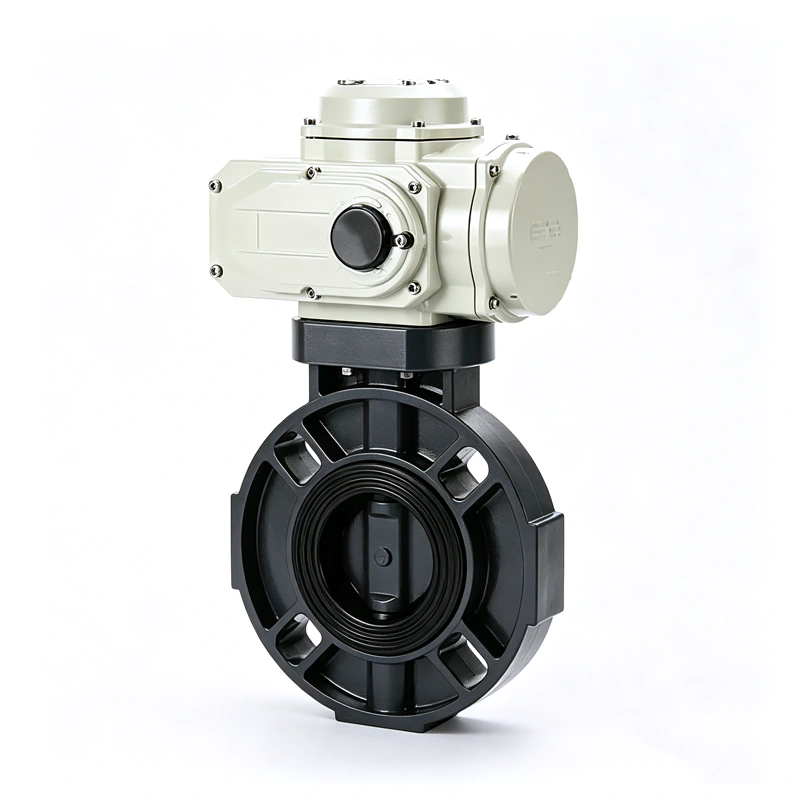

Electric UPVC Wafer Butterfly Valve

Valve Type: Fluorine-lined butterfly valve
Size Range: DN40 to DN1200
Pressure Rating: PN1.6 MPa
Temperature Range: -80°C to 200°C
Actuator: Electric actuator

Product Overview

The Electric UPVC Wafer Butterfly Valve is an actuated angle-stroke valve for efficient throttling or shut-off in compact piping systems. The rotary motion design provides fast response, low operating torque, and dependable sealing for water, gas, steam, oil, and chemical services. It is a practical option for projects requiring Electric UPVC Wafer Butterfly Valve with pneumatic or electric automation.

Product Features

Quarter-turn butterfly design provides compact installation and fast response.
Low operating torque supports efficient pneumatic or electric actuation.
Soft-seat, PTFE-lined, or metal-seat configurations are available by service condition.
Suitable for on/off isolation or modulating control with a positioner.
Valve materials and connection styles can be customized for industrial pipelines.

Specification Parameters

Item	Specification
Valve Type	Fluorine-lined butterfly valve
Size Range	DN40 to DN1200
Pressure Rating	PN1.6 MPa
Temperature Range	-80°C to 200°C
Body Materials	UPVC
Seat / Lining Materials	PTFE/FEP/PFA fluoroplastic lining by corrosive-media service
Flow Characteristic	Approximately equal percentage
Leakage Class	Class V or VI
Body Style	Wafer or flanged quarter-turn butterfly body
End Connection	Wafer
Testing Standard	GB/T 4213-2008; ASME B16.104-1998 / ANSI FCI 70-2 where applicable
Actuator / Control	Electric actuator

Specification Applications

Water and wastewater treatment pipelines
HVAC chilled water and heating water systems
Chemical, oil, and gas process isolation or throttling
Compressed air, gas, and utility service pipelines
Industrial automation systems requiring compact rotary valves
