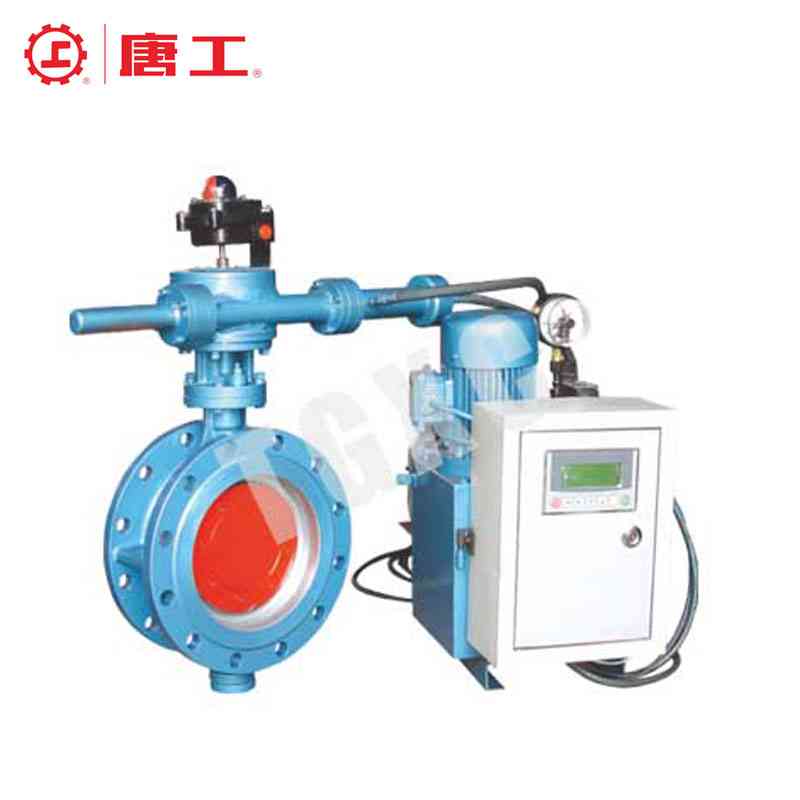

hydraulic actuated butterfly valve with control cabinet

Electro Hydraulic Linkage Butterfly Valve

Carbon Steel (WCB, WCC for strength), Stainless Steel (SS304, SS316 for corrosion resistance)

Size Range:DN50-DN4000

Connection Options:Flanged

Working Pressure:Up to 300 psi (20.7 bar)

Working Temperature:-29°C to 200°C

Sealing Options:EPDM, PTFE, Metal-to-Metal, NBR, FKM

Manufacturing Standard:GB / T 12238-2008

Product Overview

The Electro Hydraulic Linkage Butterfly Valve is an advanced flow control device designed for precision regulation in high-demand applications. Combining electrical and hydraulic systems, it offers enhanced control and stability, making it ideal for automated operations in industries such as oil & gas, power plants, and water treatment. The electro-hydraulic linkage mechanism ensures swift, reliable actuation with minimal manual intervention, even in high-pressure environments. This butterfly valve is known for its durability, smooth operation, and efficient performance, providing precise flow control for critical processes.

Product Features

The Electro-Hydraulic Locking Butterfly Valve is designed with a hydraulic-driven opening mechanism and a gravity-assisted closing system. Once installed, it can function as both a gate (or butterfly) valve and a check valve, featuring minimal flow resistance. The closing process is split into two phases: an initial rapid close followed by a slower, controlled close. Both timing and angles for these stages can be adjusted to suit user requirements. The pressure-based hydraulic system ensures automatic pressure retention and reset, equipped with dual locking for added security. The accumulator version opens using a pump and closes through the accumulator, eliminating the need for counterweights, which allows for a more compact and space-efficient design. Electrical control options include standard or PLC controls, enabling local, remote, or computer-based operation with linkage functionality.

Specification Parameters

Structural Length Standard:
GB / T 12221-2005

Connection Forms Standards:
GB / T 9113

Available Sizes (Caliber):
DN50-DN4000

Pressure-Temperature Rating:
Class 150, 300 as per API 609 and ASME B16.47

Pressure Range:
Up to 300 psi depending on size and material

Temperature Range:
-29°C to 200°C depending on material and sealing options



Main performance specifications

Nominal diameter

DN(mm)

50-4000

Nominal pressure

PN(MPa)

1.0

1.6

2.5

test pressure

Strength test

1.5

2.4

3.75

Seal test

1.1

1.76

2.75

Gas seal test

0.6

0.6

0.6



Product Parts Materials

Model

D743H-16

D743W-16P

D743W-16R

Work pressure(MPa)

1.6

proper temperature(℃)

≤425

≤200

  Suitable media

 Water, oil or non-corrosive media

Nitric acid medium

  Acetic acid medium

  Material

 Body, disc

WCB

CF8/304

CF3M/316L

  Valve stem

2Cr13

304

316L

Body sealing surface

  Surfacing507

Butterfly sealing surface

304+flexible graphite

304+PTFE

304+PTFE

Filler

Flexible graphite

PTFE

PTFE



The main shape and connection size

Electro Hydraulic Linkage Butterfly Valve Diagram

PN

DN

L

D

D1

D2

Z-d

b

f

H

H0

1.0

50

108

165

125

99

4-18

20

2

170

130

1.0

65

112

185

145

118

4-18

20

2

170

145

1.0

80

114

200

160

132

8-18

20

2

230

152

1.0

100

127

220

180

156

8-18

22

2

320

192

1.0

125

140

250

210

184

8-18

22

2

345

200

1.0

150

140

285

240

211

8-22

24

2

385

230

1.0

200

152

340

295

266

8-22

24

2

471

297

1.0

250

165

405

355

319

12-22

26

2

533

327

1.0

300

178

445

400

370

12-22

26

2

606

364

1.0

350

190

505

460

429

16-22

26

2

694

404

1.0

400

216

565

515

480

16-26

26

2

757

444

1.0

450

222

615

565

530

20-26

28

2

814

472

1.0

500

229

670

620

582

20-26

28

2

902

522

1.0

600

267

780

725

682

20-30

34

2

1048

590

1.0

700

292

895

840

794

24-30

34

5

1277

810

1.0

800

318

1015

950

901

24-33

36

5

1385

844

1.0

900

330

1115

1050

1001

28-33

38

5

1490

890

1.0

1000

410

1230

1160

1112

28-36

38

5

1620

950

1.6

50

108

165

125

99

4-18

20

2

170

130

1.6

65

112

185

145

118

4-18

20

2

170

145

1.6

80

114

200

160

132

8-18

20

2

230

152

1.6

100

127

220

180

156

8-18

22

2

320

192

1.6

125

140

250

210

184

8-18

22

2

345

200

1.6

150

140

285

240

211

8-22

24

2

385

230

1.6

200

152

340

295

266

12-22

24

2

471

297

1.6

250

165

405

355

319

12-26

26

2

533

327

1.6

300

178

460

410

370

12-26

28

2

606

364

1.6

350

190

520

470

429

16-26

30

2

694

404

1.6

400

216

580

525

480

16-30

32

2

757

444

1.6

450

222

640

585

548

20-30

40

2

814

472

1.6

500

229

715

650

609

20-33

44

2

902

522

1.6

600

267

840

770

720

20-36

54

2

1048

590

1.6

700

292

910

840

794

24-36

40

5

1277

810

1.6

800

318

1025

950

901

24-39

42

5

1385

844

1.6

900

330

1125

1050

1001

28-39

44

5

1490

890

1.6

1000

410

1225

1170

1112

28-42

46

5

1620

950

2.5

50

108

165

125

99

4-18

20

2

170

130

2.5

65

112

185

145

118

8-18

22

2

265

210

2.5

80

114

200

160

132

8-18

24

2

310

233

2.5

100

127

235

190

156

8-22

24

2

343

242

2.5

125

140

270

220

184

8-26

26

2

385

254

2.5

150

140

300

250

211

8-26

28

2

445

580

2.5

200

152

360

310

274

12-26

30

2

510

297

2.5

250

165

425

370

330

12-30

32

2

569

339

2.5

300

178

485

430

389

16-30

34

2

653

375

2.5

350

190

555

490

448

16-33

38

2

730

420

2.5

400

216

620

550

503

16-36

40

2

810

463

2.5

450

222

670

600

548

20-36

46

2

850

495

2.5

500

229

730

660

609

20-36

48

2

940

566

2.5

600

267

845

770

720

20-39

58

2

1150

630

2.5

700

292

960

875

820

24-42

58

5

1195

727

2.5

800

318

1085

990

609

24-36

58

5

1268

810
