Model: AVP8700
Motion Type: Linear Stroke / Rotary Stroke
Acting Type: Single Acting / Double Acting
Communication: Standard / HART Optional
Position Output: 4–20mA Current Output Optional
Switch Output: Dual Electronic Switch Output Optional
Gauge Assembly: Standard Gauge / Stainless Steel Gauge Optional
Housing Option: Standard Housing / Stainless Steel Housing Optional
Application: Pneumatic Control Valve Automation

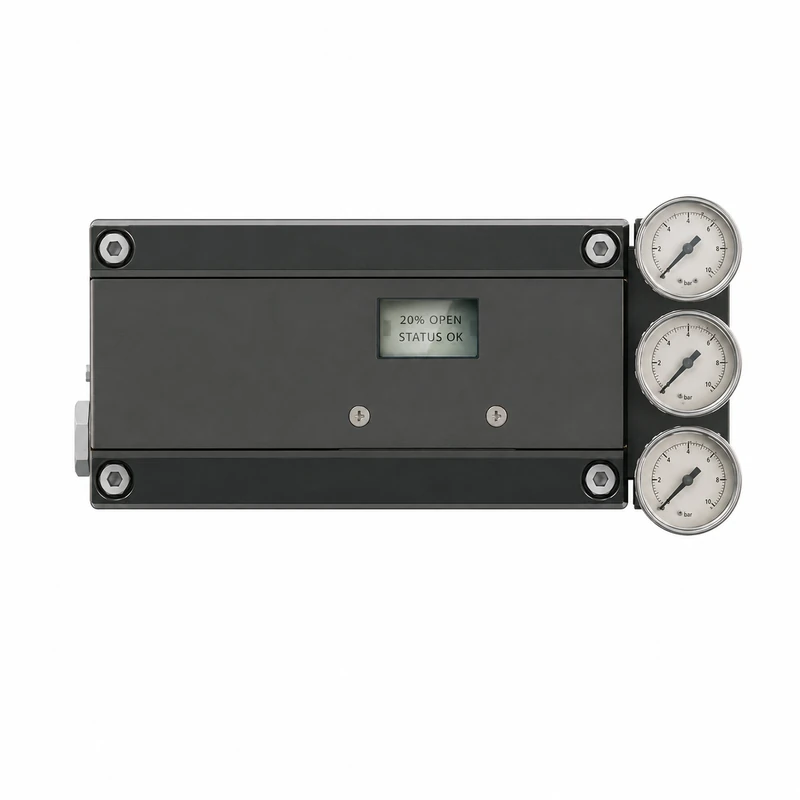

The Explosion-proof Valve Positioner is designed for pneumatic control valve automation in hazardous industrial areas. It receives the control signal from the control system and adjusts the air output to the pneumatic actuator, helping the valve reach the required opening position accurately.
This AVP8700 explosion-proof valve positioner is suitable for linear stroke and rotary stroke pneumatic actuators, including single-acting and double-acting actuator configurations. It can be used on pneumatic control valves, pneumatic ball valves, pneumatic butterfly valves, and other automated valve packages.
The positioner supports optional HART communication, 4–20mA valve position transmitter output, dual electronic switch output, and pressure gauge assembly options. Explosion-proof versions are available for gas and dust hazardous areas, making it suitable for oil and gas, chemical, power, water treatment, and other process industries.
Explosion-proof Design for Hazardous Areas
The valve positioner is available with explosion-proof configurations for gas and gas/dust hazardous environments, suitable for industrial valve automation in demanding areas.
Suitable for Linear and Rotary Actuators
The positioner can be used with both linear stroke and rotary stroke pneumatic actuators, making it suitable for control valves, ball valves, and butterfly valves.
Single Acting and Double Acting Options
It supports both single-acting and double-acting pneumatic actuator operation, covering common control valve automation requirements.
Optional HART Communication
The HART communication option allows easier commissioning, signal monitoring, and integration with plant control systems.
Optional 4–20mA Position Feedback
The valve position transmitter output option provides a 4–20mA feedback signal for valve position monitoring.
Dual Electronic Switch Output Optional
The optional two-way electronic switch output supports valve open/close position indication and remote status feedback.
Pressure Gauge Assembly Options
Standard pressure gauge assembly and stainless steel pressure gauge assembly options are available for field air pressure monitoring.
Flexible Connection Options
The positioner supports multiple power and air connection combinations, including M20 × 1.5, 1/2 NPT, G1/4, and 1/4 NPT.
| Item | Specification |
|---|---|
| Product Name | Explosion-proof Valve Positioner |
| Model | AVP8700 |
| Product Type | Pneumatic Valve Positioner |
| Safety Position | Reset / Hold Position |
| Motion Type | Linear Stroke / Rotary Stroke |
| Acting Type | Single Acting / Double Acting |
| Explosion-proof Type | Gas Explosion-proof / Intrinsically Safe / Gas and Dust Explosion-proof Options |
| Communication | None / HART Communication |
| Position Switch Output | None / Dual Electronic Switch Output |
| Valve Position Transmitter Output | None / 4–20mA Current Output |
| Pressure Gauge Assembly | None / Standard Pressure Gauge / Stainless Steel Pressure Gauge |
| Optional Housing | Standard Housing / Stainless Steel Housing |
| Power Connection Options | M20 × 1.5 / 1/2 NPT |
| Air Connection Options | G1/4 / 1/4 NPT |
| Applicable Actuator | Pneumatic Linear Actuator / Pneumatic Rotary Actuator |
| Applicable Valve Type | Control Valve, Ball Valve, Butterfly Valve, Globe Control Valve |
| Installation Type | Mounted on Pneumatic Actuator |
| Application Area | Hazardous Area Valve Automation |
| Code Category | Code | Description |
|---|---|---|
| Safety Position | 0 | Reset |
| Safety Position | 1 | Hold Position |
| Motion Type | L | Linear Stroke |
| Motion Type | R | Rotary Stroke |
| Acting Type | 1 | Single Acting |
| Acting Type | 2 | Double Acting |
| Explosion-proof Option | D | China Explosion-proof, Gas Flameproof |
| Explosion-proof Option | E | China Explosion-proof, Gas Intrinsically Safe |
| Explosion-proof Option | F | IECEx Gas Flameproof |
| Explosion-proof Option | P | IECEx Gas / Dust Flameproof |
| Explosion-proof Option | B | High Temperature IECEx Gas Flameproof |
| Explosion-proof Option | A | High Temperature IECEx Gas / Dust Flameproof |
| Explosion-proof Option | 1 | High Temperature China Explosion-proof, Gas Flameproof |
| Explosion-proof Option | 2 | High Temperature China Explosion-proof, Gas / Dust Flameproof |
| Explosion-proof Option | 3 | Low Temperature China Explosion-proof, Gas Flameproof |
| Explosion-proof Option | 4 | Low Temperature IECEx Gas Flameproof |
| Communication | 0 | None |
| Communication | H | HART Communication |
| Position Switch Output | 0 | None |
| Position Switch Output | 1 | Dual Electronic Switch Output |
| Pressure Gauge Assembly | 0 | None |
| Pressure Gauge Assembly | 1 | With Pressure Gauge Assembly |
| Pressure Gauge Assembly | 2 | With Stainless Steel Pressure Gauge Assembly |
| Optional Feature | 0 | No Additional Option |
| Optional Feature | S | Stainless Steel Housing |
| Position Transmitter Output | 0 | None |
| Position Transmitter Output | F | 4–20mA Current Output |
| Power / Air Connection | G | M20 × 1.5 / G1/4 |
| Power / Air Connection | N | M20 × 1.5 / 1/4 NPT |
| Power / Air Connection | M | 1/2 NPT / 1/4 NPT |
| Power / Air Connection | P | 1/2 NPT / G1/4 |

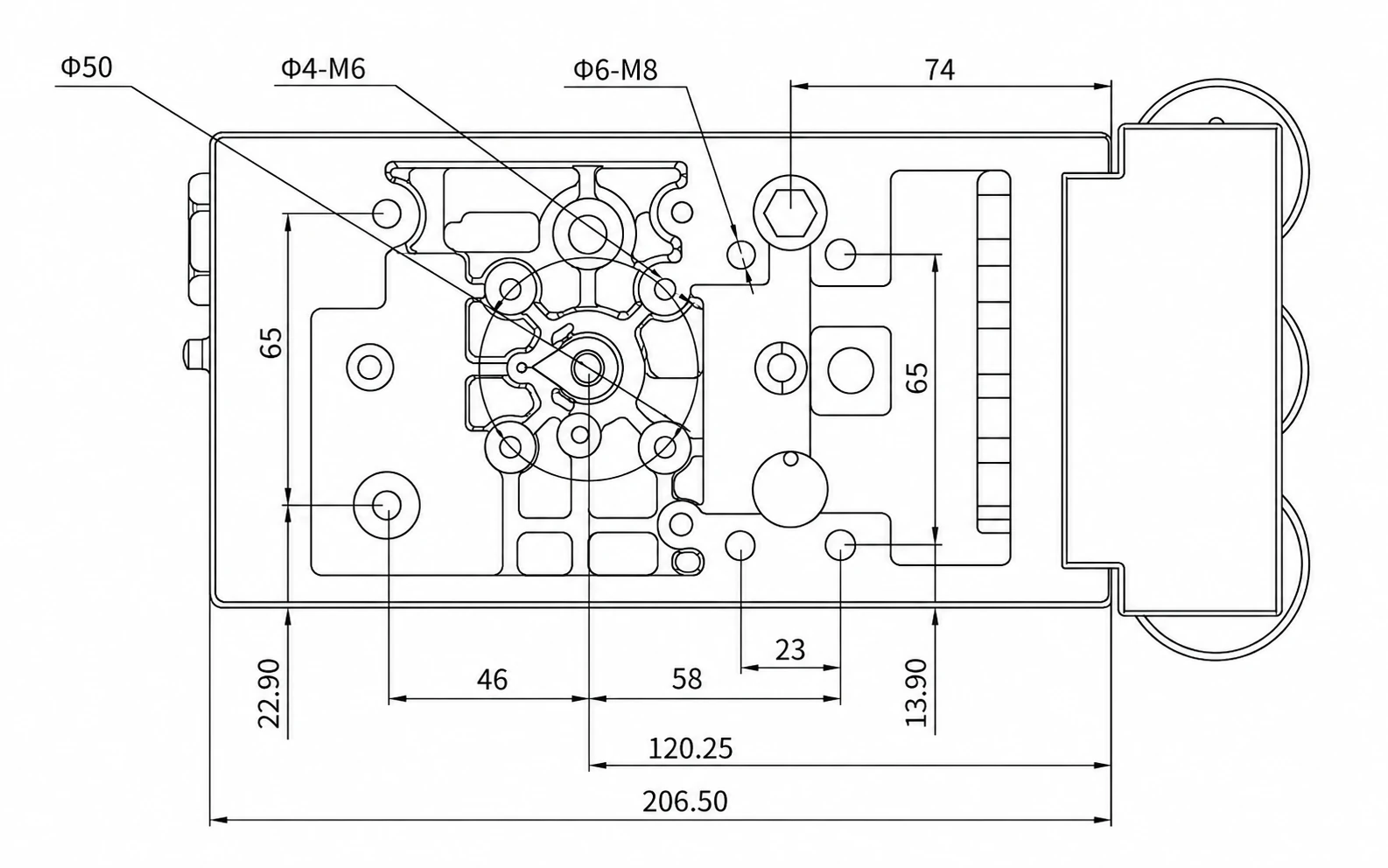

| Item | Dimension |
|---|---|
| Overall Length | 206.50 mm |
| Main Body Length | 120.25 mm |
| Upper Mounting Length | 74 mm |
| Body Width Reference | 65 mm |
| Mounting Hole Options | Φ4-M6 / Φ6-M8 |
| Connection Reference | M20 × 1.5 / G1/4 / 1/4 NPT / 1/2 NPT |
| Application Area | Typical Use |
|---|---|
| Pneumatic Control Valves | Accurate valve opening control in process systems |
| Pneumatic Ball Valves | Position control for rotary actuator packages |
| Pneumatic Butterfly Valves | Modulating control for quarter-turn valve automation |
| Oil and Gas Facilities | Explosion-proof valve positioning in hazardous areas |
| Chemical Plants | Pneumatic control valve automation for process pipelines |
| Power Plants | Valve position control for steam, water, and auxiliary systems |
| Water Treatment Plants | Automated flow control and valve position feedback |
| Petrochemical Plants | Control valve positioning in continuous process lines |
| Industrial Automation Systems | Pneumatic actuator control with optional HART and feedback signals |
| Outdoor Valve Stations | Positioner installation with pressure gauge and stainless steel housing options |
