Ferrule Intermediate Union

Home » Products » Ferrule Intermediate Union

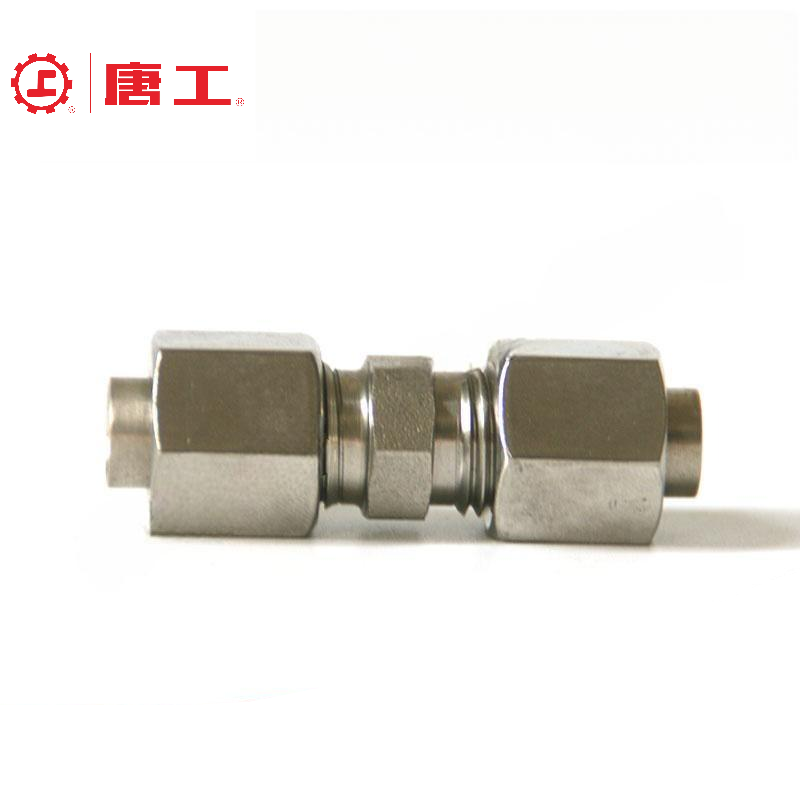

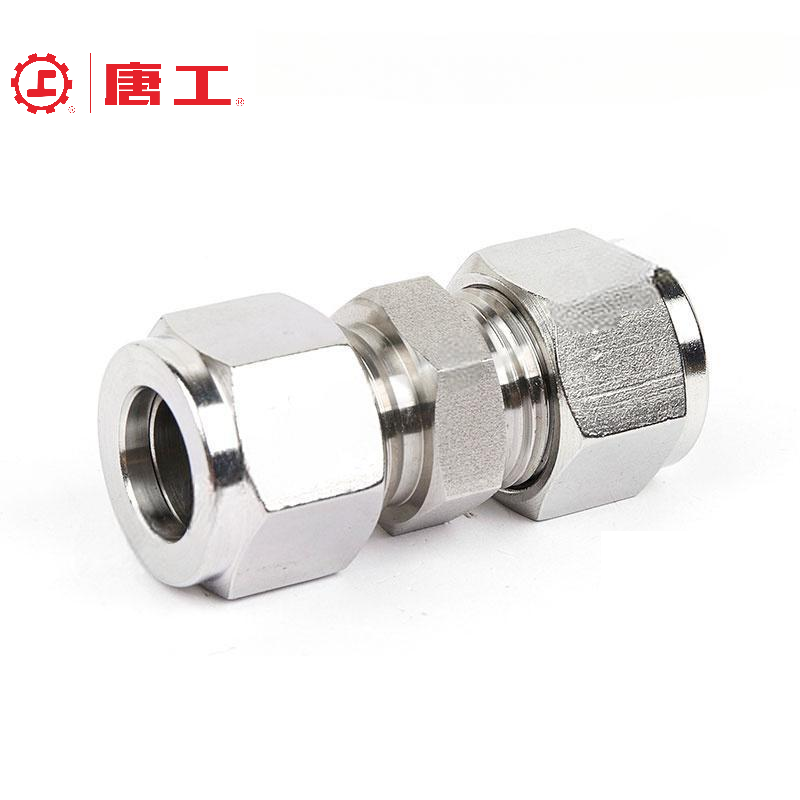

Ferrule Intermediate Union

Material:Stainless Steel (SS304, SS316 for corrosion resistance)

Size Range:1/8″ to 1″ (DN6-DN25)

Connection Options:Ferrule

Thread Type:NPT, BSPP, BSPT, UNF

Working Pressure:1,000 psi to 6,000 psi (68.9 bar to 413 bar)

Working Temperature:-40°C to 400°C

Sealing Options:PTFE, Graphite, Metal-to-Metal Seals

Manufacturing Method:Forging

Applicable Medium:Oil, Gas, Water

Manufacturing Standard:ANSI, ASME, GB, JIS, DIN, customizable as per customers’ drawing

Product Overview

The Ferrule Type Pipe Fitting Series includes various fittings such as nuts, unions, elbows, tees, crosses, and adapters. These fittings are used in many different piping systems to provide secure and leak-free connections. With the use of ferrules, these fittings ensure high-quality sealing and resistance to vibration, making them ideal for high-pressure applications. Made from SS304 and SS316 stainless steel, these fittings are durable and suitable for a wide range of industries.

Product Features

Leak-Free Performance: Designed with ferrules to ensure tight, leak-proof connections.

High Vibration Resistance: Ferrule design provides excellent resistance to vibration, making it suitable for dynamic systems.

Corrosion Resistant: Manufactured from SS304 and SS316 stainless steel for use in corrosive environments.

Versatile Application: Available in a wide range of sizes and connection types to meet diverse industrial needs.

High Pressure Capability: Rated for pressures up to 6,000 psi, making these fittings suitable for demanding applications.

Ease of Installation: Ferrule fittings are designed for quick and easy installation without requiring special tools.

Specification Parameters

Structural Length Standard:
According to ASME B16.11, MSS-SP-83, API 602, ISO 8434-1

Connection Forms Standards:
Ferrule per ISO 8434-1, Threaded according to ANSI/ASME B1.20.1

Available Sizes (Caliber):
1/8″, 1/4″, 3/8″, 1/2″, 3/4″, 1″

Pressure-Temperature Rating:
Class 2000, 3000, 6000 as per ASME B16.11

Pressure Range:
1,000 psi to 6,000 psi depending on size and material

Temperature Range:
-40°C to 400°C depending on material and sealing options

Specification Applications

Industries

Oil & Gas Industry: Used in high-pressure pipelines for transporting oil, gas, and other petrochemical products.
Chemical Industry: Ideal for transferring aggressive chemical fluids in corrosive environments.
Power Plants: Used in high-pressure steam lines, temperature monitoring, and other critical applications.
Water Treatment Plants: Suitable for various fluid distribution systems in potable and non-potable applications.
Hydraulic Systems: Designed for leak-free performance in high-pressure hydraulic applications.
Pharmaceutical Industry: Suitable for sanitary and cleanroom applications requiring corrosion-resistant fittings.

Specific Applications

High-Pressure Gas Systems: Used for secure, leak-free connections in compressed gas systems.
Hydraulic Lines: Provides vibration-resistant fittings in hydraulic equipment and machinery.
Chemical Injection Systems: Ensures safe and reliable connections for injecting chemicals in industrial processes.
Instrumentation Systems: Used in instrumentation tubing to ensure accurate and reliable monitoring.

Installation Instructions

Ensure ferrules are properly aligned before installation to prevent leaks.
Tighten fittings to the recommended torque using a wrench to ensure a secure connection.
Verify pressure and temperature ratings of the fittings before installation to ensure compatibility with the application.
Use PTFE or appropriate sealing materials where required for additional sealing support.
For stainless steel fittings, avoid contamination from carbon steel tools to prevent corrosion.
