Material: Stainless Steel (SS304, SS316)
Size: 1/4″ to 1″
Connection: NPT, BSPT
Working Pressure: up to 6000 psig (413 bar)
Working Temperature:–40 to 250°F (–40 to 121°C)
Sealing: PTFE, PEEK

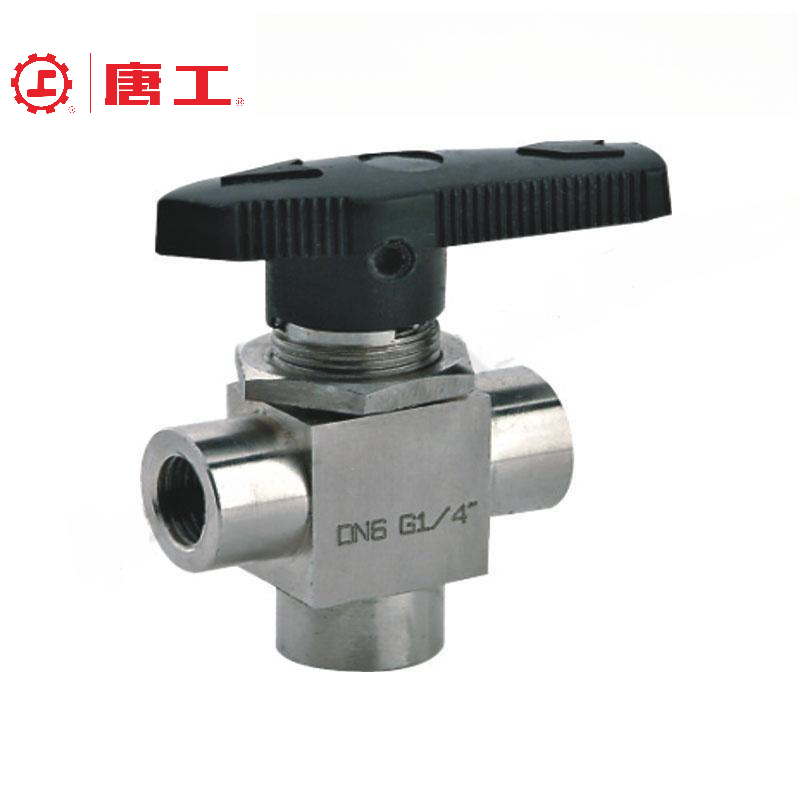

Ferrule Three-Way AFS Ball Valve are engineered for high-performance and reliability in alternative fuel applications, including hydrogen and compressed natural gas (CNG) systems. Designed to handle pressures up to 6000 psig (413 bar) and temperatures ranging from -40°F to 250°F (-40°C to 121°C), these valves ensure leak-tight integrity with spring-loaded seats and low-temperature fluorocarbon seals.
AFS ball valves provide flexibility and ease of use. All wetted components are fully compatible with hydrogen and CNG. Each valve undergoes rigorous leak testing with nitrogen or compressed air to ensure zero visible leaks. Additional options include pneumatic actuators, handle color customization, and field repairable seal kits.
■ Compact, maximum-flow design
■ Low operating torque
■ 2- or 3-way flow patterns
■ Panel mounting
■ Pneumatic and electric actuators
available
■ Low Emissions certification per API
641 available
| tem | Component | 2-Way Material Grade/ASTM Specification | 3-Way Material Grade/ASTM Specification |
| 1 | Handle | Phenolic with powdered metal 300 series SS insert | Phenolic with powdered metal 300 series SS insert |
| 2 | Set screw | S17400 SS | S17400 SS |
| 3 | Panel nut | 316 SS/B783 | 316 SS/B783 |
| 4 | Stop pin (2-way=2; 3-way=1) | Stainless steel | Stainless steel |
| 5 | Body | 316 SS/A479 | 316 SS/A479 |
| 6 | Stem | 316 SS/A276 | 316 SS/A276 |
| 7 | Stem O-ring | Fluorocarbon FKM | Fluorocarbon FKM |
| 8 | Primary stem backup ring | PEEK | PEEK |
| 9 | Secondary stem backup ring | PTFE/D1710 | PTFE/D1710 |
| 10 | Stem bearing | PEEK | PEEK |
| 11 | Ball | S21800/A276 | S21800/A276 |
| 12 | Plug (2-way only) | 316 SS/A276 | — |
| 13 | Seats (2) | PEEK | PEEK |
| 14 | Seat carriers (2) | 316 SS/A276 | 316 SS/A276 |
| 15 | Seat springs (12) | Alloy X-750/AMS 5542 | Alloy X-750/AMS 5542 |
| 16 | Seat carrier guides (2) | 316 SS/A276 | 316 SS/A276 |
| 17 | Seat carrier backup rings (4) | Reinforced PTFE | Reinforced PTFE |
| 18 | Seat carrier O-rings (2) | Fluorocarbon FKM | Fluorocarbon FKM |
| 19 | End screw seals (2) | PTFE/D1710 | PTFE/D1710 |
| 20 | End screws | 316 SS/A479 | 316 SS/A479 |
| End Connections Type Size | Flow Coefficient (Cv) | Dimensions, in. (mm) A | Dimensions, in. (mm) B |
| 2-Way Valve, 0.187 in. (4.75 mm) Orifice | |||
| 1/8 in. | 1.2 | 2.94 (74.7) | 1.47 (37.3) |
| 1/4 in. | 1 | 2.94 (74.7) | 1.47 (37.3) |
| 1/2 in. | 1.2 | 3.93 (99.8) | 1.97 (50.1) |
| 1/4 in. | 1.6 | 4.14 (105) | 2.07 (52.6) |
| 3/8 in. | 1.4 | 4.39 (112) | 2.19 (55.6) |
| 1/2 in. | 1 | 4.60 (117) | 2.30 (58.4) |
| 6 mm | 1.6 | 4.14 (105) | 2.07 (52.6) |
| 8 mm | 1.5 | 4.15 (105) | 2.07 (52.6) |
| 10 mm | 1.3 | 4.41 (112) | 2.20 (55.9) |
| 12 mm | 1 | 4.60 (117) | 2.30 (58.4) |
| 3-Way Valve, 0.187 in. (4.75 mm) Orifice | |||
| 1/8 in. | 0.75 | 2.94 (74.7) | 1.47 (37.3) |
| 1/4 in. | 2.94 (74.7) | 1.47 (37.3) | |
| 1/4 in. | 4.14 (105) | 2.07 (52.6) | |
| 3/8 in. | 4.39 (112) | 2.19 (55.6) | |
| 1/2 in. | 4.60 (117) | 2.30 (58.4) | |
| 6 mm | 4.14 (105) | 2.07 (52.6) | |
| 8 mm | 4.15 (105) | 2.07 (52.6) | |
| 10 mm | 4.41 (112) | 2.20 (55.9) | |
| 12 mm | 4.60 (117) | 2.30 (58.4) | |
