Size Range: DN25–DN600
Pressure Range: PN16–PN40
End Connection: Flanged
Material: Carbon Steel with PTFE Lining
Seals: PTFE/FEP/Viton
Valves Design: Anti-corrosive Fluorine-Lined Ball Valve
Face to Face: ISO 5752 Standard
End Connection: ASME B16.5, EN 1092-1
Testing & Inspection: API 598, ISO 5208
Suitable Medium: Acidic, Alkaline, and Corrosive Fluids

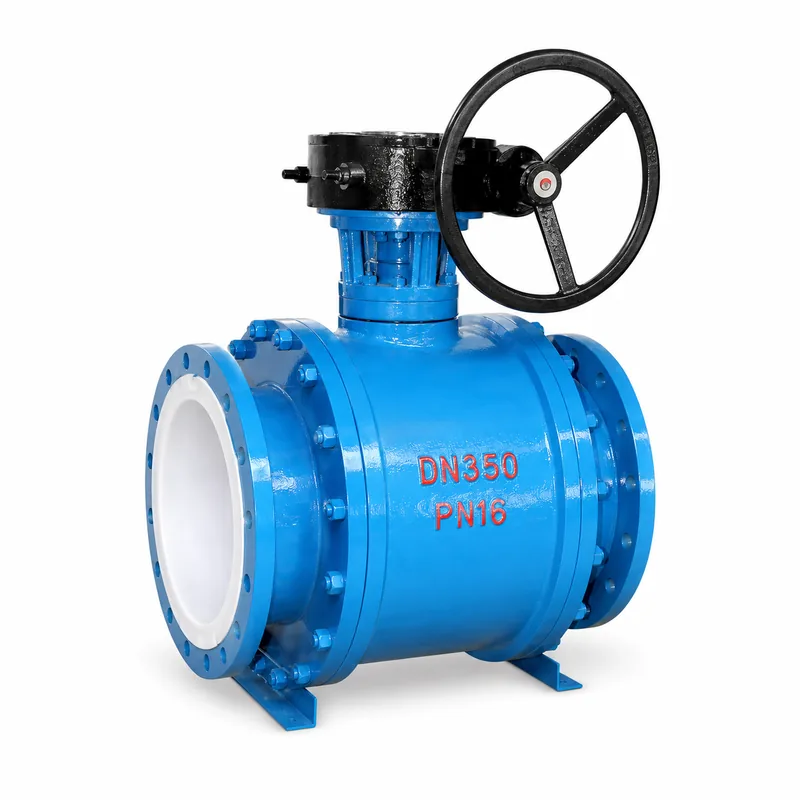

The Fluorine-Lined Ball Valve is designed for high-performance fluid control in aggressive and corrosive environments. The internal fluorine lining ensures resistance to chemical attacks, providing durability and a long service life. The valve offers reliable sealing and is ideal for handling hazardous and corrosive media in industrial applications.
Fluorine lining resists chemical corrosion, ensuring longevity.
PTFE or FEP seals provide leak-tight performance.
Designed for aggressive media, offering excellent corrosion resistance.
Flanged connection enables easy installation and maintenance.
Robust construction withstands high pressure and temperature.
Design and Manufacturing Standards: ASME B16.34, API 6D
Structural Length Standard: ISO 5752 / DIN 3202
Connection Forms Standards: ASME B16.5, EN 1092-1
Available Sizes (Caliber): DN25–DN600
Pressure-Temperature Rating:
Standard: PN16–PN40 / ANSI Class 150–300
Pressure Range: 1.6 MPa to 4.0 MPa
Temperature Range: -29°C to 180°C
Chemical Processing Plants
Petrochemical Industries
Water Treatment Facilities
Acidic and Alkaline Fluid Systems
Pharmaceutical Industries
