Size Range: DN50–DN1200
Pressure Range: PN10–PN16
End Connection: Flanged / Wafer / Lug
Material: Ductile Iron / Carbon Steel Body with PTFE/FEP Lining
Seals: PTFE/FEP
Valves Design: Fluorine-Lined Centered or Eccentric Butterfly Valve
Face to Face: ISO 5752 / API 609
End Connection: ASME B16.5, EN 1092-1
Testing & Inspection: API 598, ISO 5208
Suitable Medium: Strong Acids, Alkalis, and Corrosive Media

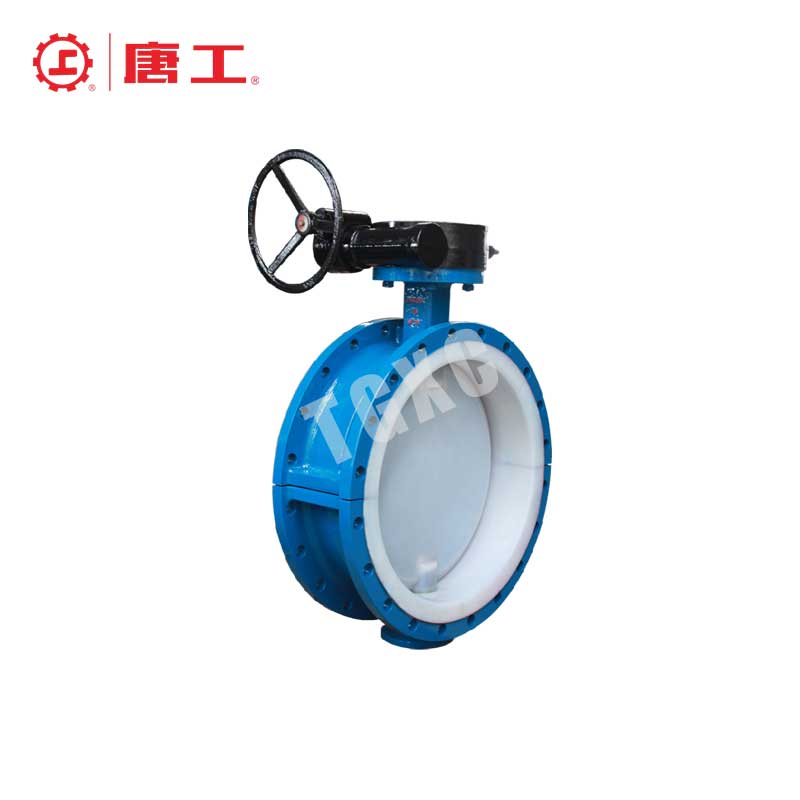

The Fluorine-Lined Butterfly Valve offers a robust solution for handling corrosive and aggressive fluids in industrial systems. Designed with a fluorine lining, it ensures superior chemical resistance and reliable sealing. Its compact and lightweight design facilitates easy installation and maintenance, making it suitable for a wide range of applications.
Corrosion Resistance: PTFE/FEP lining provides excellent resistance to chemicals and aggressive media.
Reliable Sealing: High-quality seals ensure leak-free operation under pressure.
Compact and Lightweight: Easy to install and maintain in tight spaces.
Versatile Connection Options: Available in flanged, wafer, or lug types.
Durability: Rugged construction ensures long service life even in harsh environments.
Design and Manufacturing Standards: API 609, ASME B16.34
Structural Length Standard: ISO 5752 / API 609
Connection Forms Standards: ASME B16.5, EN 1092-1
Available Sizes (Caliber): DN50–DN1200
Pressure-Temperature Rating:
Standard: PN10–PN16 / ANSI Class 150
Pressure Range: 1.0 MPa to 1.6 MPa
Temperature Range: -29°C to 200°C
Chemical Processing: Ideal for acid and alkali pipelines in chemical plants.
Petrochemical Industry: Efficient for corrosive fluid transport.
Pharmaceutical Industry: Ensures contamination-free handling of aggressive chemicals.
Water Treatment Systems: Handles chemicals used in water purification processes.
