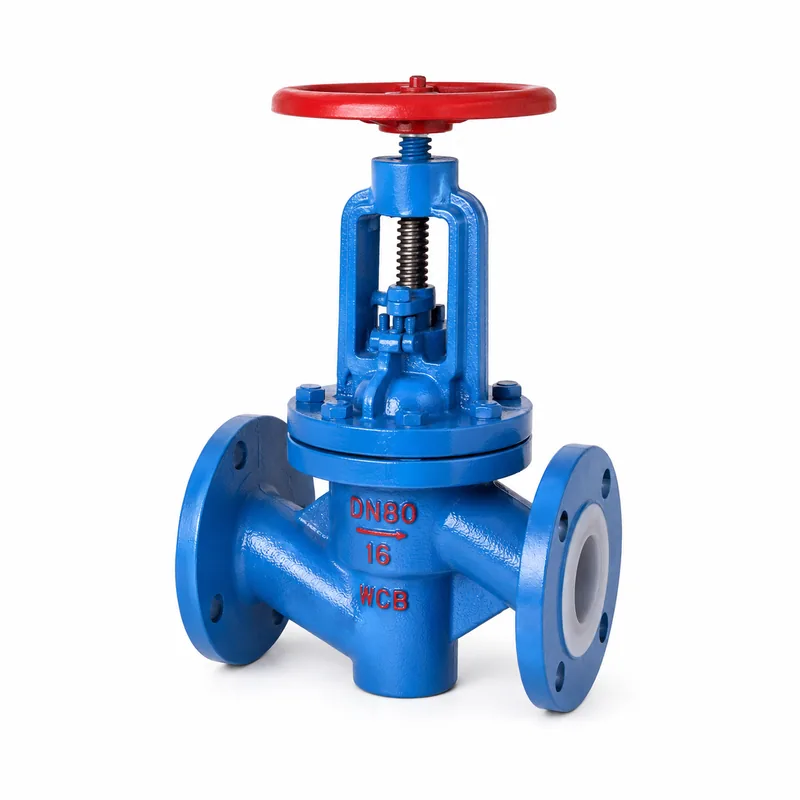

Fluorine-Lined Globe Valve

Size Range: DN15–DN400
Pressure Range: PN6–PN40
End Connection: Flanged
Material: Carbon Steel with PTFE/FEP Lining
Seals: PTFE/FEP/Viton
Valves Design: Globe Valve with Fluorine Lining
Face to Face: ISO 5752 / DIN 3202 Standard
End Connection: ASME B16.5, EN 1092-1
Testing & Inspection: API 598, ISO 5208
Suitable Medium: Acidic, Alkaline, and Corrosive Fluids

Product Overview

The Fluorine-Lined Globe Valve is engineered for precise flow regulation in corrosive and aggressive chemical environments. The PTFE or FEP lining protects internal surfaces from chemical damage, ensuring long service life and superior performance. This valve is ideal for use in systems requiring reliable sealing and smooth flow control.

Product Features

Standards Compliance

Item	Description
Follow the Standard	GB 12223 / GB 12235
Design and Manufacture	Complies with national standards of China
Structure and Length	GB 12221 (Long–Short Series)
Flange Size	GB/T9113.1, GB/T17241.6 (or customized by contract requirement)
Pressure Test	GB/T 13927
Marking	GB 12220
Availability	GB/T 12252

Remarks:

Basic structure: Straight-through and DC type
Nominal pressure: PN1.0–2.5MPa
Nominal size: DN15–350mm

The Basic Model (Full Lining)

Operation Method	Model Types
Manual	J41F₄/F₆, J45F₄/F₆
Gear Drive	J941F₄, J941F₆, J441F₄, J441F₆, J454F₄, J454F₆
Pneumatic	J641F₄, J641F₆, J684F₄, J684F₆

Main Spare Part Bill of Materials

No.	Part Name	Grey Cast Iron	Carbon Steel	Stainless Steel	Low Carbon Stainless Steel
1	Body, cover	HT250	WCB	CF8, CF8M	CF3, CF3M
2	Disc, stem	35, 1Cr13	1Cr13	1Cr18Ni9, 1Cr18Ni12Mo2Ti	00Cr18Ni10Ti, 0Cr17Ni14Mo2
3	Live bolts	35	35	1Cr17Ni2	1Cr17Ni2
4	Lining level/seal	FEP (F46), PCTFE(F3), PTFE(F4), PFA (Soluble PTFE), PO (Polyolefin)
5	Packing	PTFE (F4)	PTFE (F4)	PTFE (F4)	PTFE (F4)
6	Packing cover	WCB	WCB	CF8, CF8M	CF3, CF3M
7	Stem nut	ZCuAl10Fe3
8	Bolt	35CrMo	35CrMo	1Cr17Ni2, 1Cr18Ni9Ti	1Cr18Ni9Ti
9	Nut	45, 45	0Cr18Ni9	0Cr18Ni9	0Cr18Ni9
10	Hand wheel	H200	H200	WCC	WCC

Specification Parameters

◇ Main Connection Dimensions and Weight

PN1.0MPa

DN (mm)	NPS (inch)	L	D	D1	D2	f	b	z–φd	D0	H1	H2	Weight (kg)
15	1/2	130	95	65	45	2	14	4–φ14	100	235	260	6.5
20	3/4	150	105	75	55	2	16	4–φ14	100	240	265	7
25	1	160	115	85	65	2	16	4–φ14	120	245	270	7.8
32	1 1/4	180	135	100	78	2	18	4–φ18	140	255	285	11
40	1 1/2	200	145	110	85	3	18	4–φ18	140	285	315	13
50	2	230	160	125	100	3	20	4–φ18	160	295	330	15
65	2 1/2	290	180	145	120	3	20	4–φ18	180	350	395	23
80	3	310	195	160	135	3	22	4/8–φ18	240	395	445	38
100	4	350	215	180	155	3	22	8–φ18	240	450	490	42
125	5	400	245	210	185	3	24	8–φ18	280	525	555	55
150	6	480	280	240	210	3	24	8–φ23	320	605	645	77
200	8	495	335	295	265	3	26	8–φ23	360	645	765	135
250	10	622	390	355	320	3	28	12–φ23	400	685	805	220
300	12	698	440	400	368	4	28	12–φ23	400	710	814	277
350	14	787	500	460	428	4	30	16–φ23	450	750	855	320

PN1.6MPa

DN (mm)	NPS (inch)	L	D	D1	D2	f	b	z–φd	D0	H1	H2	Weight (kg)
15	1/2	130	95	65	45	2	14	4–φ14	100	240	265	7
20	3/4	150	105	75	55	2	16	4–φ14	100	245	270	7.6
25	1	160	115	85	65	2	16	4–φ14	120	250	275	8.2
32	1 1/4	180	135	100	78	2	18	4–φ18	140	260	290	12
40	1 1/2	200	145	110	85	3	18	4–φ18	140	285	320	14
50	2	230	160	125	100	3	20	4–φ18	160	300	335	18
65	2 1/2	290	180	145	120	3	20	8–φ18	180	355	400	26
80	3	310	195	160	135	3	22	8–φ18	240	400	450	40
100	4	350	230	190	160	3	24	8–φ23	240	455	495	50
125	5	400	245	210	185	3	26	8–φ23	280	530	560	65
150	6	480	280	240	210	3	28	8–φ23	320	610	650	85
200	8	495	335	295	265	3	30	12–φ23	360	650	770	150
250	10	622	405	355	320	3	32	12–φ25	400	690	810	245
300	12	698	460	410	375	4	34	12–φ25	400	730	845	295

PN2.5MPa

DN (mm)	NPS (inch)	L	D	D1	D2	f	b	z–φd	D0	H1	H2	Weight (kg)
15	1/2	130	95	65	45	2	16	4–φ14	120	240	265	7.5
20	3/4	150	105	75	55	2	16	4–φ14	120	245	270	8
25	1	160	115	85	65	2	16	4–φ14	140	250	275	9
32	1 1/4	180	135	100	78	2	18	4–φ18	160	260	290	13
40	1 1/2	200	145	110	85	3	20	4–φ18	180	320	350	15
50	2	230	160	125	100	3	20	4–φ18	200	335	370	18
65	2 1/2	290	180	145	120	3	22	8–φ18	240	355	400	28
80	3	310	195	160	135	3	24	8–φ23	280	400	452	44
100	4	350	230	190	160	3	24	8–φ23	320	455	495	57
125	5	400	270	220	188	3	28	8–φ25	320	530	560	71
150	6	480	300	250	218	3	30	8–φ25	360	610	650	90
