Size Range: DN50–DN800
Pressure Range: PN10–PN16
End Connection: Flanged or Wafer
Material: Carbon Steel/Fluorine-Lined
Seals: PTFE or FEP
Valves Design: Pneumatic Actuated Butterfly Valve
Face to Face: ISO 5752
Testing & Inspection: API 598 Standards
Suitable Medium: Corrosive liquids, gases, and chemical solutions
The Fluorine-Lined Pneumatic Butterfly Valve is engineered to offer high-efficiency flow control in aggressive chemical environments. It features a robust fluorine lining for exceptional resistance to corrosion and a pneumatic actuator for automation, ensuring smooth operation and reliable sealing. This valve is an optimal choice for industrial applications where durability and precision are critical.
Fluorine-lined body and disc for superior chemical resistance.
Pneumatic actuator for fast and automated control.
Low-torque operation ensures energy efficiency and longer service life.
Tight sealing with advanced seat design, reducing leakage risk.
Versatile installation options with flanged or wafer connections.

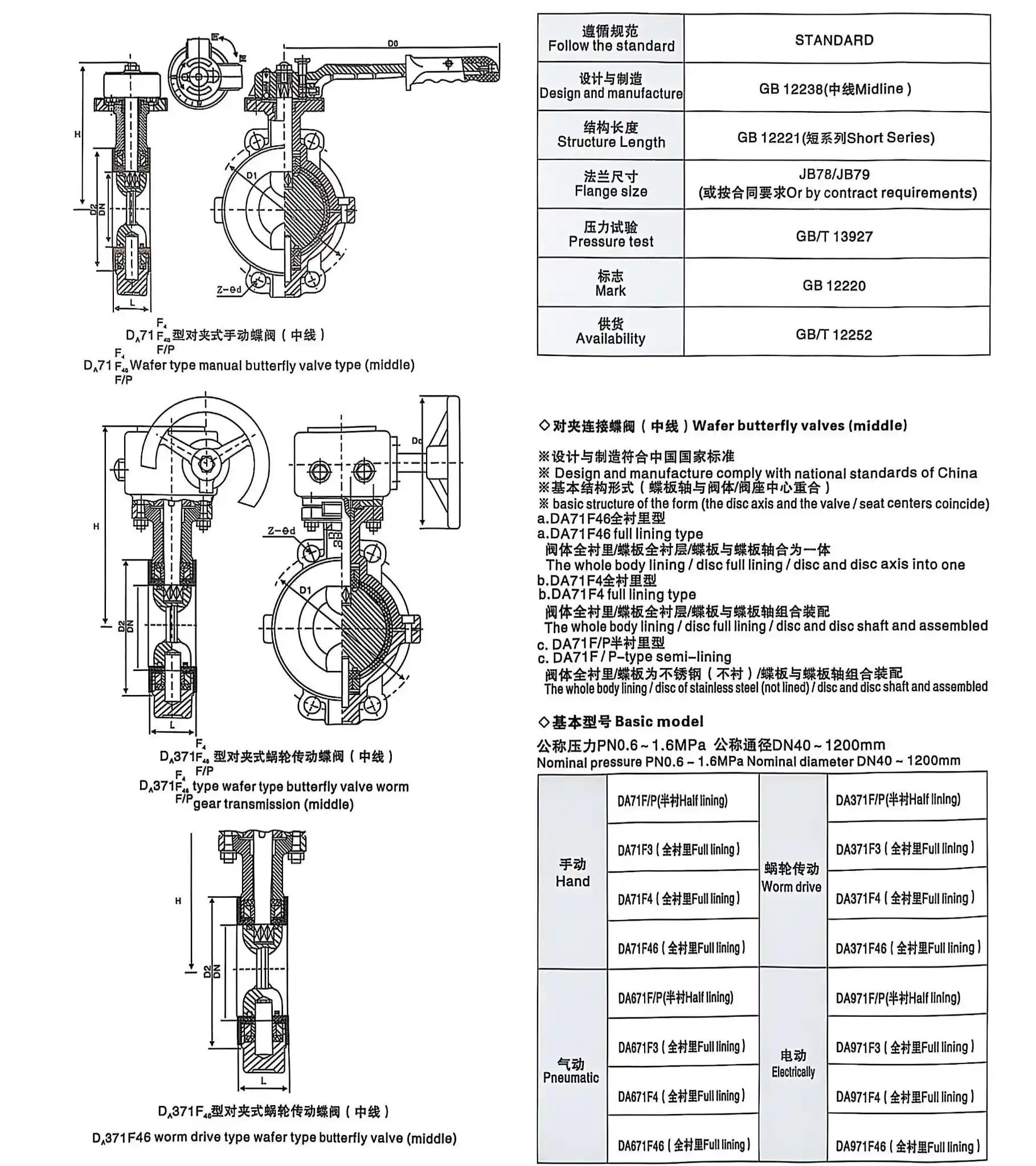

Design and Manufacturing Standards: API 609, GB/T 12238
Structural Length Standard: ISO 5752
Connection Forms Standards: ISO 7005, EN 1092-1
Available Sizes (Caliber): DN50–DN800
Pressure-Temperature Rating:
Standard: PN10–PN16
Pressure Range: 1.0–1.6 MPa
Temperature Range: -20°C to +150°C
Chemical Processing: Controls flow of corrosive liquids and gases.
Petrochemical Industry: Used in refining processes for precise regulation.
Water Treatment: Handles aggressive chemicals in neutralization and filtration.
Pharmaceuticals: Ensures safe and accurate flow control for reactive substances.
