Model: MCV-280
Valve Type: Forged high-pressure angle control valve
Nominal Size: DN6 to DN150
Pressure Class: PN160, PN220, PN260, PN320
Flow Characteristic: Equal percentage or linear
Rangeability: 20:1 below DN25; 50:1 at DN25 and above

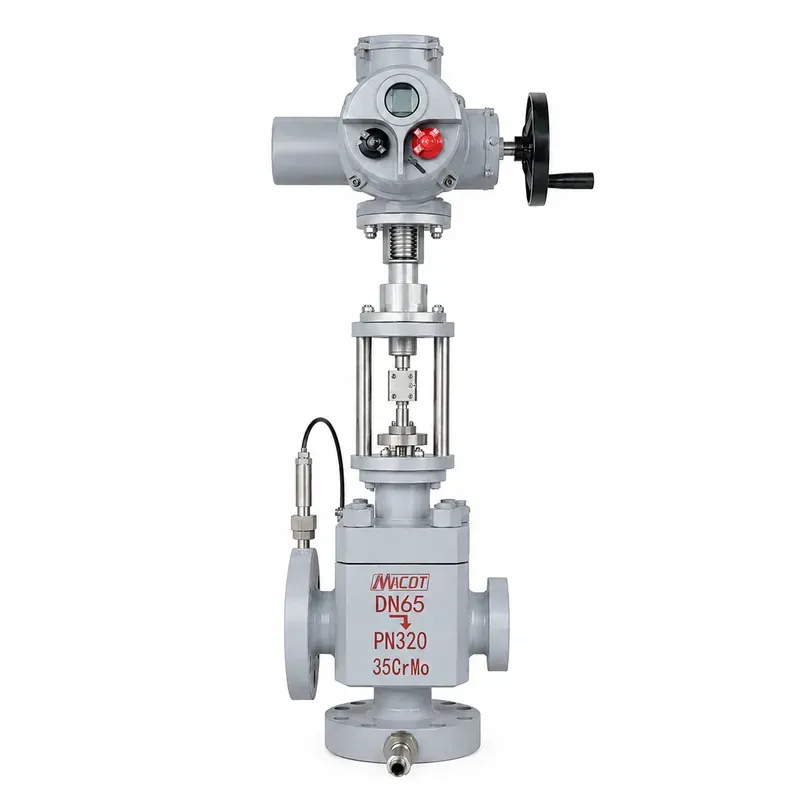

Model MCV-280 is a forged angle control valve with two-stage pressure-reduction trim for high-pressure service. Pressure-unbalanced and pressure-balanced plug versions are available for duties such as urea synthesis tower outlets and other angular high-pressure piping arrangements.
| Item | Specification |
|---|---|
| Valve Type | Forged high-pressure angle control valve |
| Nominal Size | DN6 to DN150 |
| Pressure Class | PN160, PN220, PN260, PN320 |
| Flow Characteristic | Equal percentage or linear |
| Rangeability | 20:1 below DN25; 50:1 at DN25 and above |
| Leakage Class | Class IV; Class V optional |
| Pressure Reduction | Two-stage trim |
| Connection | High-pressure threaded flange with lens gasket |
| Actuation | Pneumatic or electric actuator |
