Forged Three-Way Ball Valve

Caliber: DN15 ~ DN250
Design and manufacturing: API608、API6D
Face-to-face dimensions: ASME B16.10、API6D
Connection forms: Flange, Wafer
Pressure test: API598、API6D
Pressure temporature level: ≤250℃
Pressure: PN16~PN40

Product Overview

A three-way ball valve is a versatile flow control device featuring three ports and an internal ball with an L or T-shaped bore. This design enables efficient management of fluid direction, allowing for mixing, distribution, or complete shutoff within a single valve. The valve’s compact structure, reliable sealing, and ease of operation make it suitable for various industrial applications, including chemical processing, water treatment, and HVAC systems. Its ability to streamline piping configurations and reduce the need for multiple valves enhances system efficiency and reduces maintenance requirements.

Product Features

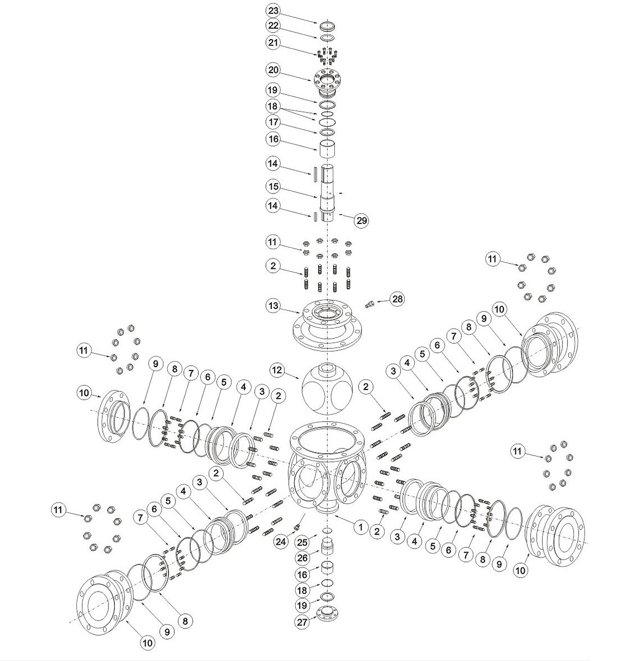

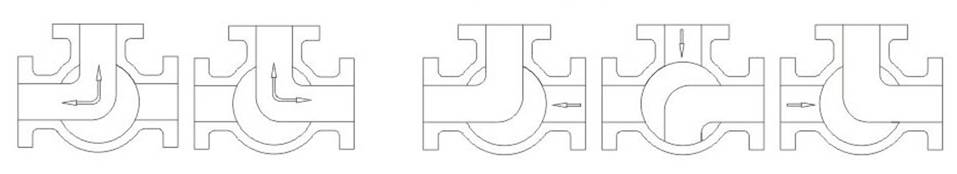

Structural Features of L-Pattern Three-Way Ball Valve

L-Shaped Flow Passage: The internal ball features an L-shaped bore, enabling the connection of the central port to either of the two side ports.
Flow Diversion: Designed primarily for diverting flow between two different outlets without mixing streams, allowing for straightforward switching between flow paths.
Two-Position Operation: Typically operates with a 90-degree (quarter-turn) rotation, providing two distinct flow paths: connecting the center port to one side port or the other.

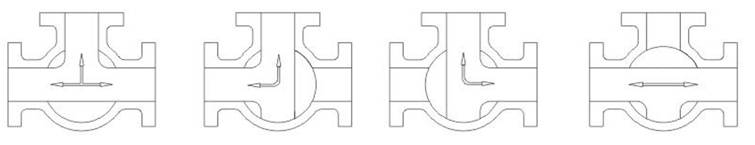

Structural Features of T-Pattern Three-Way Ball Valve

Multi-Directional Flow Paths: The T-pattern design enables fluid flow to be directed in multiple configurations, such as:
- Straight-line flow through two opposite ports.
- Diverted flow from one inlet to another outlet port.
- Mixed flow paths combining inputs or outputs.
Three-Port Design: The valve features three interconnected ports, allowing for simultaneous control of flow distribution or isolation in pipelines.
Internal T-Shaped Passage: The internal ball contains a T-shaped bore, which aligns with different ports depending on the handle or actuator position, enabling flexible flow control.
Flow Control Versatility: Can function as a diverter to split flow into two separate paths or as a mixer to combine flows into one stream.

Specification Parameters

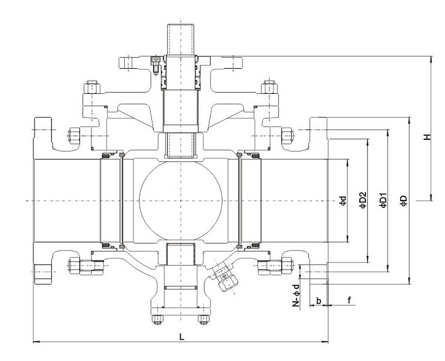

Main External and Connection Dimensions

DN	L	D	D1	D2	b	Z–Φd	H	W	Weight (kg)
15	150	95	65	45	14	4–Φ14	95	140	4
20	160	105	75	55	14	4–Φ14	105	160	8
25	180	115	85	65	14	4–Φ18	113	180	7
32	200	135	100	78	16	4–Φ18	135	250	12
40	220	145	110	85	16	4–Φ18	142	300	15
50	240	160	125	100	16	4–Φ23	165	350	20
65	260	180	145	120	16	8–Φ18	175	350	25
80	280	195	160	135	20	8–Φ18	190	400	36
100	320	215	180	155	20	8–Φ18	225	500	51
125	380	245	210	185	22	8–Φ23	245	600	77
150	440	280	240	210	24	8–Φ23	265	800	108
200	550	335	295	265	26	12–Φ23	305	800	126
250	670	405	355	320	30	12–Φ25.4	370	1300	185

Flow Path Options

L-type (L Port) – Suitable for two-way flow control
T-type (T Port) – Suitable for three-way flow or mixing/diverting applications

Main External and Connection Dimensions

▶ Stainless Steel – Class 25(Q44F/644F/944F/45/645F/945F–25C/P)

DN	L	D	D1	D2	b	Z–Φd	H	W	Weight (kg)
15	150	95	65	45	16	4–Φ14	95	100	4
20	160	105	75	55	16	4–Φ14	105	160	8
25	180	115	85	65	16	4–Φ18	113	160	8
32	200	135	100	78	18	4–Φ18	135	250	13
40	220	145	110	85	18	4–Φ18	142	250	19
50	240	160	125	100	20	4–Φ18	154	350	27
65	260	180	145	120	22	8–Φ18	175	350	33
80	280	195	160	135	22	8–Φ18	190	450	40
100	320	230	190	160	24	8–Φ23	225	450	53
125	380	270	220	188	28	8–Φ25	245	600	86
150	440	300	250	218	30	8–Φ25	265	800	113
200	550	360	310	278	34	12–Φ25	305	1200	133
250	670	425	370	332	36	12–Φ30	370	1400	219

▶ Stainless Steel – Class 40(Q44F/644F/944F/45/645F/945F–40C/P)

DN	L	D	D1	D2	D6	b	Z–Φd	H	Weight (kg)
15	180	95	65	45	40	16	4–Φ14	100	4
20	190	105	75	55	51	16	4–Φ14	160	5
25	200	115	85	65	58	16	4–Φ14	160	8
32	210	135	100	78	66	18	4–Φ18	250	13
40	230	145	110	85	75	18	4–Φ18	250	19
50	240	160	125	100	88	20	4–Φ18	350	27
65	260	180	145	120	88	22	8–Φ18	350	33
80	295	195	160	135	108	24	8–Φ18	450	40
100	350	230	190	160	150	26	8–Φ23	450	53
125	381	270	220	188	176	28	8–Φ25	600	86
150	403	300	250	218	206	30	8–Φ25	800	113
200	502	376	320	282	260	38	12–Φ30	1200	133
250	568	455	385	345	313	42	12–Φ34	1400	219

Specification Applications

Three-way ball valves are versatile components utilized across various industries for efficient fluid management. In chemical processing, they facilitate the mixing and diversion of different chemicals, enhancing process flexibility. In HVAC systems, these valves regulate the flow of heating and cooling fluids, contributing to effective temperature control. Water treatment facilities employ three-way ball valves to manage the distribution and mixing of water streams, ensuring optimal treatment processes. Additionally, in the oil and gas sector, they are instrumental in directing flow paths, supporting complex pipeline networks. Their ability to streamline piping configurations by replacing multiple two-way valves with a single unit simplifies system design and maintenance. The choice between L-port and T-port configurations allows for tailored flow control solutions, accommodating specific operational requirements. Overall, three-way ball valves enhance system efficiency and operational flexibility across a broad spectrum of applications.
