Body type: Straight-through S-type cast valve
Plug type: Balanced sleeve structure plug
Nominal diameter: DN15~300mm; NPS 1/2″~12″
Nominal pressure: PN1.6~6.4MPa; CLASS 150~300LB
Applicable temperature: +250~+650℃ (Optional according to working conditions)
Type of connection: Flange, welding, thread (applicable within 1″)
Flange distance: According to IEC 60534
Gland type: Bolt compression type
Sealing gasket: Metal graphite spiral wound gasket
Packing: Flexible graphite
Actuator: Pneumatic actuator, Electric actuator

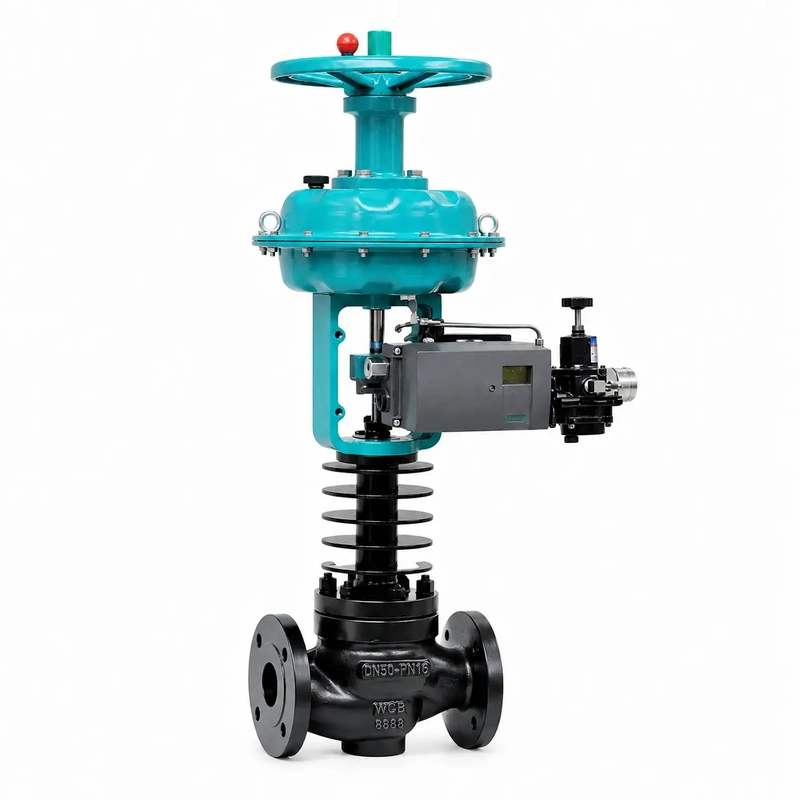

Grease seal high temperature control valve of grease injection type produced by TangoValve Group can be widely used to control various kinds offuids with different pressures and temperatures. The valve body is com-pact and the fow channel is S-streamlined, with the characteristics of small pressure drop loss and large flux, wide adjus-table range andhigh accuracy of fow characteristics. The balanced plug structure, adopted for the valve, has the advantages of good valve stability, low vib-ration, low noise and low temperature sensitivity. lt is widely used in occasions of large flow, high temperature, and leakage requirements not strict.
| Z | Actuator |
| Z Series Control Valve | J: Pneumatic diaphragm actuator H:Pneumatic piston actuatorragm actuator R: Electric 3810L actuator D: Electric PSL actuator |
| H | Structural Style |
| H Straight Stroke | G: High temperature greasingcontrol valve GP: high-temperature greasingsingle-seat control valve GM: high-temperature greasingsleeve control valve GL:High-temperature grease-flledcage control valve GF(H): high-temperature greasingthree-way control valve |
The plug has rich Cv value, and the sealing performance of the valve seat is in line with the international industry standard of the regulating valve. The regulating valve is equipped with pneumatic or electric actuator, with compact structure and large output force, which is more suitable for the control use in the high temperature situation requiring high reliability and closing performance. The service life and sealing performance of the valve stem packing can be signifcantly enhanced by adding the structure of sealing grease and double-layer sealing when it is used in steam and high temperature conditions.
1. With top guide structure
2.Large fow coefhcient and wide adjustable range
3.Double sealing structure, more reliable sealing
4.With heat sink, strong heat dissipation function
5.With grease injection tank, longer packing life
6. Mainly used in high temperature steam, hot oil and other occasions
Carbon steel for body material*
| No. | Component | Material | ||
| 1 | Body | WCB | LCB | WC9 |
| 2 | Gasket | 316 + Graphite/FTFE | ||
| 3 | Seat | 304 | 304 | 304 |
| 4 | Plug | 304 | 304 | 304 |
| 5 | Guide sleeve | Cu/316L | Cu/316L | Cu/316L |
| 6 | Gasket | 304 | 304 | 304 |
| 7 | Bonnet | 316 + Graphite/FTFE | ||
| 8 | Bolt and Nut | WCB | LCB | WC9 |
| 9 | Heat sink | 304 | 304 | 304 |
| 10 | Stem | 304 | 304 | 304 |
| 11 | Oil storage ring | 304 | 304 | 304 |
| 12 | Packing | PTFE/Flexible graphite | ||
| 13 | Lock nut | 304 | 304 | 304 |
| 14 | Pressing sleeve | 304 | 304 | 304 |
| 15 | Plate | 304 | 304 | 304 |
Body Materials Stainless Steel*
| No. | Component | Material | ||
| 1 | Body | CF8 | CF8M | CF3M |
| 2 | Gasket | 316 + Graphite/FTFE | ||
| 3 | Seat | 304 | 316 | 316L |
| 4 | Plug | 304 | 316 | 316L |
| 5 | Guide sleeve | Cu/316L | Cu/316L | Cu/316L |
| 6 | Gasket | 304 | 316 | 316L |
| 7 | Bonnet | 316 + Graphite/FTFE | ||
| 8 | Bolt and Nut | CF8 | CF8M | CF3M |
| 9 | Heat sink | 304 | 316 | 316L |
| 10 | Stem | 304 | 316 | 316L |
| 11 | Oil storage ring | 304 | 316 | 316L |
| 12 | Packing | PTFE/Flexible graphite | ||
| 13 | Lock nut | 304 | 316 | 316L |
| 14 | Pressing sleeve | 304 | 316 | 316L |
| 15 | Plate | 304 | 316 | 316L |
Note: 1.The above is of standard confguration structure; The valve seat is metal seal, and the valve seat is soft seal, grade Vl optional. lt can provide valve trim of spray welding cemented carbide. 2.The conventional materialis carbon steel and stainless steel, and the special material regulating valve products can be customized according to the user’s work conditions.
| Inside Diameter (mm) | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | |
| Inside Diameter (in) | 1″ | 1-1/4″ | 1-1/2″ | 2″ | 2-1/2″ | 3″ | 4″ | 5″ | 6″ | 8″ | 10″ | 12″ | |
| Flow Coefficient (Kv) Straight Line | 10 | 16 | 25 | 40 | 63 | 100 | 160 | 250 | 400 | 630 | 1000 | 1400 | |
| Flow Coefficient (Kv) Percent | 11 | 17.6 | 27.5 | 44 | 69 | 110 | 176 | 275 | 440 | 690 | 1100 | 1500 | |
| Pneumatic actuator | HA/B-23 | HA/B-34 | HA/B-45 | HA/B-56 | |||||||||
| 350 cm² | 560 cm² | 900 cm² | 1400 cm² | ||||||||||
| Mode of Action | Spring Range | Allowable Differential Pressure (MPa) | |||||||||||
| Gas Opening | 20–100 KPa | 3 | 2.25 | 2.25 | 1.95 | 2.36 | 2.04 | 1.67 | 1.41 | 1.41 | 1.14 | 0.65 | 0.55 |
| 40–200 KPa | 6.4 | 6.4 | 6.4 | 6.4 | 6.4 | 6.4 | 6.4 | 6.4 | 6.4 | 6.4 | 1.55 | 1.4 | |
| 80–240 KPa | 6.4 | 6.4 | 6.4 | 6.4 | 6.4 | 6.4 | 6.4 | 6.4 | 6.4 | 6.4 | 4.08 | 4.08 | |
| Gas Off | 20–100 KPa | 1.5 | 1.13 | 1.13 | 0.98 | 1.18 | 1.02 | 0.84 | 0.71 | 0.71 | 0.71 | 0.57 | 0.55 |
| 40–200 KPa | 4.5 | 3.38 | 3.38 | 2.93 | 3.54 | 3.06 | 2.51 | 2.12 | 2.12 | 2.12 | 1.71 | 1.55 | |
| 80–240 KPa | 6.4 | 6.4 | 6.4 | 6.4 | 6.4 | 6.4 | 6.4 | 6.4 | 6.4 | 6.4 | 4.08 | 3.65 | |
| Electric Actuator | Allowable Differential Pressure (MPa) | ||||||||||||
| Thrust(N) | 800 | 6.4 | 6.4 | ||||||||||
| 2000 | 6.4 | 6.4 | 6.4 | 5.1 | |||||||||
| 3000 | 6.4 | 6.4 | 6.4 | 6.4 | 5.7 | 4.76 | |||||||
| 5000 | 6.4 | 6.4 | 6.4 | 6.4 | 6.25 | ||||||||
| 6500 | 6.4 | 6.4 | 4.23 | 3.23 | |||||||||
| 10000 | 6.4 | 6.1 | 3.31 | 2.07 | |||||||||
| 16000 | 6 | 4 | |||||||||||
| Model | Pneumatic film actuator | Electronic electric actuator |
| Form | ZH22~ZH56 | 3810L, RSL |
| Type | Multi spring | Intelligent integrated type |
| Purpose | Adjustment, switch | Regulating |
| Drive | Air pressure (spring range): 140 (20~100) KPa G 240 (40~200) KPa G 280 (80~240) KPa G |
Power supply: AC 220 V ±10% 50Hz AC 380 V ±10% 50Hz |
| Joint | Rc 1/4 | Common type: 2–PF(G1/2”) Flameproof type: 2–PF(G3/4”) |
| Positive Action | Air pressure increases to push the valve to close | Control signal increases to push the valve to close |
| Reaction | Air pressure increases to push the valve open | Control signal increases to push the valve open |
| Control Signal | 4~20mA.DC (With positioner) | Input output 4~20mA.DC |
| Lag | ≤1% FS (With positioner) | ≤0.8% FS |
| Linearity | 2% FS (With positioner) | ≤±1% FS |
| Ambient Temperature | -10°C ~ +70°C | |
| Surface Coating | Black phosphating treatment Actuator: Acrylic polyurethane paint |
|
| Optional Accessories | Optional accessories, Hand wheel, Magnetic valve, Travel switch, Lock up valve | Heater |
| Flow Characteristics | Equal percentage, Straight line | |
| Adjustable Range | 50:01 | |
| Rated Cv Value | Equal percentage: 10~1400 Straight line: 11~1500 |
|
| Allowable Leakage | Hard seal: Level-IV (0.01% rated flow of valve) Soft seal: Level-V |
|
| Drive Mode | Pneumatic | Electric |
| Intrinsic Error (%) | ±1.0 | ±1.0 |
| Return Difference (%) | ≤1.0 | ≤1.0 |
| Dead Zone (%) | ≤0.6 | ≤1.0 |
| Constant Point Deviation (%) | ±2.5 | ±2.5 |
| Rated Stroke Deviation (%) | ≤2.5 | ≤2.5 |
| DN (In) | 20 (3/4″) | 25 (1″) | 32 (1-1/4″) | 40 (1-1/2″) | 50 (2″) | 65 (2-1/2″) | 80 (3″) | 100 (4″) | 125 (5″) | 150 (6″) | 200 (8″) | 250 (10″) | 300 (12″) |
| L | |||||||||||||
| PN16/25 | 181 | 184 | 200 | 222 | 254 | 276 | 298 | 352 | 410 | 451 | 600 | 650 | 700 |
| PN40 | 181 | 184 | 200 | 222 | 254 | 276 | 298 | 352 | 410 | 451 | 600 | 670 | 770 |
| PN64 | 210 | 210 | 210 | 251 | 286 | 311 | 337 | 394 | 440 | 508 | 650 | 690 | 800 |
| H | |||||||||||||
| PN16/25 | 52.5 | 57.5 | 75 | 75 | 85.5 | 92.5 | 100 | 110 | 142.5 | 158 | 170 | 195 | 230 |
| PN40 | 52.5 | 57.5 | 75 | 75 | 82.5 | 92.5 | 100 | 117.5 | 150 | 167.5 | 187.5 | 205 | 245 |
| PN64 | 65 | 40 | 85 | 85 | 90 | 102.5 | 107.5 | 125 | 172.5 | 195 | 207.5 | 230 | 260 |
| H1 | 208 | 208 | 224 | 228 | 228 | 334 | 334 | 342 | 408 | 453 | 482 | 520 | 550 |
| H2 | 285 | 285 | 285 | 285 | 285 | 360 | 360 | 360 | 470 | 470 | 470 | 580 | 580 |
| H3 | 153 | 153 | 153 | 153 | 153 | 181 | 181 | 181 | 247 | 247 | 247 | / | / |
| C | 282 | 282 | 282 | 282 | 282 | 360 | 360 | 360 | 470 | 470 | 470 | 650 | 650 |
| A | 200 | 200 | 200 | 200 | 200 | 240 | 240 | 240 | 350 | 350 | 350 | 450 | 450 |
| Flange | Executable: GB、HG、JB、DIN、JIS、ANSl Corresponding standard | ||||||||||||
| DN (In) |
20 3/4″ |
25 1″ |
32 1-1/4″ |
40 1-1/2″ |
50 2″ |
65 2-1/2″ |
80 3″ |
100 4″ |
125 5″ |
150 6″ |
200 8″ |
250 10″ |
300 12″ |
| L | |||||||||||||
| PN16/25 | 181 | 184 | 200 | 222 | 254 | 276 | 298 | 352 | 410 | 451 | 600 | 650 | 700 |
| PN40 | 181 | 184 | 200 | 222 | 254 | 276 | 298 | 352 | 410 | 451 | 600 | 670 | 770 |
| PN64 | 210 | 210 | 210 | 251 | 286 | 311 | 337 | 394 | 440 | 508 | 650 | 690 | 800 |
| H | |||||||||||||
| PN16/25 | 52.5 | 57.5 | 75 | 75 | 85.5 | 92.5 | 100 | 110 | 142.5 | 158 | 170 | 195 | 230 |
| PN40 | 52.5 | 57.5 | 75 | 75 | 82.5 | 92.5 | 100 | 117.5 | 150 | 167.5 | 187.5 | 205 | 245 |
| PN64 | 65 | 40 | 85 | 85 | 90 | 102.5 | 107.5 | 125 | 172.5 | 195 | 207.5 | 230 | 260 |
| H1 | 208 | 208 | 224 | 228 | 228 | 334 | 334 | 342 | 408 | 453 | 482 | 520 | 550 |
| H2 | 373 | 373 | 456 | 456 | 538 | 538 | 548 | 548 | 725 | 725 | 725 | 795 | 795 |
| H4 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 |
| A | 225 | 225 | 225 | 225 | 255 | 255 | 255 | 255 | 310 | 310 | 310 | 350 | 350 |
| W | 28 | 28 | 28 | 28 | 45 | 45 | 45 | 45 | 60 | 60 | 60 | 60 | 60 |
| Flange | Executable: GB、HG、JB、DIN、JIS、ANSl Corresponding standard | ||||||||||||
Note: 1.The dimensions in the table are standard data without accessories. The dimensions of accessories are calculated according to the actual configuration.2.Due to the technical innovation and improvement of the product, the size may change. Please contact the technical department of the Company for the latest information. 3.The actuated valve can be customized according to the actual size.
Grease-sealed high-temperature control valves are essential in various industrial settings, providing reliable operation under extreme conditions.
Chemical Processing
In chemical processing, these valves effectively manage the flow of aggressive and high-temperature fluids, ensuring process integrity and safety.
Oil and Gas Industry
Within the oil and gas sector, grease-sealed high-temperature control valves are vital for handling high-pressure and high-temperature operations, maintaining system efficiency and preventing leaks.
Power Generation
In power plants, these valves regulate the flow of steam and other high-temperature media, contributing to efficient energy production and operational stability.
Automotive Industry
In the automotive sector, grease-sealed high-temperature control valves are utilized in engine systems to manage the flow of high-temperature fluids, ensuring optimal performance and longevity of components.
