Body type: Straight-through S-type cast valve
Plug type: Balanced sleeve structure plug
Nominal diameter: DN15~300mm; NPS 1/2″~12″
Nominal pressure: PN1.6~6.4MPa; CLASS 150~300LB
Applicable temperature: +250 to +550°C, dependent on selected construction
Type of connection: Flange, welding, thread (applicable within 1″)
Flange distance: According to IEC 60534
Gland type: Bolt compression type
Sealing gasket: Metal graphite spiral wound gasket
Packing: Flexible graphite
Actuator: Pneumatic actuator, Electric actuator

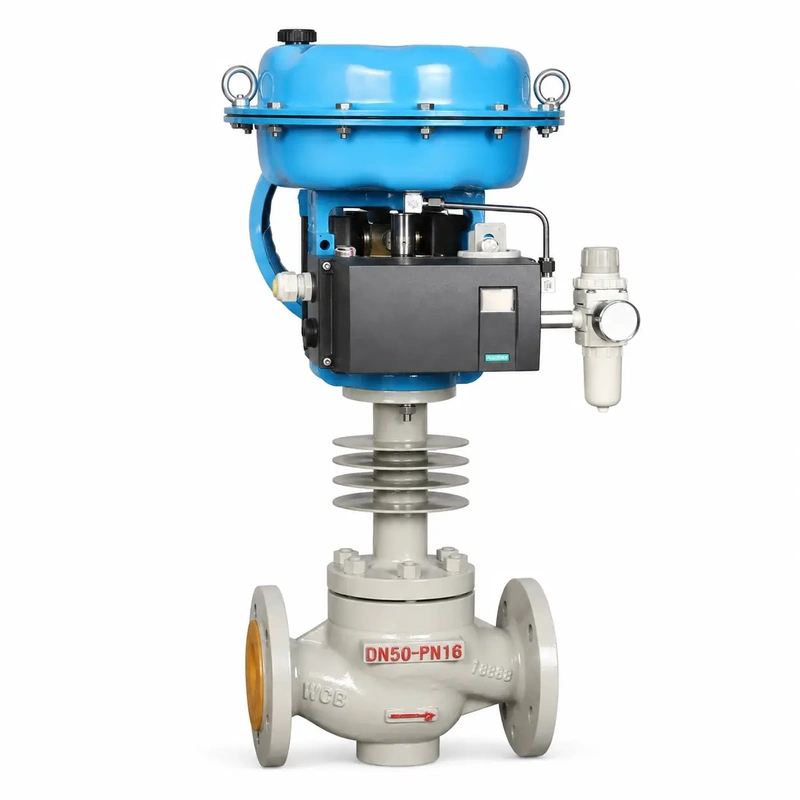

The MacoTango High-Temperature Grease-Injection Control Valve is intended for high-temperature control duties using a grease-injection stem-sealing arrangement.
The injection provision supports the selected sealing system, but its performance depends on the packing construction and the lubricant used. Lubricant compatibility and maintenance access are part of the selection, especially where contamination of the process fluid is unacceptable.
The grease-injection connection provides access to the specified stem-sealing system. Maintenance planning should include the correct lubricant, access space and the conditions under which injection is permitted.
Consider this arrangement for hot process-fluid regulation only after the fluid, temperature cycles and acceptable packing leakage are defined. Injection pressure and maintenance procedures must follow the instructions for the supplied assembly.
| Nominal size | DN15–300 |
|---|---|
| Nominal pressure options | PN16–64; ASME Class 150–300 |
| Temperature envelope | +250 to +550 °C, dependent on the selected construction |
| Trim | Pressure-balanced sleeve trim |
| Stem sealing | Flexible graphite packing with a grease-injection arrangement |
| Bonnet | Heat-dissipating construction |
| Body construction | Straight-through S-pattern cast body |
| Connections | Flanged or welded; threaded configurations limited to small sizes |
| Actuation | Pneumatic or electric; sized for the operating differential pressure |
| Rating basis | Series options are not simultaneous operating limits. Select the size, material, seat and pressure-temperature combination for the stated duty. |
For a configuration-specific quotation, send the following information:
We will confirm the final configuration and datasheet against the stated duty before order acceptance.
No. The lubricant must suit the temperature, packing and process fluid. Use the lubricant and procedure specified for the supplied valve.
No. Packing condition, stem movement and external leakage still need inspection according to the service and maintenance instructions.
The MacoTango High-Temperature Grease-Injection Control Valve is intended for high-temperature control duties using a grease-injection stem-sealing arrangement.
The injection provision supports the selected sealing system, but its performance depends on the packing construction and the lubricant used. Lubricant compatibility and maintenance access are part of the selection, especially where contamination of the process fluid is unacceptable.
The grease-injection connection provides access to the specified stem-sealing system. Maintenance planning should include the correct lubricant, access space and the conditions under which injection is permitted.
Consider this arrangement for hot process-fluid regulation only after the fluid, temperature cycles and acceptable packing leakage are defined. Injection pressure and maintenance procedures must follow the instructions for the supplied assembly.
| Nominal size | DN15–300 |
|---|---|
| Nominal pressure options | PN16–64; ASME Class 150–300 |
| Temperature envelope | +250 to +550 °C, dependent on the selected construction |
| Trim | Pressure-balanced sleeve trim |
| Stem sealing | Flexible graphite packing with a grease-injection arrangement |
| Bonnet | Heat-dissipating construction |
| Body construction | Straight-through S-pattern cast body |
| Connections | Flanged or welded; threaded configurations limited to small sizes |
| Actuation | Pneumatic or electric; sized for the operating differential pressure |
| Rating basis | Series options are not simultaneous operating limits. Select the size, material, seat and pressure-temperature combination for the stated duty. |
