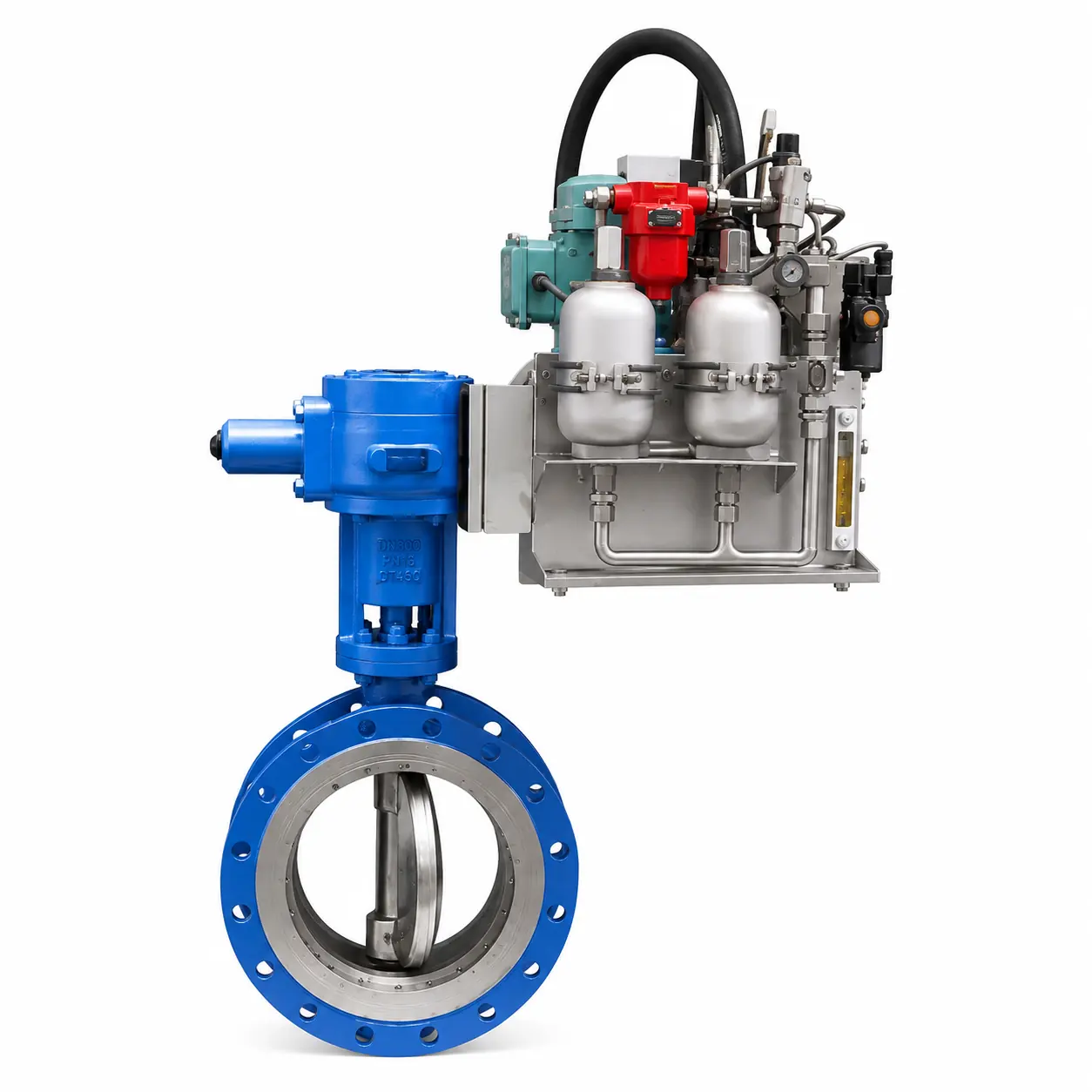

Hydraulic Operated Butterfly Valve

Home » Products » Hydraulic Operated Butterfly Valve

Hydraulic Operated Butterfly Valve

Size Range:DN50 ~ 1600

Body material: A216-WCB, A351-CF8/CF8M, A351-CF3/CF3M

Connection Options:flange type, wafer type

Working Pressure: PN 16 ~ 40

Working Temperature:-40ºC~+80ºC

Sealing Options:PTFE, flexible graphite

Applicable Medium:Water, Oil, Gas, Air, Chemical Fluids

Product Overview

The Hydraulic Operated Butterfly Valve is designed for efficient control of fluid flow in various industrial applications. Featuring a robust hydraulic actuator, this valve ensures reliable performance in high-pressure systems. Its butterfly-style design allows for quick and precise operation, making it ideal for regulating flow in pipelines carrying water, oil, gas, and other fluids. Available in a wide range of sizes, it offers flexibility in installation, ensuring compatibility with different pipeline standards. The hydraulic actuator allows for smooth, controlled operation, while the valve body material options such as WCB, LCC, and others provide excellent durability and resistance to corrosion. This valve is widely used in sectors like oil & gas, water treatment, and chemical industries for applications requiring reliable flow regulation under varying conditions.

Product Features

Hydraulic Actuation: Powered by hydraulic systems, providing reliable and efficient operation in various industrial applications.
Durable Construction: Made from high-quality materials such as carbon steel, stainless steel, and other alloys for long-lasting performance in harsh environments.
High Pressure & Temperature Resistance: Suitable for high-pressure and high-temperature systems, ensuring durability and consistent performance under extreme conditions.
Precise Flow Control: Offers excellent regulation of flow, providing smooth and accurate shutoff control.
Compact Design: Designed for easy installation and space-saving, ideal for systems where space is limited.
Leak-Free Sealing: Features a reliable sealing mechanism that prevents leakage, ensuring optimal system efficiency.
Corrosion-Resistant: Built to withstand corrosive environments, including water, oil, and chemical fluids.
Low Maintenance: The design minimizes the need for regular maintenance, reducing operational costs and downtime.
Wide Range of Sizes: Available in sizes from 2″ to 48″, suitable for various pipeline systems and applications.
Versatile Applications: Ideal for use in water treatment plants, HVAC systems, power plants, chemical processing, and more.

Specification Parameters

Standard	Design and manufacturing	Face-to-face dimensions	Flange dimensions	Pressure and temperature ratings	Inspection and testing	Leakage class
National standards and industry standards	GB/T12224, GB/T12238, JB/T8527	GB/T12221	GB/T91129124, HG/T2059220635, SH3406JB/T79	GB/T9124, GB/T12224	JB/T9092, GB/T13927	GB/T4213
American Standard	API609	API609	ASME B16.5, ASME B16.47	ASME B16.34	API598	ANSI/FCI70-2, ASME B16.104
Other national standards		JIS B2002, ISO5752	EN1092

Specification Applications

The Hydraulic Operated Butterfly Valve is commonly used in industrial applications where precise flow control is required. It is ideal for water, oil, gas, and chemical fluids systems, and is especially suitable for large pipelines, HVAC systems, and water treatment plants. The valve’s hydraulic operation ensures smooth opening and closing, making it efficient for handling high-pressure and high-flow conditions. It is widely applied in sectors such as power generation, oil and gas, chemical processing, and municipal water systems, where reliable, durable, and automated valve solutions are essential for efficient system performance and minimal maintenance.
