Material:Carbon Steel (WCB, WCC for strength), Stainless Steel (SS304, SS316 for corrosion resistance), Cast Iron
Size Range:2″ to 48″ (DN50-DN1200)
Connection Options:Bevel Gear Operated
Working Pressure:Class 150 to Class 1500 (up to 2,500 psi / 172 bar)
Working Temperature:-29°C to 425°C
Sealing Options:Metal-to-Metal, Resilient Seat, Graphite, PTFE
Manufacturing Method:Cast, Forged, Machined
Applicable Medium:Water, Oil, Gas, Steam, Chemical Fluids
Manufacturing Standard:API 600, API 602, ASME B16.34, BS 5163, DIN 3352

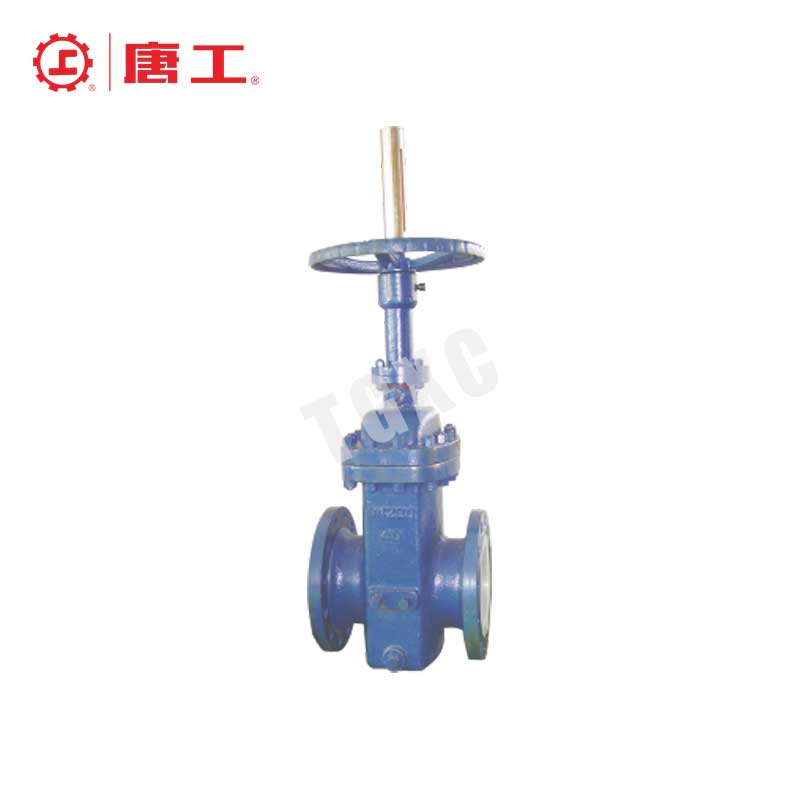

Gate valves are used to completely shut off or allow full flow in a pipeline. They are commonly used when a straight-line flow of fluid and minimum flow restriction are required. The gate valve operates by lifting a gate (wedge) out of the path of the fluid, providing a full, unrestricted flow when open. Made from high-quality materials including carbon steel, stainless steel, and cast iron, these valves are designed to provide durability, corrosion resistance, and reliable service across various industrial applications.
Full Port Flow: Provides an unobstructed flow path, resulting in minimal pressure drop when fully open.
Reliable Sealing: Metal-to-metal or resilient seating options provide tight sealing, minimizing leakage.
Corrosion Resistant: Manufactured from materials such as stainless steel, cast iron, and bronze for excellent corrosion resistance.
Versatile Connection Options: Available in flanged, threaded, butt weld, and socket weld connections to accommodate a variety of piping systems.
Durable Construction: Forged or cast body for enhanced strength and extended service life.
Manual, Gear, or Actuated Operation: Can be operated manually using a handwheel, by a gearbox, or automated with electric or pneumatic actuators.
Structural Length Standard:
According to ASME B16.10, DIN 3202, BS EN 558
Connection Forms Standards:
Flanged per ASME B16.5, Threaded (NPT, BSP) per ANSI/ASME B1.20.1, Butt Weld per ASME B16.25, Socket Weld per ASME B16.11
Available Sizes (Caliber):
2″, 3″, 4″, 6″, 8″, 10″, 12″, 14″, 16″, 18″, 20″, 24″, 30″, 36″, 42″, 48″
Pressure-Temperature Rating:
Class 150, 300, 600, 900, 1500 as per API 600 and ASME B16.34
Pressure Range:
Up to 2,500 psi depending on size and material
Temperature Range:
-29°C to 425°C depending on material and sealing options
