Size Range: DN50-DN400
Pressure Range: 1.0MPa-2.5MPa
End Connection: Flanged
Material: Ductile iron, stainless steel (internal components)
Seals: NBR/EPDM
Valve Design: Multi-function hydraulic control with pilot-operated mechanism
Face to Face: Compliant with EN558-1 standards
End Connection: ISO 7005-2 Flanged
Testing & Inspection: ISO 5208 compliant
Suitable Medium: Water, air, and non-corrosive fluids

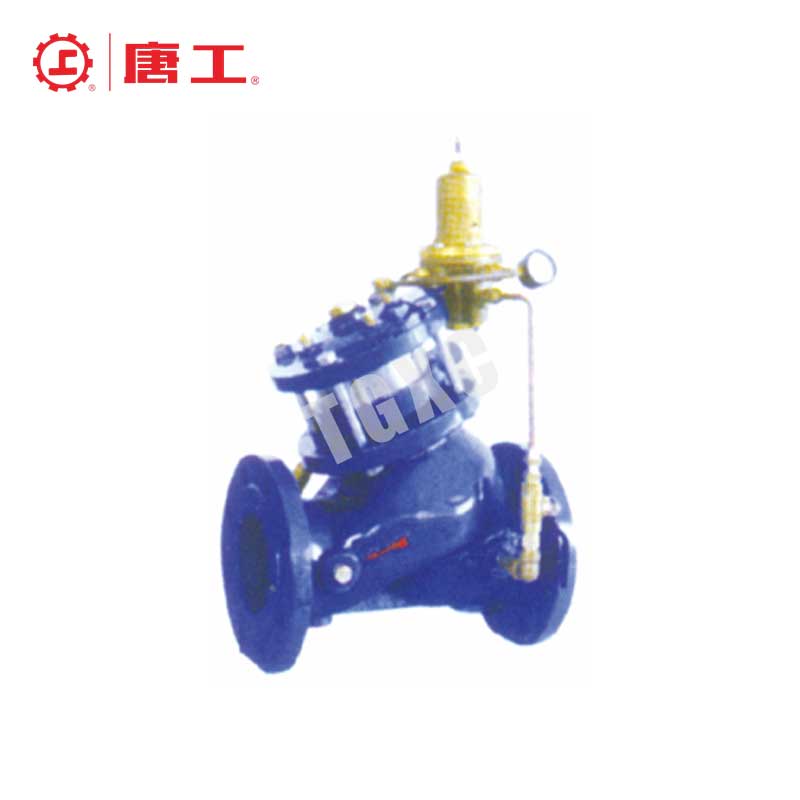

The Multi-Function Hydraulic Control Valve is a versatile solution designed for controlling flow, pressure, and direction in pipelines. With a robust pilot-operated hydraulic mechanism, it ensures precise and stable operation, catering to a variety of industrial and municipal applications. Its durable construction and advanced sealing technology make it reliable in demanding environments.
Multi-functional control for flow, pressure, and direction
Pilot-operated mechanism for precise regulation
Corrosion-resistant materials for enhanced durability
Minimal maintenance requirements for cost efficiency
Suitable for water, air, and non-corrosive fluid systems
Design and Manufacturing Standards: EN ISO 4126, ASME BPVC Section VIII
Structural Length Standard: EN558-1 Series 1
Connection Forms Standards: ISO 7005-2 (Flanged)
Available Sizes (Caliber): DN50-DN400
Pressure-Temperature Rating:
Standard: PN10, PN16, PN25
Pressure Range: 1.0MPa-2.5MPa
Temperature Range: -10°C to 80°C
Municipal water supply and pressure management
Industrial pipelines requiring versatile flow control
HVAC systems for efficient fluid regulation
Energy and power plant applications for system optimization
