Size: 1/4″ to 2″
Body Material: Stainless Steel 316
Handles Material: Stainless Steel 304
Port Type: Full Port Ball Valve
End Connection: Threaded (FNPT X FNPT)
Temperature Rating: -20°C ~ 150°C
Pressure Class: 1000 PSI
Seal: PTFE

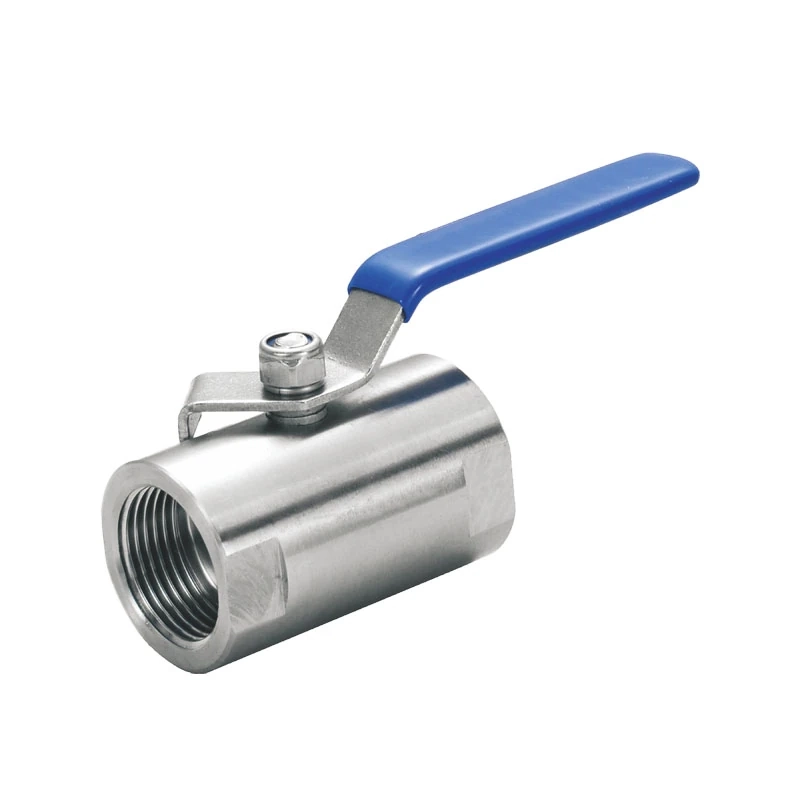

A one piece ball valve with threaded full port design offers reliable shut-off performance in a compact, cost-effective body. The single-body construction reduces potential leak paths, while the full port allows near-unrestricted flow and minimal pressure drop. Designed for quick installation using threaded connections, this valve is well suited to general industrial, water, oil, and gas applications where space is limited and routine maintenance is not required.
| Size | d | L | L1 | H | W |
| 1/4″ | 8 | 60 | 85 | 56 | 110 |
| 3/8″ | 10 | 60 | 85 | 58 | 110 |
| 1/2″ | 10 | 60 | 85 | 58 | 110 |
| 3/4″ | 13.5 | 67.3 | 90 | 62 | 110 |
| 1″ | 18 | 73 | 100 | 68 | 110 |
| 1-1/4″ | 22 | 90 | 120 | 75 | 150 |
| 1-1/2″ | 26 | 97.5 | 135 | 83 | 150 |
| 2″ | 32.8 | 112 | 140 | 90 | 150 |
