Type: 2 Way
Material: Stainless Steel, ASTM A351-CF8M
Size: 1/4″ to 1″
Connection: BSPP
Working Pressure: 3000 PSI to 10000 PSI
Working Temperature: -20°C to 200°C
Handle Material: AISI 304
Applicable Medium: Oil, Gas, Water
Compliance/Certifications: ISO-5211

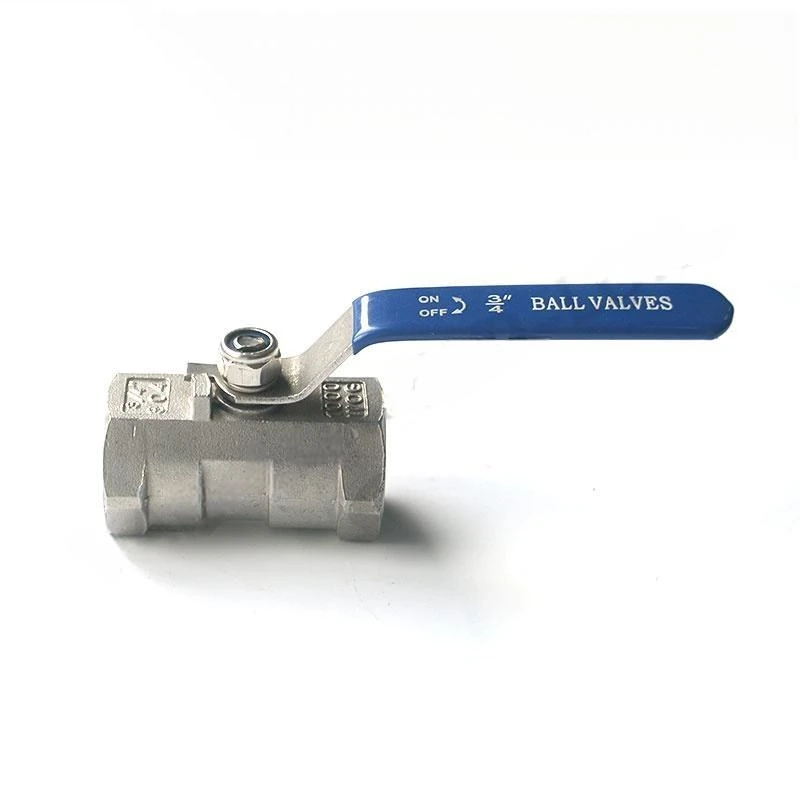

Ball valves are designed for efficient on/off control of fluid flow in a wide range of industrial applications. These valves feature a spherical disc to control the flow and are known for their excellent sealing capabilities and ease of operation. Constructed with high-quality materials such as stainless steel, ball valves are ideal for demanding environments and can handle high-pressure and high-temperature conditions.
On/Off Control: Ball valves provide efficient and reliable shut-off capabilities with minimal pressure drop.
Full Bore Design: Allows for maximum flow and minimal turbulence when the valve is fully open, reducing energy losses.
High-Pressure Capability: Can handle pressures from 3000 PSI to 10000 PSI, making it suitable for high-pressure applications.
Corrosion Resistant: Constructed with stainless steel (SS304, SS316) for excellent resistance to corrosion in harsh environments.
Leakage Prevention: Equipped with high-quality sealing materials such as PTFE, VITON, PEEK, and Graphite to ensure zero leakage under extreme conditions.
Easy Operation: The quarter-turn operation allows for quick and easy control of fluid flow.
| Type | Reduced Bore, 2 Way |
| Ball Material | Stainless Steel |
| Attachment Type | Threaded |
| Thread Standard | BSPP |
| Thread Size | 38.1mm |
| Body Material | Stainless Steel |
| Safe for Use With | Gas, Oil, Water |
| Handle Type | Lever |
| Handle Material | PVC Coated Steel |
| Maximum Working Pressure psi | 1000psi |
| Operating Pressure | 68bar |
| Handle Colour | Blue |
| Maximum Working Pressure bar | 68bar |
| ITEM | PARTS | MATERIAL | |
| 1 | BODY | ASTM A351-CF8M | ASTM A351-CF8 |
| 2 | RETAINER | ||
| 3 | BALL | ASTM A351-CF8M | |
| 4 | SEAT A | PTFE / RTFE | |
| 5 | SEAT B | ||
| 6 | STEM | AISI 316 | AISI 304 |
| 7 | THRUST WASHER | PTFE | |
| 8 | PACKING | ||
| 9 | GLAND RING | AISI 304 | |
| 10 | SPRING WASHER | ||
| 11 | STEM NUT | ||
| 12 | HANDLE | ||
| 13 | HANDLE SLEEVE | PLASTIC | |
| DN | d | L | W | H |
|---|---|---|---|---|
| 8 | 5 | 39 | 71 | 33 |
| 10 | 7 | 44 | 91 | 35 |
| 15 | 9.2 | 55 | 95 | 40 |
| 20 | 12.5 | 59 | 95 | 44 |
| 25 | 15 | 69 | 113 | 50 |
| 32 | 20 | 77 | 113 | 57 |
| 40 | 25 | 81 | 141 | 64 |
| 50 | 32 | 97 | 141 | 68 |
| 65 | 38 | 127 | 190 | 85 |
| 80 | 50 | 153 | 190 | 90 |
| NPS | d | L | W | H |
|---|---|---|---|---|
| 1/4″ | 0.2 | 1.54 | 2.8 | 1.3 |
| 3/8″ | 0.28 | 1.73 | 3.58 | 1.38 |
| 1/2″ | 0.36 | 2.17 | 3.74 | 1.57 |
| 3/4″ | 0.49 | 2.32 | 3.74 | 1.73 |
| 1″ | 0.59 | 2.72 | 4.45 | 1.97 |
| 1-1/4″ | 0.79 | 3.03 | 4.45 | 2.24 |
| 1-1/2″ | 0.98 | 3.19 | 5.55 | 2.52 |
| 2″ | 1.26 | 3.82 | 5.55 | 2.68 |
| 2-1/2″ | 1.5 | 5 | 7.48 | 3.35 |
| 3″ | 1.97 | 6.02 | 7.48 | 3.54 |
