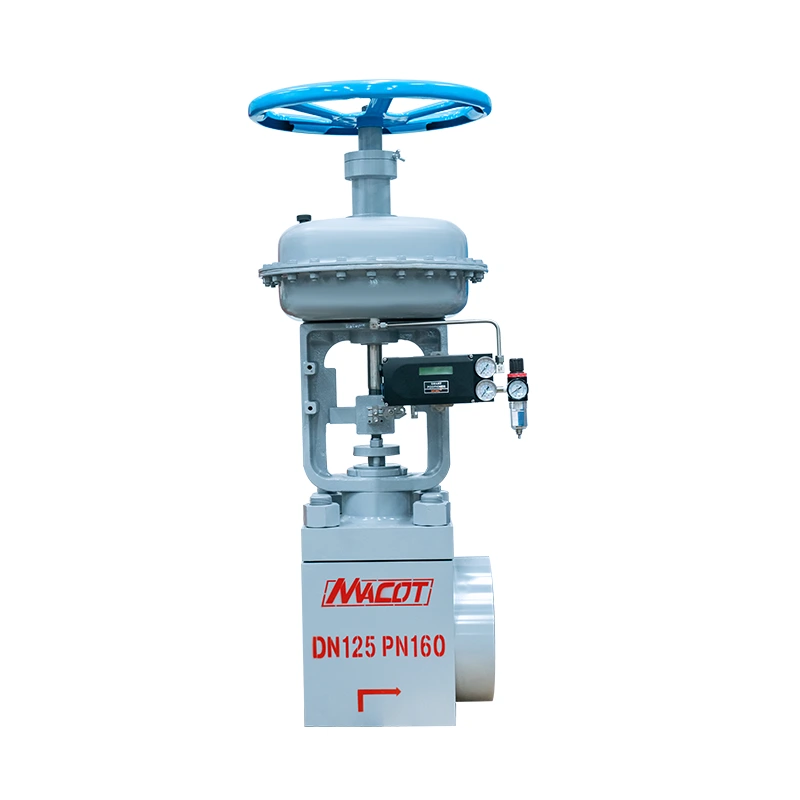

Pneumatic Angle Type Control Valve

Valve Type: Angle-body single-seat control valve
Size Range: DN25 to DN200
Pressure Rating: PN16 to PN100 / Class 150 to 600
Temperature Range: Standard bonnet -29°C to 230°C
Actuator: Pneumatic actuator

Product Overview

The Pneumatic Angle Type Control Valve is an angle-body control valve for compact piping layouts and demanding process control duties. The angled flow path helps simplify pipe routing, reduce installation space, and support stable throttling where media behavior or site layout makes a straight-through body less suitable. It is a practical option for projects requiring Pneumatic Angle Type Control Valve with pneumatic automation and project-specific trim selection.

Product Features

Angle-body flow path supports compact pipe routing and process control in restricted layouts.
Pneumatic actuator packages can be matched with positioners for modulating service.
Trim, packing, and body materials can be selected according to media and temperature requirements.
Suitable for throttling, pressure control, and flow control duties where an angled body is preferred.
Connection style and control accessories can be configured for the project specification.

Specification Parameters

Item	Specification
Valve Type	Angle-body single-seat control valve
Size Range	DN25 to DN200
Pressure Rating	PN16 to PN100 / Class 150 to 600
Temperature Range	Standard bonnet -29°C to 230°C; heat-dissipation and low-temperature bonnet options by catalog
Body Materials	WCB, CF8, CF8M or specified alloy
Trim / Seat Materials	Single-seat guided trim; soft seat option for Class VI
Flow Characteristic	Equal percentage or linear
Leakage Class	Class IV, V or VI
Body Style	Angle-body flow path for self-cleaning and compact piping
End Connection	Flanged or welded
Testing Standard	GB/T 4213-2008; ASME B16.104-1998 / ANSI FCI 70-2 where applicable
Actuator / Control	Pneumatic actuator

Specification Applications

Chemical and petrochemical process control loops
Steam, condensate, and utility piping with compact routing
Pressure, flow, and temperature regulation in industrial systems
Media services where an angle-body valve helps reduce piping complexity
Automated skids and equipment packages requiring pneumatic control
