Product Type: Pneumatic On-Off Globe Valve
Operation: Pneumatic
Nominal Size: DN50–DN500
Nominal Pressure: 1.0–10.0 MPa
Working Differential Pressure: 0–10.0 MPa
Applicable Media: Water, steam, oil and gases
Medium Temperature: -29°C to +180°C
Body Materials: WCB, CF8

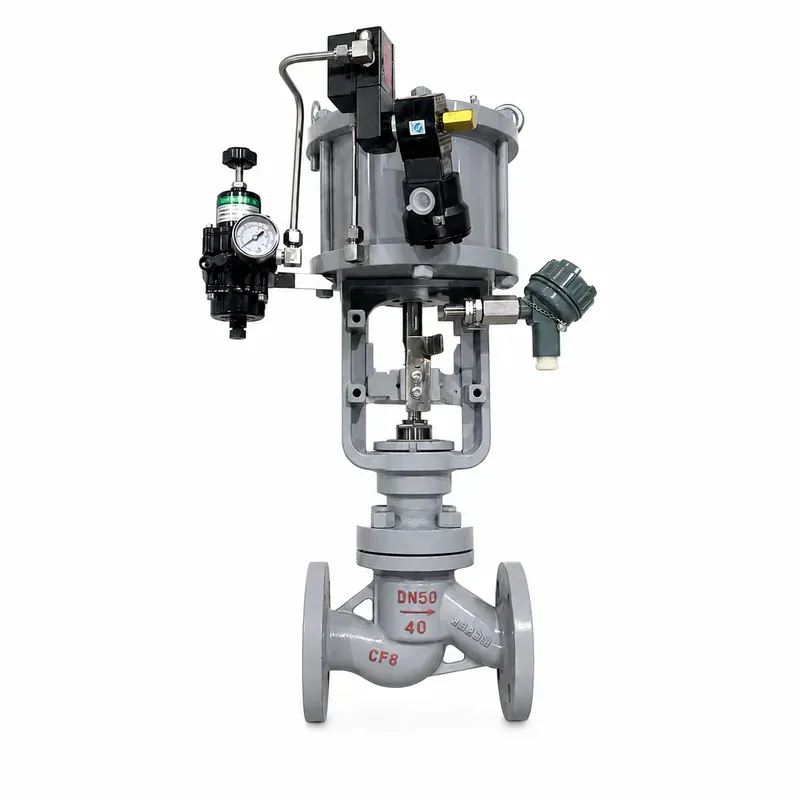

The Pneumatic On-Off Globe Valve is a fast-acting, high-cycle shut-off valve designed for automated process pipelines, particularly Pressure Swing Adsorption (PSA) gas separation systems. Pneumatic actuation provides rapid and reliable opening and closing for applications that require frequent switching between operating steps.
The valve combines a pneumatic cylinder, packing assembly, bonnet/support structure, valve body and shut-off trim into a compact automated package. Its design supports in-line maintenance, allowing service of key internal components without removing the valve body from the pipeline. Wear-resistant packing and specially designed shut-off trim help maintain reliable sealing during repeated cycling.
It is widely used in PSA gas separation, gas purification, drying, alcohol dehydration, air separation and other automated gas-processing systems.
Fast On-Off Operation
Pneumatic actuation provides rapid opening and closing with flexible and reliable response for programmed switching duties.
High-Cycle Shut-Off Performance
Designed to maintain reliable sealing performance under frequent opening and closing conditions, making the valve suitable for cyclic PSA and gas separation processes.
In-Line Maintenance
The valve can be serviced without removing the complete valve body from the pipeline, reducing maintenance work and plant downtime.
Self-Compensating V-Ring Packing
The packing box uses wear-resistant V-shaped self-tightening sealing rings that compensate for wear and help maintain long-term stem sealing.
Erosion-Resistant Shut-Off Trim
A specially designed valve plug and sealing structure use suitable materials to resist erosion and provide reliable tight shut-off and extended service life.
Direct Solenoid Valve Integration
The pneumatic cylinder can be configured for direct, tubeless connection with the solenoid valve, simplifying the pneumatic control arrangement and improving response.
Design and Manufacturing Standard: GB/T 12235
Face-to-Face Dimension: GB/T 12221
Flange Dimensions: GB/T 9115, JB/T 79
Weld-End Dimensions: GB/T 12224
Inspection and Testing: JB/T 9092, GB/T 13927
Carbon Steel Material Standard: GB/T 12229
Stainless Steel Material Standard: GB/T 12230
Alloy Steel Material Standard: JB/T 5263
Valve Marking: GB/T 12220
Supply Requirements: JB/T 7928
The Pneumatic On-Off Globe Valve is primarily used as a programmed opening and closing element in automated industrial pipelines where fast response, frequent cycling and reliable shut-off are required.
Typical applications include:
The valve is particularly suitable for PSA and gas-processing pipelines handling gases such as hydrogen, carbon dioxide, nitrogen, reformer gas, catalytic cracking dry gas and shift gas, where valves are required to perform repeated programmed on-off cycles.
