Material: Stainless steel grades 304 or 316L
Size Range: 1/2″-12″ (DN10 to DN300)
Connection Options: Clamp, weld, threaded, and flange
Working Pressure: Generally up to 10 bar (145 psi)
Working Temperature: Ranges from -10°C to 130°C,
Sealing Options: EPDM, Silicone, FKM/FPM, and PTFE,
Manufacturing Method: casting or forging
Applicable Medium:water, dairy products, pharmaceuticals

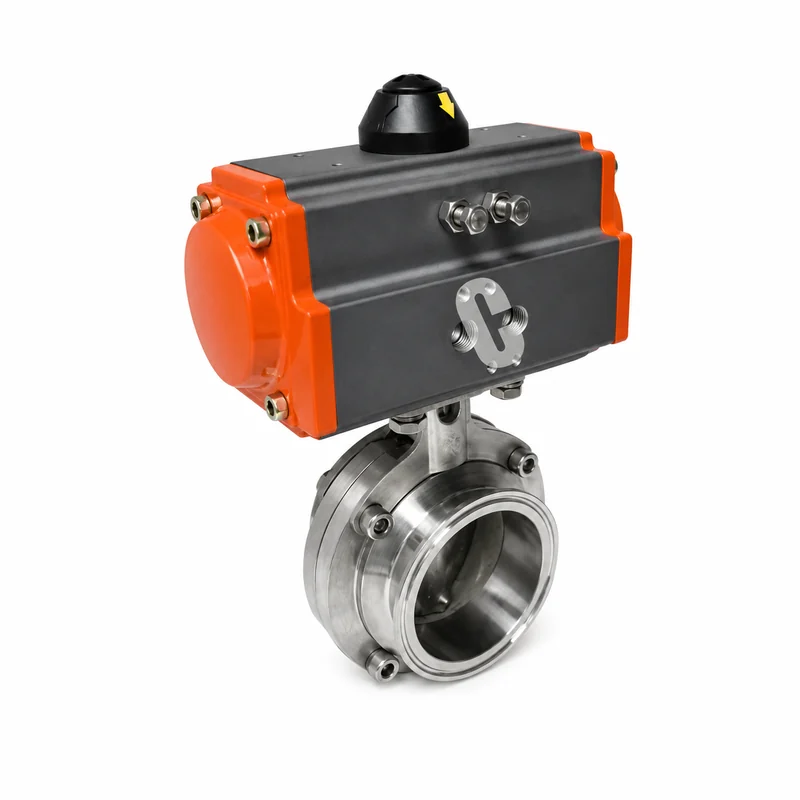

A Pneumatic Sanitary Butterfly Valve is a flow control device designed for hygienic applications, utilizing a pneumatic actuator for automated operation. Its design ensures minimal fluid resistance and ease of cleaning, making it ideal for industries requiring strict sanitary standards.
Automated Operation: Pneumatic actuation allows for rapid and precise control of fluid flow.
Hygienic Design: Smooth surfaces and crevice-free construction prevent bacterial growth and facilitate easy cleaning.
Versatile Sealing Options: Available with various seal materials to accommodate different media and temperature requirements.
Durable Construction: Manufactured from high-quality materials to withstand rigorous cleaning processes and prolonged use.
Easy Maintenance: Simple design with fewer moving parts reduces maintenance needs and downtime.
Manufacturing Standard: Complies with standards such as 3A, FDA, and EHEDG for sanitary equipment.
Structural Length Standard: Adheres to ISO 5752 or ASME B16.10 for face-to-face dimensions.
Connection Forms Standards: Follows ASME BPE, DIN 11850, or ISO 1127 standards for hygienic connections.
Available Sizes (Caliber): DN10 to DN300 (1/2 inch to 12 inches).
Pressure-Temperature Rating: Dependent on valve size, material, and seal; consult manufacturer specifications.
Pressure Range: Up to 10 bar (145 psi).
Temperature Range: -10°C to 130°C, depending on seal material.
Food and Beverage Processing: Controls the flow of liquids in dairy, brewing, and beverage production.
Pharmaceutical Manufacturing: Ensures sterile conditions in the production of medicines and medical devices.
Biotechnology: Manages the flow of sensitive biological fluids in research and production facilities.
Cosmetics Production: Maintains hygiene standards in the manufacturing of personal care products.
Clean-in-Place (CIP) Systems: Facilitates automated cleaning processes in various industries.
