Material: Ductile iron, stainless steel (304, 316), or carbon steel.
Size Range: DN40 to DN1000
Connection Options: Wafer, lug, and flanged connections are standard.
Working Pressure: Standard pressure ratings include PN10, PN16, and PN25.
Working Temperature: Operating temperatures vary based on seal material:
Sealing Options: Soft seals EPDM, NBR, PTFE, or Viton.
Manufacturing Method: Casting or forging processes.
Applicable Medium: Suitable for water, air, oil, and other non-corrosive fluids.

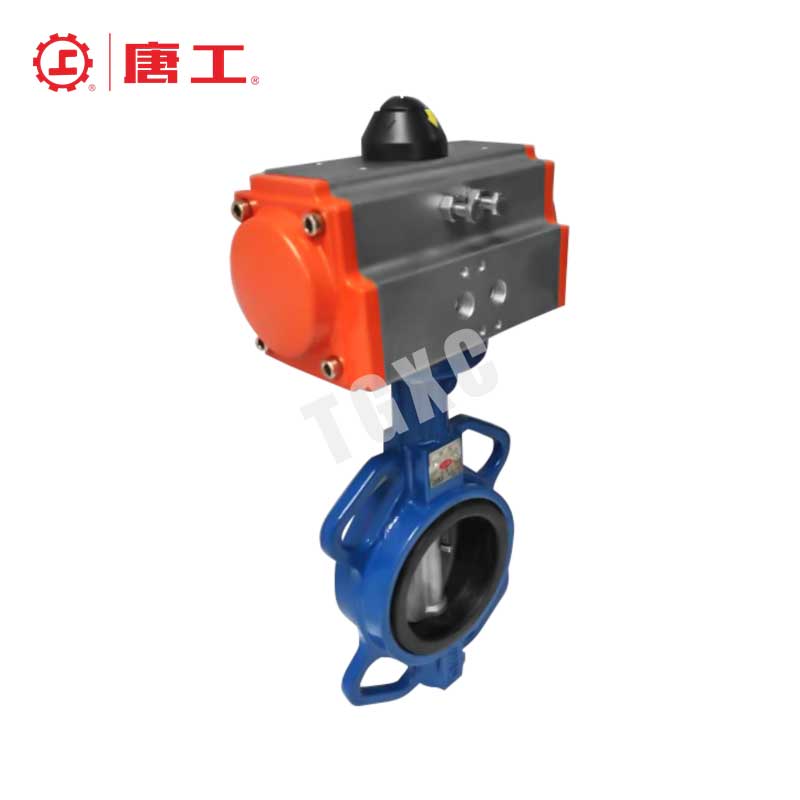

A Pneumatic Soft Seal Butterfly Valve is an industrial valve designed for efficient flow control, utilizing a pneumatic actuator for automation and a soft sealing mechanism to ensure tight shutoff.
Quick Operation: Pneumatic actuation allows for rapid opening and closing, enhancing process efficiency.
Reliable Sealing: Soft seals, typically made from materials like EPDM or NBR, provide effective sealing to prevent leaks.
Versatile Installation: Available in various connection types, including wafer, lug, and flanged, to suit different piping systems.
Durable Construction: Manufactured from materials such as ductile iron, stainless steel, or carbon steel to withstand various operating conditions.
Low Maintenance: Simple design with fewer moving parts reduces maintenance requirements.
Design and Manufacturing Standards:GB/T 12237, API 6D, ASME B16.34
Structural Length Standard: GB/T 12221, ASME B16.10
Connection Forms Standards:
o Flanged Connections: HG/T 20592-20605, GB/T 9112-9124, ASME B16.5
o Threaded Connections: NPT, BSP, per ISO 7-1
o Wafer Type: ASME B16.5
o PVC Connections: ISO 4422 (for PVC valves)
Inspection and Test Standards: API 598, GB/T 13927
Available Sizes (Caliber)
• Range: 1/2″ ~ 48″ (DN15 ~ DN1200)
Pressure-Temperature Rating
• Standard: ASME B16.34, GB/T 12224
• Pressure Range:
o PN1.6 MPa ~ PN40 MPa
o Class 150 ~ Class 2500
• Temperature Range:
o -20°C to +200°C (-4°F to 392°F) for soft-seal and standard applications
o Up to +450°C (842°F) for metal-sealed valves
Water Treatment: Regulates flow in water distribution and treatment facilities.
HVAC Systems: Controls air flow in heating, ventilation, and air conditioning systems.
Chemical Processing: Manages the flow of non-corrosive chemicals and fluids.
Food and Beverage: Suitable for sanitary applications requiring cleanable and reliable valves.
General Industrial Use: Applicable in various industries for controlling the flow of gases and liquids.
Discover our premium valve solutions and boost your efficiency. Contact
us now to find out how we can support your needs with top-quality
products and exceptional service.
