Design and manufacturing:GB/T 12237, API 6D, ASME B16.34
The structural length: GB/T 12221, ASME B16.10
Connection forms:HG/T 20592-20605, GB/T 9112-9124, ASME B16.5
Inspection and test:API 598, GB/T 13927
Caliber:1/2″ ~ 12″ (DN15 ~ DN300)
Pressure temporature level:ASME B16.34, GB/T 12224
Drive mode: Pneumatic
Pressure: 150 PSI to 1500 PSI

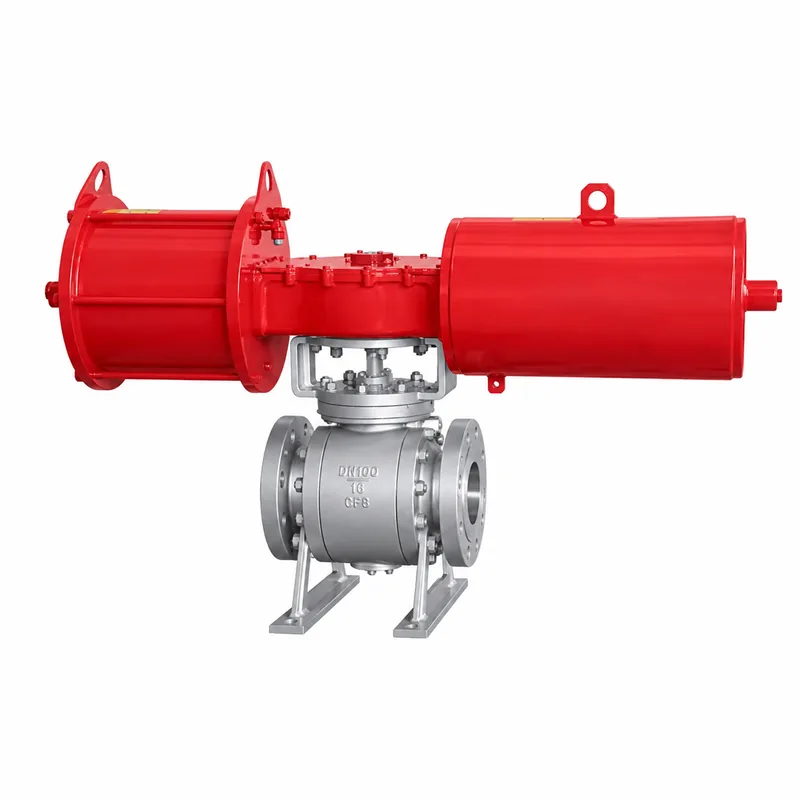

A Pneumatic Three-Piece Fixed Ball Valve is engineered for precise flow control in industrial applications. Its three-piece construction allows for easy maintenance and versatility, while the pneumatic actuator enables automated operation for efficient fluid management.
Three-Piece Design: Facilitates straightforward disassembly for cleaning and maintenance without removing the valve from the pipeline.
Pneumatic Actuation: Provides rapid and reliable valve operation, suitable for automated systems.
Fixed Ball Mechanism: Ensures consistent sealing and reduces wear, enhancing durability.
Versatile Sealing Options: Available with various seat materials to accommodate different media and temperatures.
Robust Construction: Manufactured from materials like stainless steel or carbon steel to withstand demanding environments.
Manufacturing Method: Produced through precision casting or forging processes to ensure structural integrity and performance.
Applicable Medium: Compatible with liquids, gases, and slurries, including water, oil, gas, and chemicals.
Manufacturing Standard: Conforms to standards such as API 6D, ASME B16.34, and ISO 5211, ensuring quality and interoperability.
Structural Length Standard: Adheres to ASME B16.10, which specifies face-to-face and end-to-end dimensions for valves.
Connection Forms Standards: Follows ASME B16.5 for flanged connections and ASME B1.20.1 for threaded connections.
Available Sizes (Caliber): Standard sizes range from DN15 to DN300, with larger sizes available upon request.
Pressure-Temperature Rating: Complies with ASME B16.34, detailing pressure-temperature ratings for various materials.
Pressure Range: Supports pressure classes from PN10 to PN100, accommodating different system requirements.
Temperature Range: Operates effectively within -20°C to 200°C, with specific ranges depending on material selection.
Chemical Processing: Controls the flow of corrosive or hazardous chemicals.
Oil and Gas Industry: Manages the transfer of hydrocarbons under high pressure.
Water Treatment: Regulates water flow in purification and distribution systems.
Pharmaceutical Manufacturing: Ensures sterile conditions by controlling fluid movement.
Food and Beverage Industry: Maintains hygiene standards by managing the flow of liquids and gases.
