Design and manufacturing:GB/T 12237, API 6D, ASME B16.34
The structural length: GB/T 12221, ASME B16.10
Connection forms:HG/T 20592-20605, GB/T 9112-9124, ASME B16.5
Inspection and test:API 598, GB/T 13927
Caliber:1/2″ ~ 12″ (DN 6 to DN 300)
Pressure temporature level:ASME B16.34, GB/T 12224
Drive mode:Pneumatic
Pressure:Up to ASME Class 600,

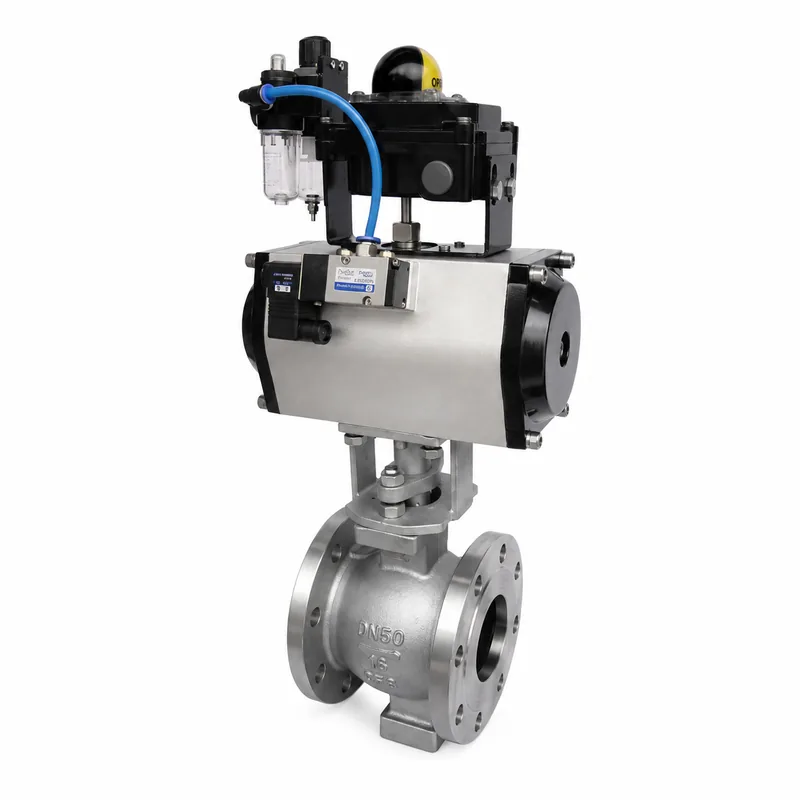

A Pneumatic V-Ball Valve is a rotary control valve featuring a V-shaped notch in its ball component, enabling precise flow regulation. The integration of a pneumatic actuator allows for automated, rapid, and accurate adjustments, making it suitable for various industrial applications.
Precise Flow Control: The V-notch design offers an equal percentage flow characteristic, facilitating accurate modulation across a wide range of flow rates.
High Rangeability: Capable of controlling flow rates from minimal to maximum capacity, providing versatility in process control.
Quick Response: Pneumatic actuation ensures swift operation, enhancing process efficiency.
Durable Construction: Manufactured from robust materials to withstand harsh industrial environments.
Low Maintenance: Designed for reliability and longevity, reducing downtime and maintenance costs.
Manufacturing Method: Produced through precision casting or forging processes to ensure high-quality construction.
Applicable Medium: Suitable for liquids, gases, and slurries, including corrosive and abrasive substances.
Manufacturing Standard: Conforms to standards such as ASME B16.34 for valve design and API 598 for testing.
Structural Length Standard: Adheres to ASME B16.10 for face-to-face dimensions, ensuring compatibility with existing piping systems.
Connection Forms Standards: Follows ASME B16.5 for flanged connections and ASME B1.20.1 for threaded connections.
Available Sizes (Caliber): Standard sizes range from ¼ inch to 12 inches, with larger sizes available upon request.
Pressure-Temperature Rating: Rated according to ASME B16.34, correlating pressure limits with temperature ranges for safe operation.
Pressure Range: Typically supports pressures from Class 150 to Class 600, depending on design and material.
Temperature Range: Capable of operating between -50°F to 650°F (-46°C to 343°C), accommodating various industrial processes.
Chemical Processing: Regulates the flow of various chemicals with precision.
Water Treatment: Controls water flow in treatment plants and distribution systems.
Oil and Gas: Manages the flow of hydrocarbons in pipelines and processing facilities.
Food and Beverage: Ensures sanitary flow control in production lines.
HVAC Systems: Regulates air and fluid flow in heating, ventilation, and air conditioning systems.
