Model: MCV-122
Nominal Size: DN40 to DN400
Pressure Class: PN16 to PN100; ASME Class 150 to 600
Rangeability: 50:1; 75:1 optional
Flow Characteristic: Equal percentage or linear
Leakage Class: Class IV; Class V optional; Class VI with soft seat

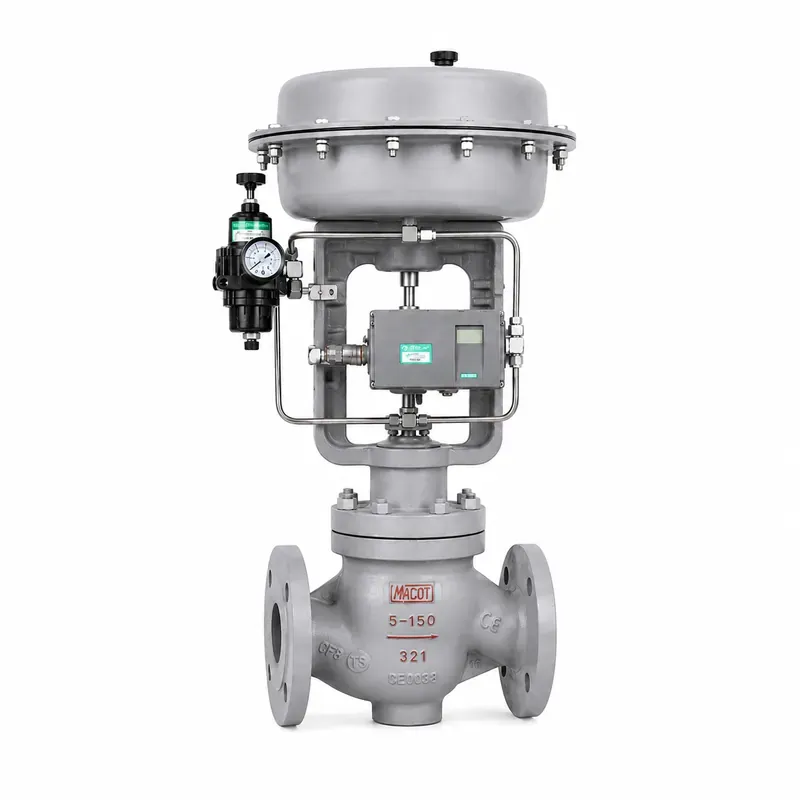

Balanced Cage-Guided Globe Control Valve is for severe service with high allowable differential pressure. The balanced trim supports stable operation, while the cage-guided construction is suited to low-noise, flashing, and cavitation-prone duties.
| Item | Specification |
|---|---|
| Nominal Size | DN40 to DN400 |
| Pressure Class | PN16 to PN100; ASME Class 150 to 600 |
| Rangeability | 50:1; 75:1 optional |
| Flow Characteristic | Equal percentage or linear |
| Leakage Class | Class IV; Class V optional; Class VI with soft seat |
| Leakage Standard | GB/T 4213-2008 and ASME B16.104-1998 |
| End Connections | Flanged, socket weld, or butt weld as listed in the selection guide |
| Actuation | Pneumatic diaphragm, pneumatic piston, or electric actuator as configured |
