Material:Stainless Steel (SS304, SS316 for corrosion resistance), Brass (for machinability), Plastic (for lightweight and cost-effective solutions)
Size Range:1/8″ to 1″ (DN6-DN25)
Connection Options:Quick Connect, Push-to-Connect, Threaded (NPT, BSPP)
Working Pressure:Up to 1,500 psi (103 bar)
Working Temperature:-20°C to 200°C
Sealing Options:O-Ring Seals (NBR, EPDM, FKM)
Manufacturing Method:Forging, Machined, Injection Molding
Applicable Medium:Air, Oil, Water, Gas, Chemical Fluids
Manufacturing Standard:ANSI, ASME, ISO 7241, JIS B8363, DIN 2353

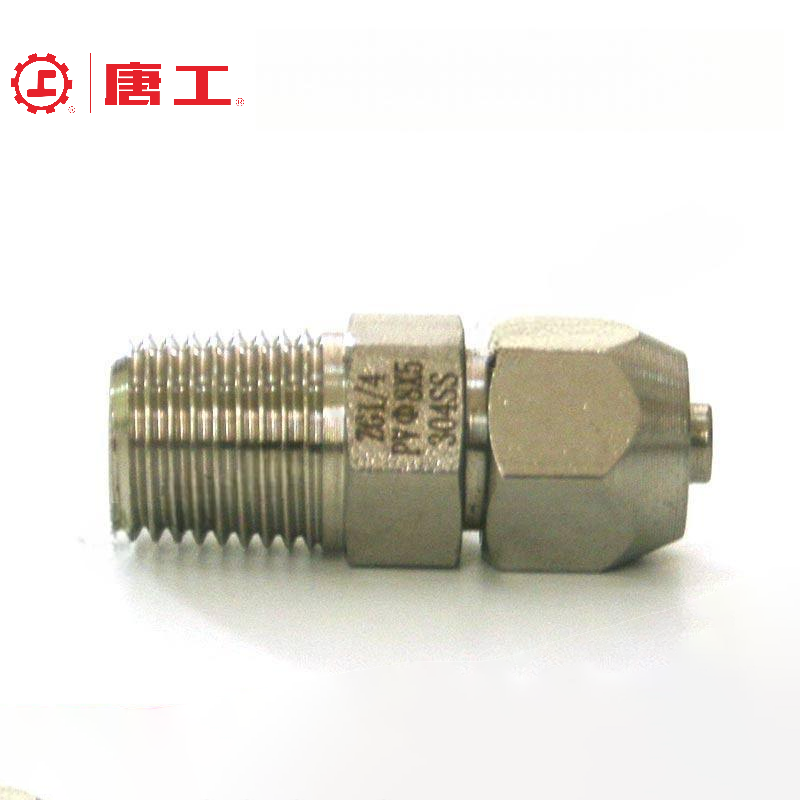

The Quick Connect Pipe Fitting Series offers a versatile and reliable solution for piping systems requiring fast and convenient connections. This series includes fittings such as couplings, plugs, elbows, tees, and adapters, all designed for quick installation and removal without the need for special tools. The quick connect mechanism provides a secure, leak-proof connection ideal for various applications. Made from high-quality materials such as stainless steel (SS304, SS316), brass, and plastic, these fittings are corrosion-resistant and suitable for diverse industrial uses.
Quick Installation and Removal: Designed for fast, tool-free connections, reducing installation time and labor costs.
Leak-Proof Performance: Equipped with high-quality O-ring seals to ensure a secure, leak-free connection.
Corrosion Resistant: Available in stainless steel (SS304, SS316) and brass for use in both corrosive and non-corrosive environments.
Lightweight Options: Plastic fittings provide a lightweight and cost-effective solution for low-pressure applications.
Versatile Application: Available in a variety of sizes and connection types to meet the needs of different piping systems.
Ease of Use: Push-to-connect mechanism allows easy and efficient operation, suitable for quick and temporary connections.
Structural Length Standard:
According to ANSI, ASME, ISO 7241, JIS B8363, DIN 2353
Connection Forms Standards:
Quick Connect, Push-to-Connect, Threaded (NPT, BSPP) per ISO 7241
Available Sizes (Caliber):
1/8″, 1/4″, 3/8″, 1/2″, 3/4″, 1″
Pressure-Temperature Rating:
Class 1500 as per ANSI and ASME standards
Pressure Range:
Up to 1,500 psi depending on size and material
Temperature Range:
-20°C to 200°C depending on material and sealing options
