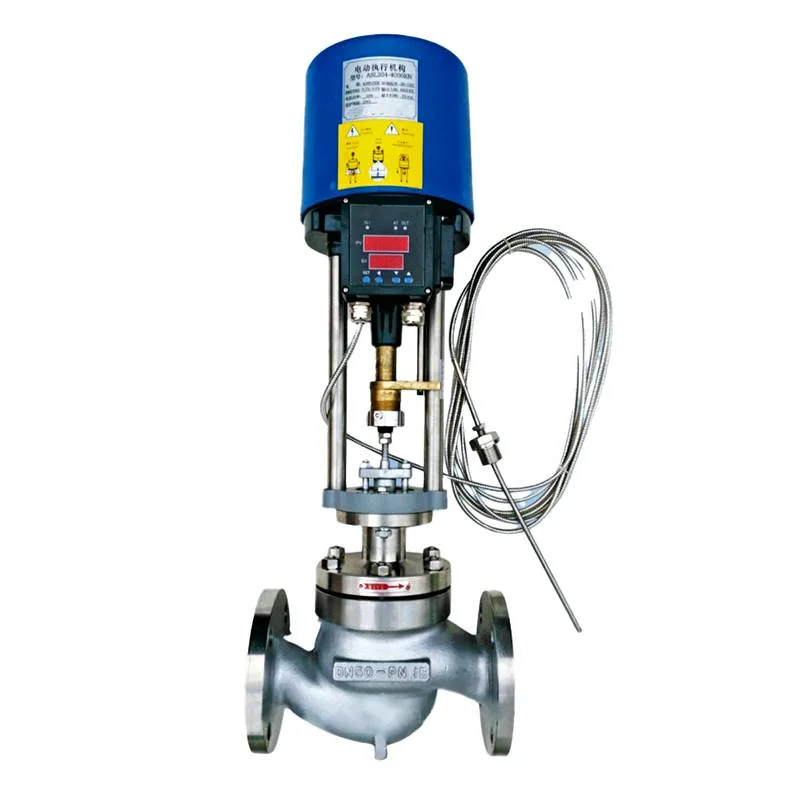

Self-Operated Electronic Temperature Control Valve

Body Form: Straight-through cast body
Plug Form: Non-balanced single seat spool
Nominal Diameter: DN20~200mm, NPS 3/4″~8″
Nominal Pressure: PN1.6~4.0MPa; CLASS 150~300LB
Applicable Temperature: -20~425°C
Connection Form: Flange
Flange Distance: Meet IEC 60534
Leakage Level: As per ASME B16.104
Set Value Deviation: ±5%
Actuator: Temperature-controlled electric actuator

Product Overview

The major characteristic of self-operated electronic control temperature control valve is that it realizes directly automatic adjustment and control of temperatures of many mediums such as steam, hot water, hot oil, and gas through using heat of mediums with requirement of 220V power supply. What’s more, it can be used in the circumstance that overheating and heat exchange should be prevented. Because of its simple structure, easy operation, wide selected temperature range, fast response time, and reliable sealing property as well as being optionally adjusted in service, it is widely used to provide hot water for many departments including chemical engineering, petroleum, food, light textile, hotel, and restaurant.

Product Features

Temperature control system can be automatically formed as long as using single-phase alternating current power supply AC220V and temperature sensor on the site.
FDY-258T temperature control module of high integration in actuator succeeds in uniting temperature controller and actuator as one, realizing electromechanical integration and simplifying temperature control system.
It has the features of high control accuracy, rapid response speed, stable and reliable property, and long working life.
Possessed of broad subject range, it has the ability to conduct temperature control in an extremely wide temperature range.
It is characterized by compact structure, easy installation and debugging, and simple usage.

Specification Parameters

Technical Parameters

Diameter DN (mm) / NPS (in)	20 (3/4″)	25 (1″)	32 (1-1/4″)	40 (1-1/2″)	50 (2″)	65 (2-1/2″)	80 (3″)	100 (4″)	125 (5″)	150 (6″)	200 (8″)
Circulation Ability (m³/h)	7	10	16	25	40	63	100	160	250	400	630
Rated Travel (mm)	6		8	10	14		20		30	30	40
Bonnet Form	Standard type -17~230°C, high temperature type +230~425°C
Gland Form	Bolt pressing type
Sealing Packing	V type PTFE packing, PTFE impregnated asbestos packing, asbestos textile packing, graphite packing
Plug Form	The single seater, sleeve type valve
Flow Characteristics	Straight line
Adjustment Precision (°C)	±1~±5
Using Medium	Steam, water, oil, gas
Allowable Leakage (Hard Seal)	10⁻³ × Rated capacity of valve
Allowable Leakage (Soft Seal)	“0”
Temperature Package Capillary Material	H62, 1Cr18Ni9Ti
Capillary Length	3 meters, 5 meters, 10 meters
Temperature Control Range	0 ~ 250°C
Set Value Bias	±2°C

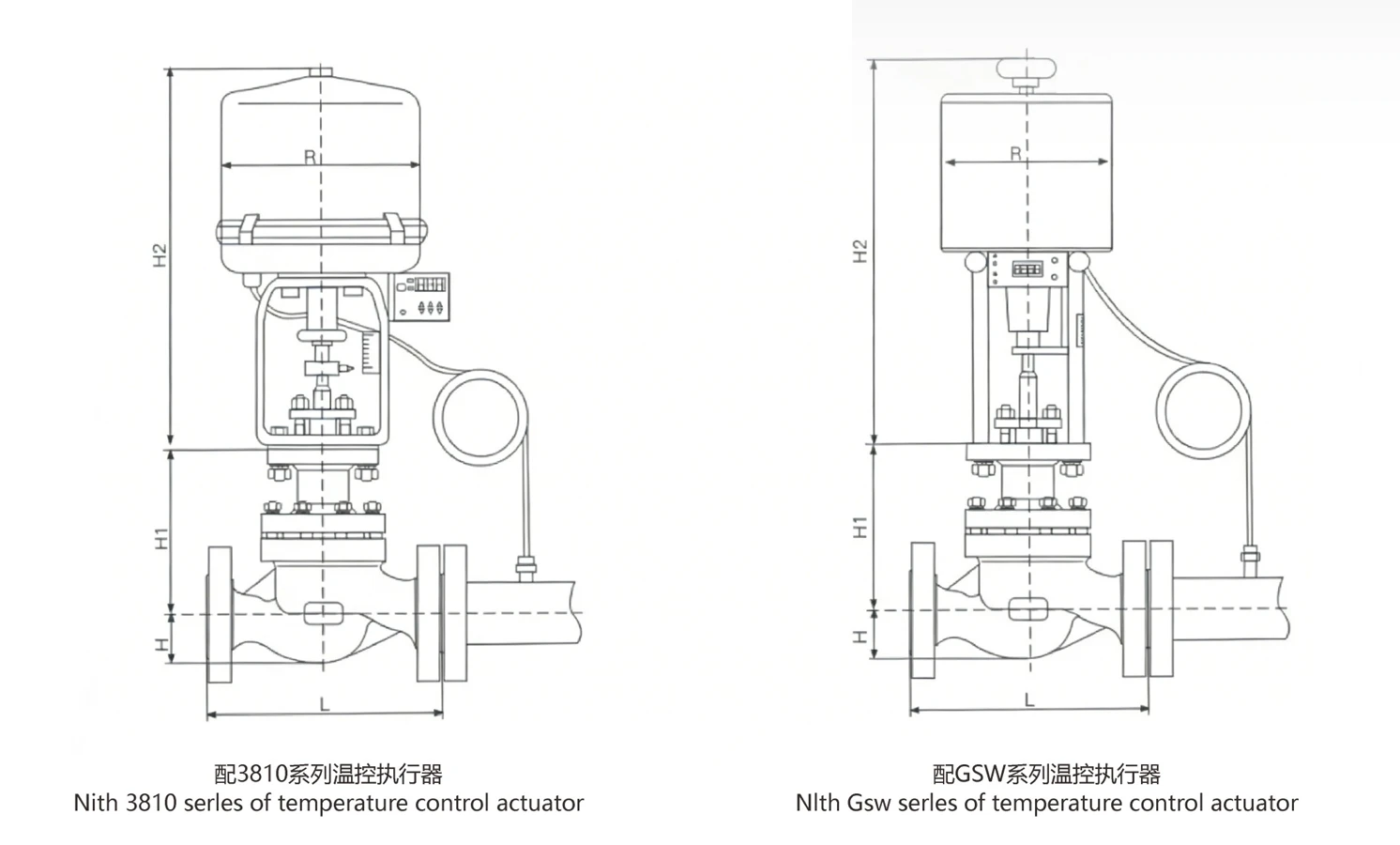

Main External Connection Dimensions

DN (mm) / NPS (in)	20 / 3/4″	25 / 1″	32 / 1-1/4″	40 / 1-1/2″	50 / 2″	65 / 2-1/2″	80 / 3″	100 / 4″	125 / 5″	150 / 6″	200 / 8″
L (Face-to-Face, mm)
PN16/25	180	188	200	220	252	275	300	350	400	455	555
PN40	180	188	200	220	252	275	310	370	410	475	600
PN64	206	210	220	251	290	315	341	398	452	511	610
H (Height, mm)
PN16	52.5	57.5	70	75	82.5	92.5	100	110	125	142	170
PN40	52.5	57.5	70	75	82.5	92.5	100	117.5	135	150	187.5
PN64	65	70	77	85	90	102.5	107.5	125	147.5	172	207.5
H (Overall Height, mm)	132	132	158	170	179	214	221	234	270	294	331
H2 (Actuator Height, mm)
3810L	373	373	495	495	495	700	700	700	725	725	725
PSL	465	465	465	465	465	560	560	560	560	560	788
D (Actuator Diameter, mm)
3810L	225	225	225	225	225	257	257	257	310	310	310
PSL	177	177	177	177	177	182	182	182	182	182	218

Note: 1. The dimensions in the table are standard data without accessories. The dimensions of accessories are calculated according to the actual configuration. 2. Due to the technical innovation and improvement of the product, the size may change. Please contact the technical department of the company for the latest information.

Specification Applications

Self-operated electronic temperature control valve is highly efficient devices designed to regulate and maintain desired temperature levels automatically without requiring external energy sources. These valves are ideal for applications in:

HVAC Systems: Used in heating, ventilation, and air conditioning systems to maintain optimal room temperatures.
Chemical and Pharmaceutical Industries: Ensuring precise temperature control in reaction vessels and process equipment.
Food and Beverage Industry: Maintaining consistent temperatures during processing, sterilization, and pasteurization.
Water Heating Systems: Regulating the temperature in industrial and residential hot water systems.
Power Plants: Managing temperature in steam and cooling systems.
Textile and Paper Industries: Controlling temperatures during drying and processing stages.
