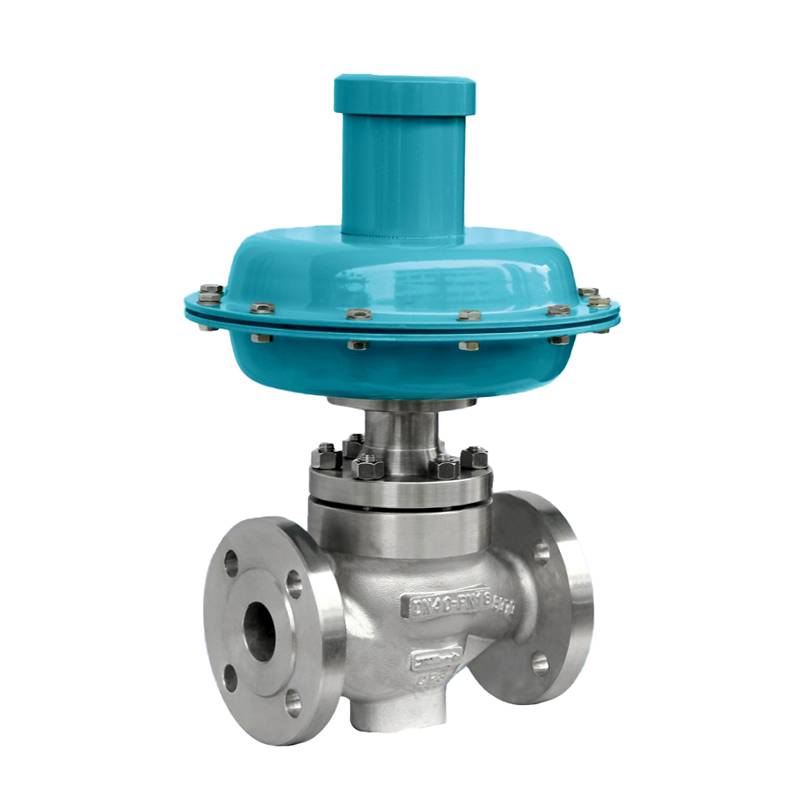

Body type: Straight casting valve
Nominal diameter: DN20~150mm; NPS 3/4″~6″
Nominal pressure: PN1.0~1.6MPa
Applicable temperature: -30~150℃
Type of connection: Flange
Flange distance: According to IEC 60534
The series of self operated micro pressure control valve produced by TangoValve Group is an energy-saving product without external energy. The pressure change and signal of the medium in the process pipeline are compared to make the force of the regulated medium and the output force of the actuator balance, so as to achieve stable pressure and differential pressure.
Owing to its adoption of seated valve and random adjustment of set value in service, this serial self-operated micro pressure control valve is applicable to combustion systems of various industrial furnaces, control of mixed specifc discharges of two kinds of fuel gas, sealed oil system for hydrogen-cooled generator set, petroleum products, and micro pressure automatic regulation of protective gas and heat treating protectivegas in oil storage tanks. In addition, it is suitable for automatic control of pressure reducing, stabilization and relief of all industrial gases.
| Nominal Diameter DN (mm) / NPS (in) | 15 (1/2″) | 20 (3/4″) | 25 (1″) | 32 (1-1/4″) | 40 (1-1/2″) | 50 (2″) | 65 (2-1/2″) | 80 (3″) | 100 (4″) | 125 (5″) | 150 (6″) | |
| Flow Coefficient Kv | 7 | 11 | 20 | 30 | 48 | 75 | 120 | 190 | 300 | 480 | 760 | |
| Allowable Pressure Difference (MPa) | PN16 | 1.6 | 1.5 | 1.2 | ||||||||
| Allowable Pressure Difference (MPa) | PN40 | 2 | ||||||||||
| Bonnet Form | Standard Type | |||||||||||
| Gland Type | Bolt Pressing Type | |||||||||||
| Sealing Packing | PTFE, Flexible Graphite | |||||||||||
| Pressure Range (KPa) | 0.5~6, 5~10, 9~15, 12~19, 18~25, 22~30, 28~35, 32~40, 38~50, 48~60, 58~72, 70~100 | |||||||||||
| Minimum Pressure Difference | ≥0.01(MPa) | |||||||||||
| Working Temperature | ≤80°C | |||||||||||
| Suitable Medium | Gas, Steam, Low Viscosity Liquid | |||||||||||
| Plug Form | The Single Seater, Sleeve Type Valve | |||||||||||
| Flow Characteristics | Straight L+C45+A445:M457 | |||||||||||
| Control Accuracy | ≤10% | |||||||||||
| Hard Seal | 4 × 0.01% Rated Valve Capacity | |||||||||||
| Allowable Leakage | Soft Seal (DN in mm) | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 |
| Soft Seal (Value) | 0.15 | 0.3 | 0.45 | 0.6 | 0.9 | 1.7 | 4 | 6.75 | ||||
| Nominal Diameter DN (mm) / NPS (in) | 20 (3/4″) | 25 (1″) | 32 (1-1/4″) | 40 (1-1/2″) | 50 (2″) | 65 (2-1/2″) | 80 (3″) | 100 (4″) |
| L | 150 | 160 | 180 | 200 | 230 | 290 | 310 | 350 |
| H | 52.5 | 57.5 | 75 | 75 | 85.5 | 92.5 | 100 | 110 |
| H1 | 323 | 350 | 370 | 370 | 370 | 397 | 397 | 400 |
| A | 308 | 394 | 308 | 394 | 308 | 394 | 394 | 394 |
| Interface Thread | M16×1.5 | |||||||
| Weight G (Kg) | 12 | 18 | 25 | 32 | 45 | 58 | 68 | 76 |
Note: 1.The dimensions in the table are standard data without accessories. The dimensions of accessories are calculated according to the actual configuration. 2.Due to technical innovation and improvement of the product, the size may change. Please contact the technical department of the company for the latest information.
