Three Piece Ball Valve

Your Trusted Partner for High-Quality Valve Solutions

Three Piece Ball Valve

Size: 1/4″ to 2″
Body Material: Stainless Steel 304/316
Handles Material: Stainless Steel 304
Port Type: Full Port Ball Valve
End Connection: Socket Weld
Temperature Rating: -20°C ~ 150°C
Pressure Class: 1000 PSI
Seal: PTFE

Product Overview

A three piece ball valve with socket weld ends is designed for reliable shut-off and easy maintenance in demanding industrial systems. Its split-body construction allows the centre section to be removed for cleaning or seal replacement without cutting the pipe, while the socket weld connection provides a strong, leak-resistant joint for high-pressure and high-temperature service.

Product Features

Three-piece body design allows the centre section to be removed for in-line maintenance without cutting pipework
Socket weld ends provide a permanent, leak-resistant connection for high-pressure and high-temperature applications
Full port (full bore) design ensures minimal pressure drop and unrestricted flow
304 or 316 stainless steel construction offers excellent corrosion resistance and long service life
PTFE or R-PTFE seats support reliable sealing across a wide temperature range
Suitable for 1000 WOG service, depending on size and configuration
Quarter-turn operation enables fast, positive shut-off and easy automation

Specification Parameters

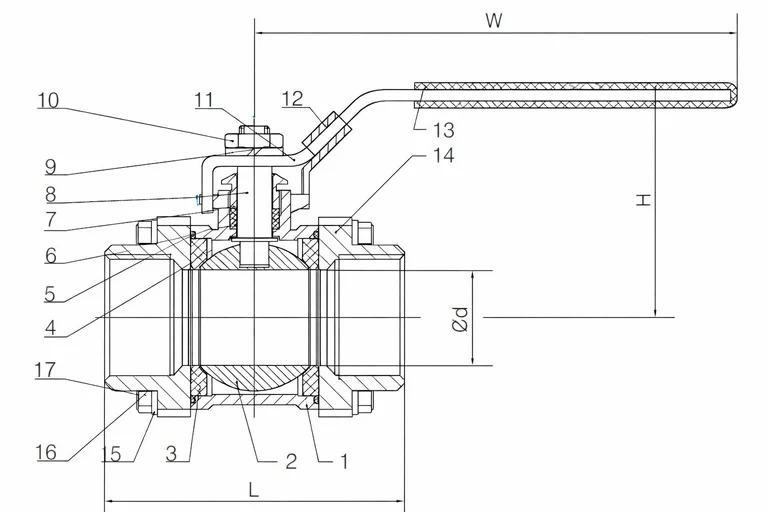

Material Chart:

Item	Part Name	Material	Item	Part Name	Material
1	Body	SS304 / SS316	10	Nut	SS304
2	Ball	SS304 / SS316	11	Handle	SS304
3	Seat	PTFE / RPTFE	12	Lock	SS304
4	Thrust Washer	PTFE	13	Cover	PVC
5	Body Gasket	PTFE	14	Cap	SS304 / SS316
6	Stem Packing	PTFE	15	Spring Washer	SS304
7	Gland Nut	SS304	16	Nut	SS304
8	Stem	SS304 / SS316	17	Bolt	SS304
9	Spring Washer	SS304

Dimension and Weights List (mm)

SIZE	D	H	W	L	Weight (kg)
1/4″	12.5	52	105	64	0.27
3/8″	12.5	52	105	64	0.29
1/2″	15	53	105	72	0.43
3/4″	20	64	126	80	0.61
1″	25	77	144	85	0.82
1 1/4″	32	82	144	105	1.46
1 1/2″	38	94	189	113	1.73
2″	50	102	189	132	2.86

Specification Applications

Chemical processing systems requiring secure, leak-tight shut-off and regular maintenance
Oil and gas pipelines operating under high pressure and elevated temperatures
Steam and thermal oil lines where welded connections improve long-term reliability
Hydraulic and pneumatic systems exposed to vibration and pressure fluctuations
Industrial process piping that benefits from in-line cleaning or seal replacement
Power generation and energy facilities where downtime must be minimised
