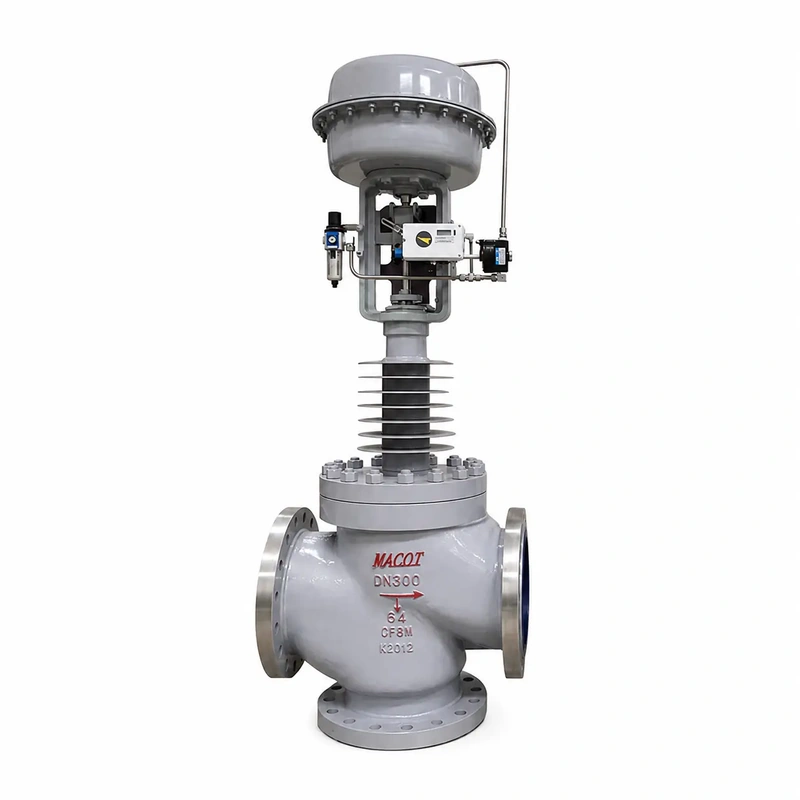

pneumatic three way control valve(3)

Three-Way Control Valve

Body type: Three-way cast globe valve with an S-streamlined flow passage
Trim type: Double-seat, cage-guided plug structure
Nominal diameter: DN25~450mm
Nominal pressure: PN16~PN100; ANSI Class 150~600
Flow characteristic: Linear
Rangeability: 50:1; 75:1 optional
Leakage class: Class IV; Class V optional; Class VI with soft seat
Actuator: Pneumatic diaphragm actuator, pneumatic piston actuator or electric actuator

Product Overview

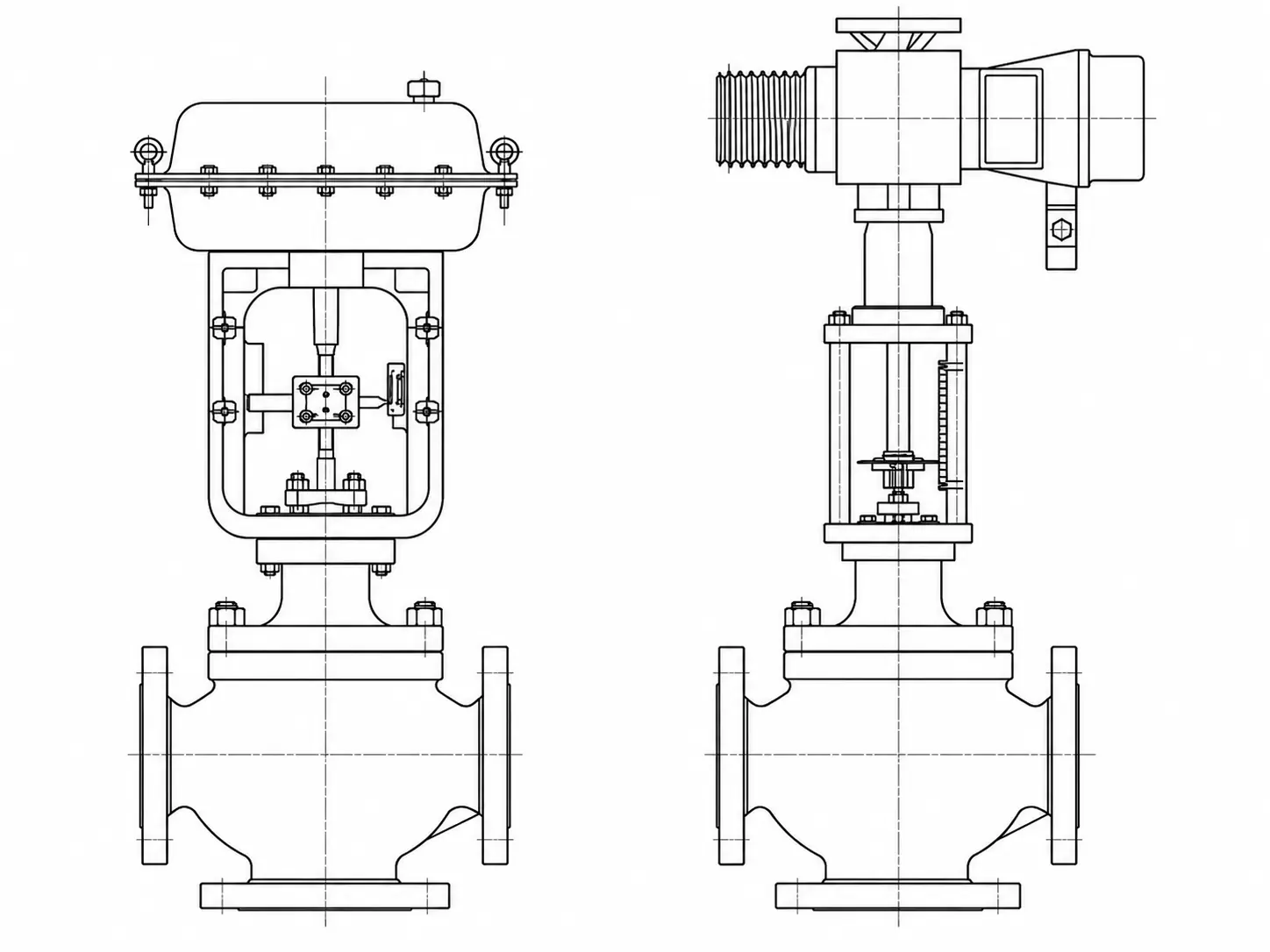

mcv 310 pneumatic and electric actuator outline

The three-way control valve is used where the process requires either two fluid streams to be combined into one common outlet or one inlet stream to be divided into two outlet branches. In suitable piping arrangements, one three-way valve can replace two separate two-way valves and simplify the control loop.

The valve body uses an S-streamlined flow passage to provide relatively low pressure loss and high flow capacity. The internal trim uses a double-seat, cage-guided arrangement that supports stable plug movement, accurate positioning and convenient maintenance.

The valve can be supplied with a pneumatic diaphragm actuator, pneumatic piston actuator or electric actuator. The selected actuator action determines the valve position after loss of signal or air supply, so the required fail position must be confirmed during selection.

Working Principle

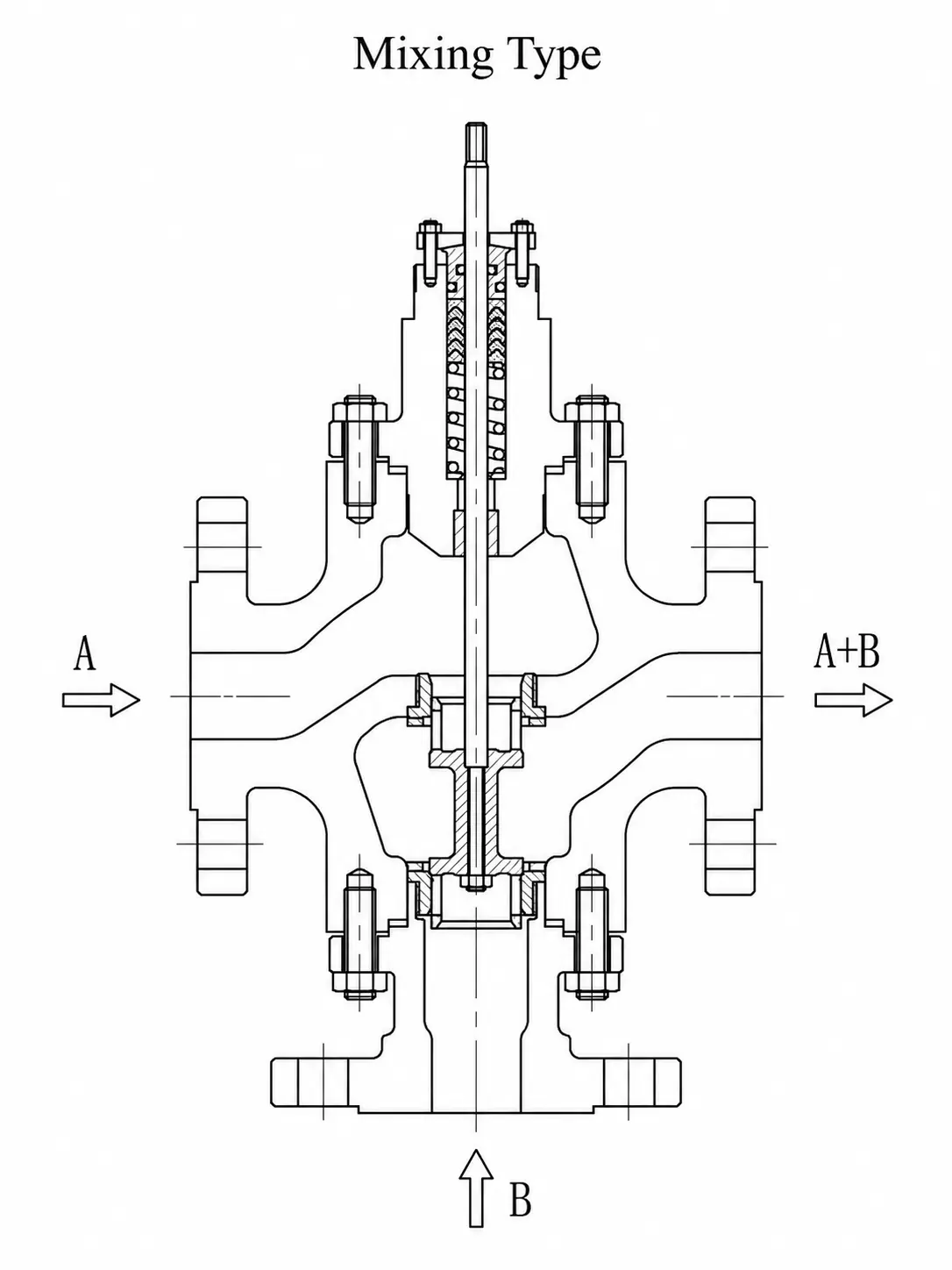

mcv 310 mixing type valve structure
Mixing Principle

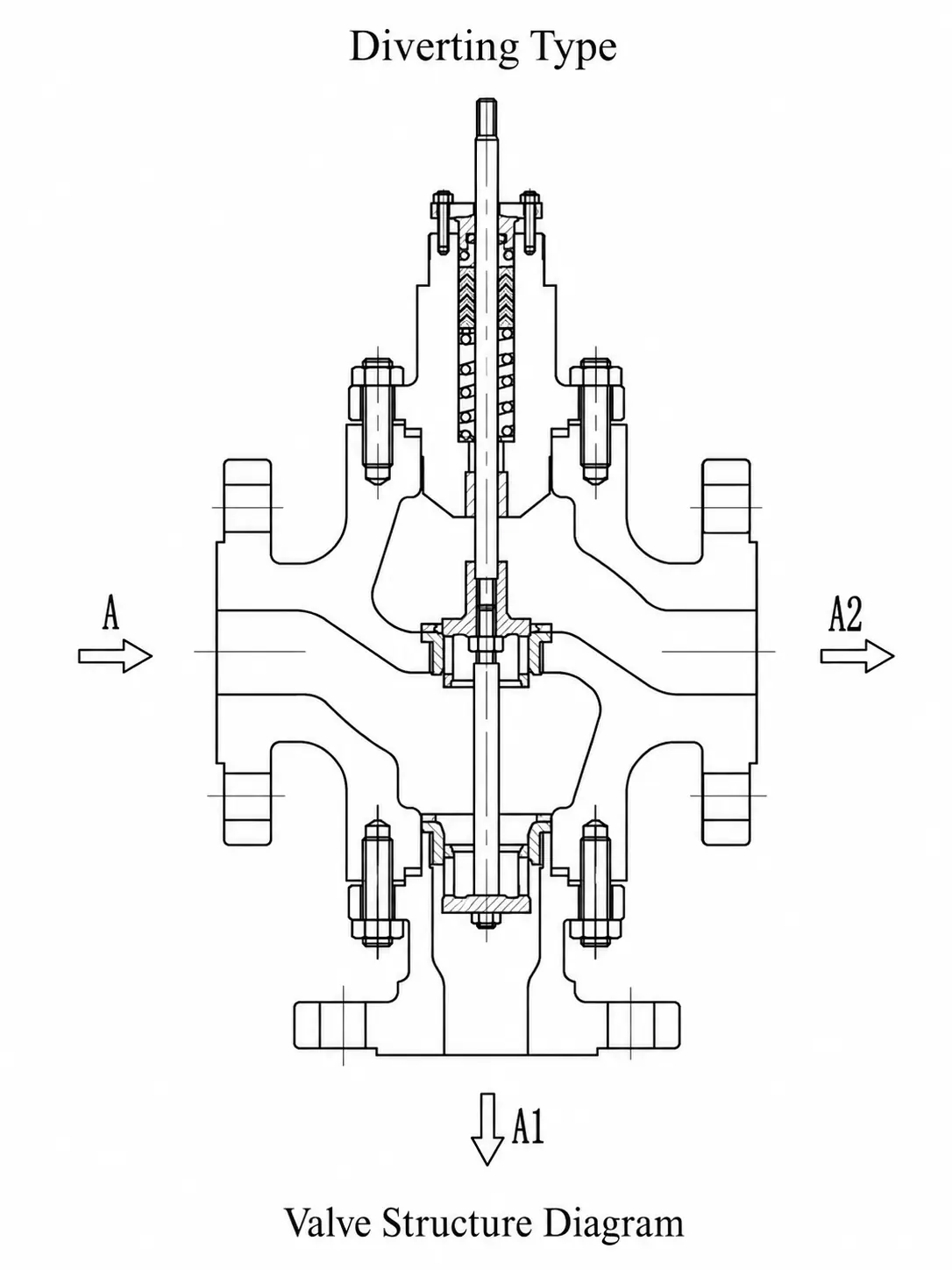

mcv 310 diverting type valve structure
Diverting Principle

Mixing service: Fluid enters through ports A and B and leaves through the common port AB. By changing the plug position, the valve changes the contribution of each inlet stream to the combined outlet flow.

Diverting service: Fluid enters through the common port AB and is distributed toward port A or port B. By changing the plug position, the valve changes how much flow is directed into each outlet branch.

Basic Technical Parameters

ItemSpecification
Valve FunctionMixing or diverting
Body TypeThree-way cast globe valve with S-streamlined flow passage
Trim TypeDouble-seat, cage-guided plug structure
Nominal DiameterDN25~450mm
Pressure RatingPN16, PN25, PN40, PN63, PN100; ANSI Class 150, 300, 600
Flow CharacteristicLinear
Rangeability50:1; 75:1 optional
Leakage ClassClass IV; Class V optional; Class VI with soft seat
Face-to-Face StandardIEC 60534-3-1 and ASME B16.10
ActuatorPneumatic diaphragm actuator, pneumatic piston actuator or electric actuator

Product Features

The three-way control valve is designed around a compact cast globe-valve body, an S-streamlined flow passage and a cage-guided double-seat trim. The structure is intended to provide stable throttling, high flow capacity and practical maintenance access for mixing and diverting service.

Product Features

  • S-streamlined flow passage: Helps reduce pressure loss while providing high flow capacity.
  • Three-way flow control: One valve can perform mixing or diverting duty in the required piping arrangement.
  • Double-seat, cage-guided trim: Provides strong plug guidance, stable movement and good regulating accuracy.
  • Modular internal parts: Different trim sizes and Cv values can be selected to match the process duty.
  • Bolted split bonnet: Supports maintenance access and different temperature configurations.
  • Direct seat retention: The cage compresses and locates the seat for practical assembly and disassembly.
  • Hard-seat construction: Suitable for broad industrial service and long operating life.
  • Pneumatic or electric actuation: The actuator package can be configured according to signal, thrust and fail-position requirements.

Bonnet Temperature Range

Bonnet ConfigurationApplicable Temperature
Normal bonnet-20℃ to +230℃
Extension bonnet-40℃ to +350℃
Heat-dissipation bonnet+350℃ to +566℃

Flow Characteristic

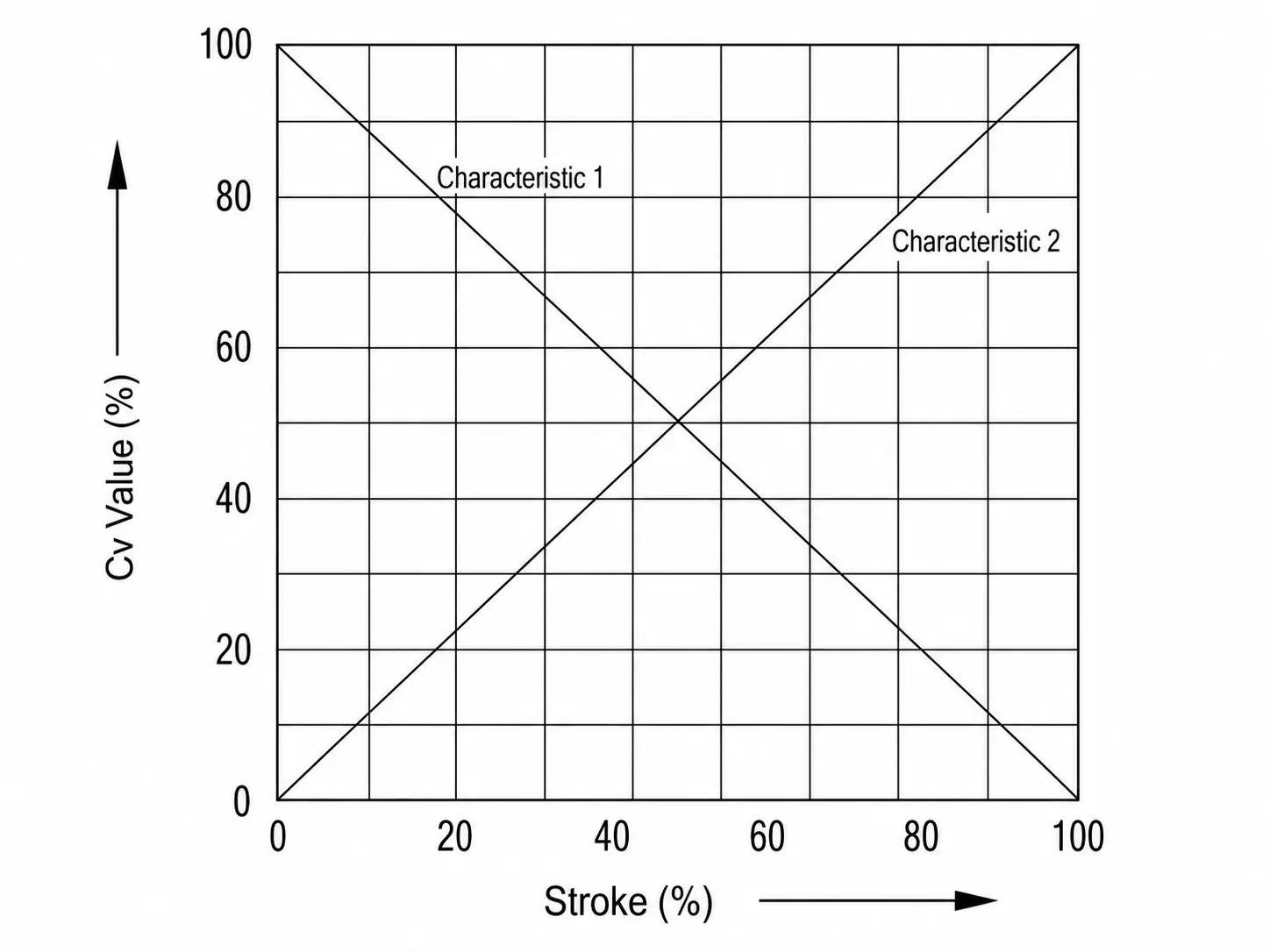

mcv 310 linear flow characteristic curve

The valve uses a linear flow characteristic. As travel changes, the effective flow area changes in an approximately linear manner. In mixing or diverting service, the two controlled paths move in opposite directions so that one path opens while the other closes.

Flow Direction and Actuator Action

Valve FunctionFlow CharacteristicActuator ActionZero-Signal PositionControlled Flow Direction
MixingA→ABDirect actingFig. 1.1B→AB
B→ABReverse actingFig. 1.2A→AB
Diverting through a mixing-body arrangementAB→ADirect actingFig. 2.1AB→B
AB→BReverse actingFig. 2.2AB→A
DivertingAB→BDirect actingFig. 3.1AB→A
AB→AReverse actingFig. 3.2AB→B

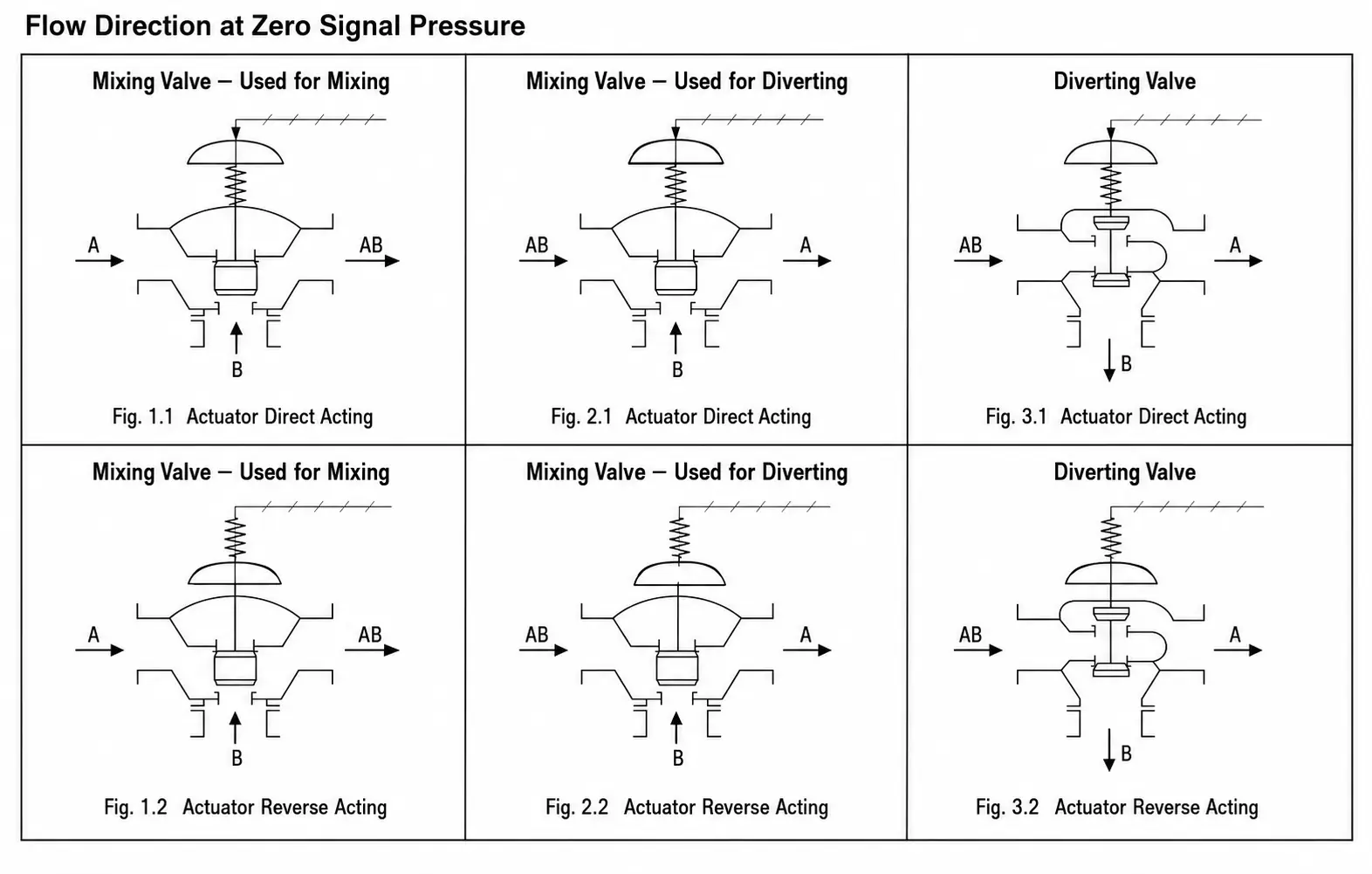

mcv 310 zero signal pressure flow direction

Optional Accessories

  • Positioner
  • Air filter regulator
  • Solenoid valve
  • Limit switch
  • Valve position transmitter
  • Lock-up valve
  • Pneumatic booster
  • Manual handwheel mechanism

Specification Parameters

Nominal Diameter, Seat Diameter, Rated Cv and Travel

Nominal Diameter (mm)2532405065
Seat Diameter (mm)152025202532253240324050405065
Rated CvMixing Valve4.06.3106.31016101624162440244064
Diverting Valve
Rated Travel (mm)162540
Nominal Diameter (mm)80100125150200
Seat Diameter (mm)506580658010080100125100125150125150200
Rated CvMixing Valve406410064100160100160250160250400250400640
Diverting Valve406410064100160100160250160250400250400640
Rated Travel (mm)406075
Nominal Diameter (mm)250300350400450
Seat Diameter (mm)150200250200250300250300350300350400350400450
Rated CvMixing Valve400640100063010001450100014502000145020002600200026003300
Diverting Valve400640100063010001450100014502000145020002600200026003300
Rated Travel (mm)100130150

Main Technical Parameters

Leakage ClassClass IV; Class V optional; Class VI with soft seat; GB/T 4213-2008; ASME B16.104-1998
Flow CharacteristicLinear
Rangeability50:1; 75:1 optional
Pressure RatingPN16, PN25, PN40, PN63, PN100; ANSI Class 150, 300, 600
Flange StandardGB/T 9113-2000; HG/T 20592-2009; HG/T 20615-2009 (ASME B16.5-2009); JB/T 79-1994
Facing / End ConnectionRF, MFM, RJ, SW and BW

Face-to-Face Dimensions (Unit: mm.)

Nominal Diameter (mm)253240506580100125
LANSI150RF.PN16185200220250275300350403
ANSI300RF.PN40190210230255285310355425
EANSI150RF.PN16140150160180200220235256
ANSI300RF.PN40150160170190220232256295
Nominal Diameter (mm)150200250300350400450500
LANSI150RF.PN16450550670770890102011801360
ANSI300RF.PN40460560740805930106012401420
EANSI150RF.PN162783223804605707108801080
ANSI300RF.PN4031337245054066082010001220

Actuator and Valve Outline Dimensions

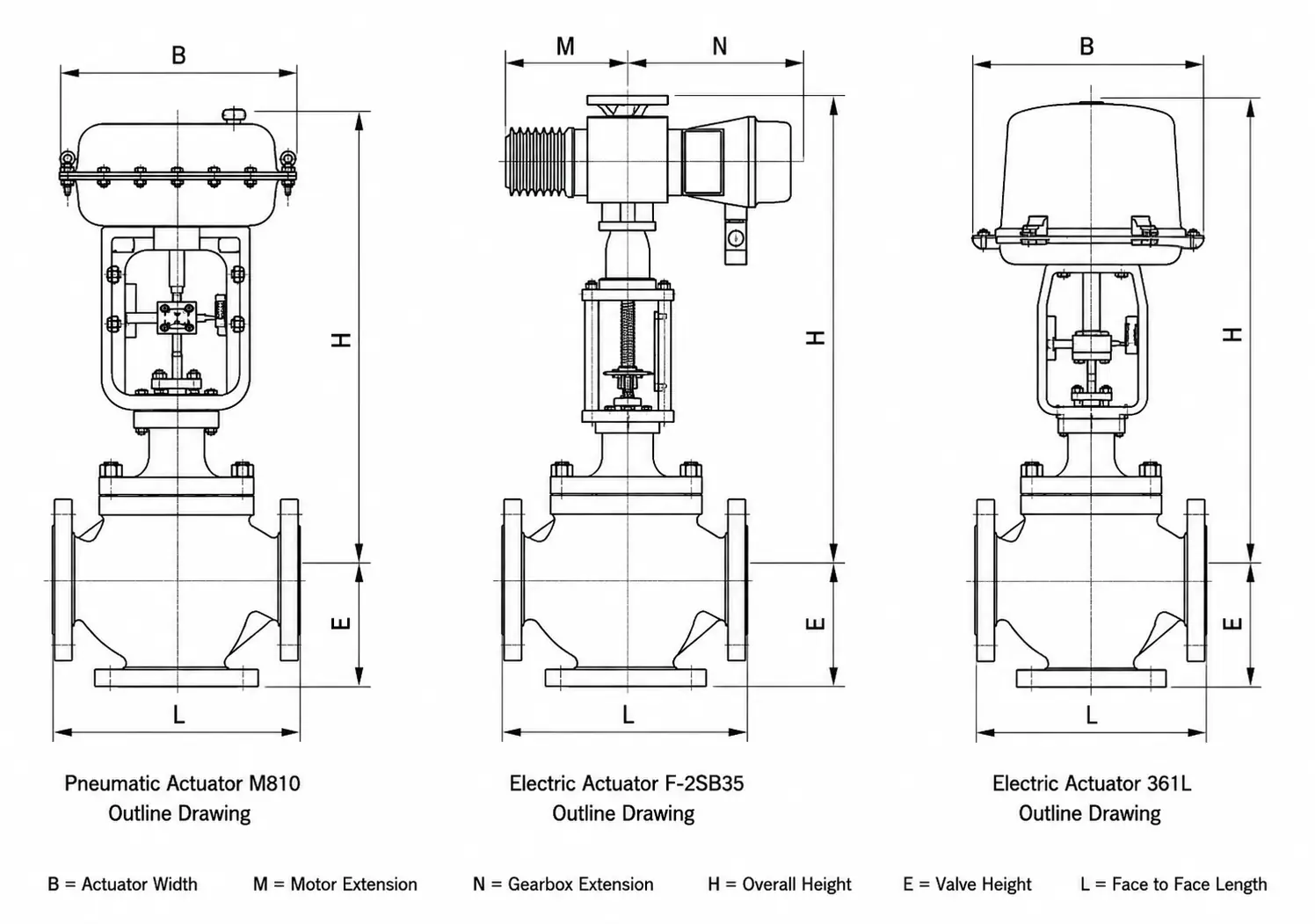

mcv 310 actuator outline dimensions

Nominal Diameter
(mm)
Actuator ModelHB
Normal TypeHeat-Dissipation Type
25M812447587267
32M812482632267
40M812537697267
50M812540710267
65M813677857350
80M813705895350
100M813722922350
125M8148871117470
150M8148871117470
200M81410221282470
250M81512351515580
300M81512601560580
350M82613501670620
400M82614501800620
450M82715801940680

The numerical values above are reproduced from the supplied selection-manual pages. Final sizing, seat diameter, actuator selection and allowable differential pressure should be checked against the actual process conditions.

Specification Applications

The three-way control valve is selected where the process requires controlled mixing, controlled diversion or bypass regulation. Its function is determined by the piping arrangement, internal flow path, actuator action and required position after signal or air failure.

Typical Mixing Applications

  • Combining two inlet streams into one common outlet.
  • Mixing hot and cold fluids for temperature control.
  • Blending two compatible process or utility streams.
  • Controlling the proportion of direct flow and recirculation flow.
  • Temperature-control loops in heat-exchanger and circulation systems.

Typical Diverting Applications

  • Dividing one inlet stream into two outlet branches.
  • Bypass control around heat exchangers, filters or other process equipment.
  • Routing flow between two downstream lines or items of equipment.
  • Modulating distribution where simple on/off switching is not sufficient.
  • Controlling process flow between a main line and a return line.

Applicable Process Media

  • Industrial water and compatible liquids.
  • Gas service within the confirmed pressure, temperature and material limits.
  • Steam service with the appropriate bonnet, trim, pressure class and actuator selection.
  • Heating and cooling media used in industrial temperature-control systems.

Selection Information Required

  • Required function: mixing or diverting.
  • Minimum, normal and maximum flow.
  • Inlet and outlet pressure for each operating case.
  • Operating and design temperature.
  • Medium name, density and process characteristics.
  • Required nominal size, pressure class and connection standard.
  • Required Cv or complete sizing data.
  • Body and trim material requirements.
  • Required leakage class.
  • Pneumatic or electric actuator requirement.
  • Control signal, air-supply pressure or electric power supply.
  • Required valve position after loss of signal or air supply.
  • Accessory, explosion-protection and documentation requirements.

Selection Notes

The nominal line size alone is not sufficient to confirm the valve. The selected seat diameter, Cv, travel, actuator thrust and allowable differential pressure must match the actual operating cases. For high-temperature, high-pressure-drop, flashing, cavitation, noisy or particle-containing service, the valve construction and trim should be reviewed separately.
