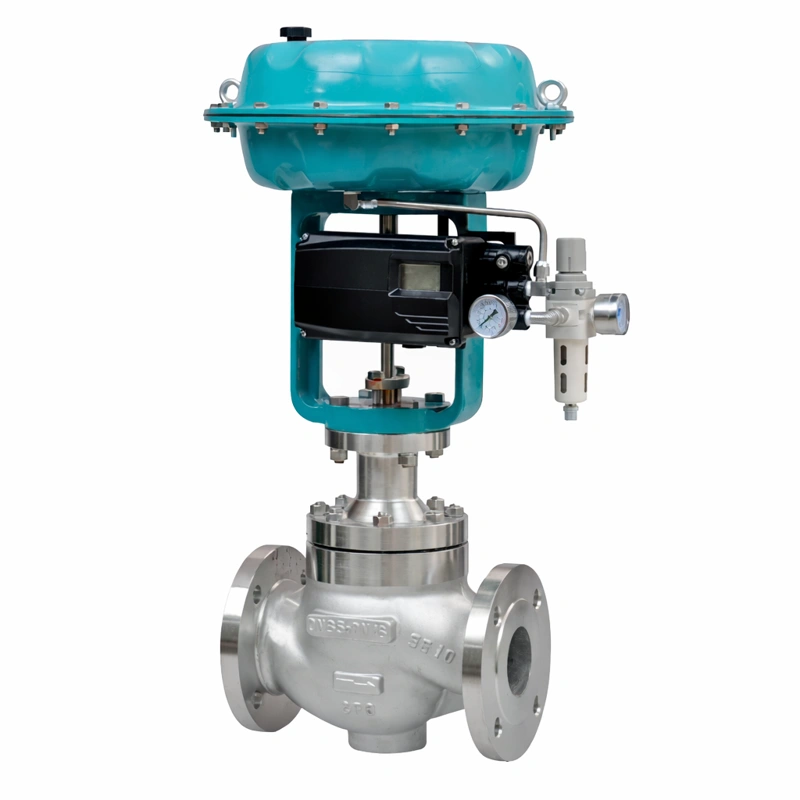

Top-Guide Single-Seated Control Valve

Body type: Straight-through S-type cast valve
Plug type: Balance cage single-seat plunger valve core
Nominal diameter: DN15~300mm; NPS 1/2″~12″
Nominal pressure: PN1.6~6.4MPa;Class 150~300LB
Applicable temperature: -196℃~550℃ (Optional according to working conditions)
Type of connection: Flange, welding, thread (applicable within 1″)
Flange distance: According to IEC 60534
Gland type: Bolt compression type
Sealing gasket: Metal graphite spiral wound gasket
Packing: PTFE, flexible graphite
Actuator: Pneumatic actuator, electric actuator

Product Overview

Top-Guide Single-Seated Control Valve produced by TangoValve Group adopt top guide balanced cage structure, with high strength, heavy load, S-shapedflow passage,small pressure drop loss, large fow coefhcient, wideadjustable range and high fow characteristic accuracy. This control valveis suitable for the occasion with small working condition pressuredifference and it can close tightly.lt is suitable for the regulation ofmedium flow or pressure.

Model Preparation

Z	Actuator
Z Series Control Valve	J: Pneumatic diaphragm actuator H: Pneumatic piston actuator R: Electric 3810L actuator D: Electric PSL actuator
H	Structural Style
H Straight Stroke	P: Standard sleeve control valve PF: Soft seal sleeve control valve PL: Single-stage cage type control valve PG: Sleeve control valve with heat dissipation PV: Bellows type sleeve control valve PD: Low temperature singleseat control valve

Product Features

Top-Guide Single-Seated Control Valve seat adopts pressure cage structure, which has the characteristics ofstrong reliability and convenient replacement and maintenance in the later stage.and solves the problem that the traditional structure without valve seat cannot bereplaced due to leakage. The service life can be extended. With fow opening design.the medium tends to the direction of valve opening, with good controllability ofsmall opening and small fow characteristic distortion. According to the workingconditions, electric or pneumatic actuators can be selected for control.

Flow Characteristic Curve

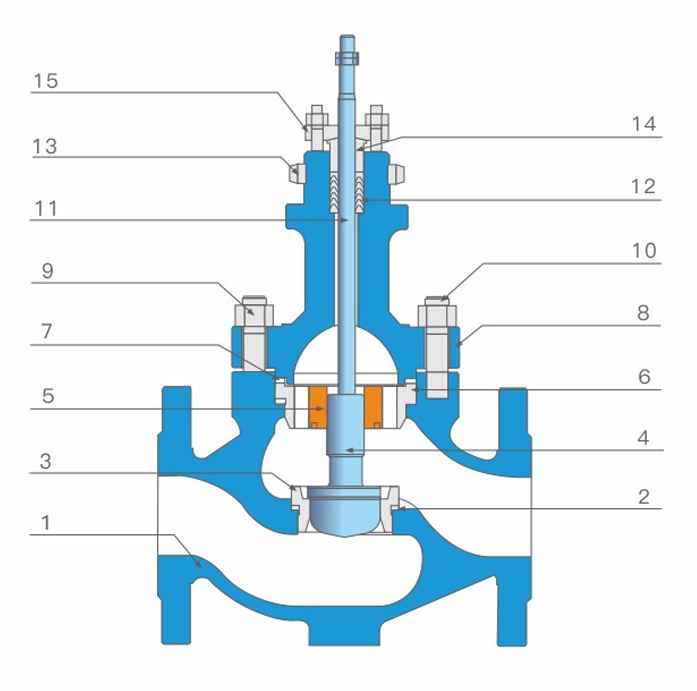

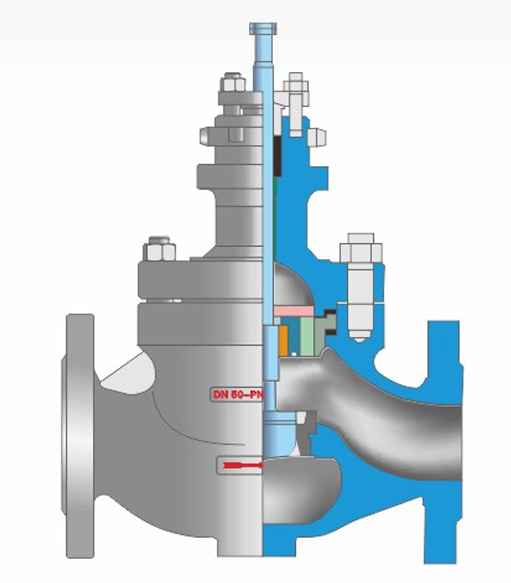

Structure and Materials of Top-Guide Single-Seated Control Valve

Carbon steel for body material*

No.	Component	Material
1	Body	WCB	LCB	WC9
2	Gasket	316 + Graphite/FTFE	316 + Graphite/FTFE	316 + Graphite/FTFE
3	Seat	304	304	304
4	Plug	304	304	304
5	Copper bush	Cu/316L	Cu/316L	Cu/316L
6	Guide sleeve	304	304	304
7	Gasket	316 + Graphite/FTFE	316 + Graphite/FTFE	316 + Graphite/FTFE
8	Bonnet	WCB	LCB	WC9
9	Nut	304	304	304
10	Double-screw bolt	304	304	304
11	Stem	304	304	304
12	Packing	PTFE/Flexible graphite	PTFE/Flexible graphite	PTFE/Flexible graphite
13	Lock nut	304	304	304
14	Pressing sleeve	304	304	304
15	Plate	304	304	304

Body Materialls Stainless Steel*

No.	Component	Material
1	Body	CF8	CF8M	CF3M
2	Gasket	316 + Graphite/FTFE	316 + Graphite/FTFE	316 + Graphite/FTFE
3	Seat	304	316	316L
4	Plug	304	316	316L
5	Copper bush	Cu/316L	Cu/316L	Cu/316L
6	Guide sleeve	304	316	316L
7	Gasket	316 + Graphite/FTFE	316 + Graphite/FTFE	316 + Graphite/FTFE
8	Bonnet	CF8	CF8M	CF3M
9	Nut	304	316	316L
10	Double-screw bolt	304	316	316L
11	Stem	304	316	316L
12	Packing	PTFE/Flexible graphite	PTFE/Flexible graphite	PTFE/Flexible graphite
13	Lock nut	304	316	316L
14	Pressing ring	304	316	316L
15	Plate	304	316	316L

Note: 1.The above is of standard confguration structure; The valve seat is metal seal, and the valve seat is soft seal, grade Vl optional. lt can provide valve trim of spray welding cemented carbide. 2.The conventional materialis carbon steel and stainless steel, and the special material regulating valve products can be customized according to the user’s work conditions.

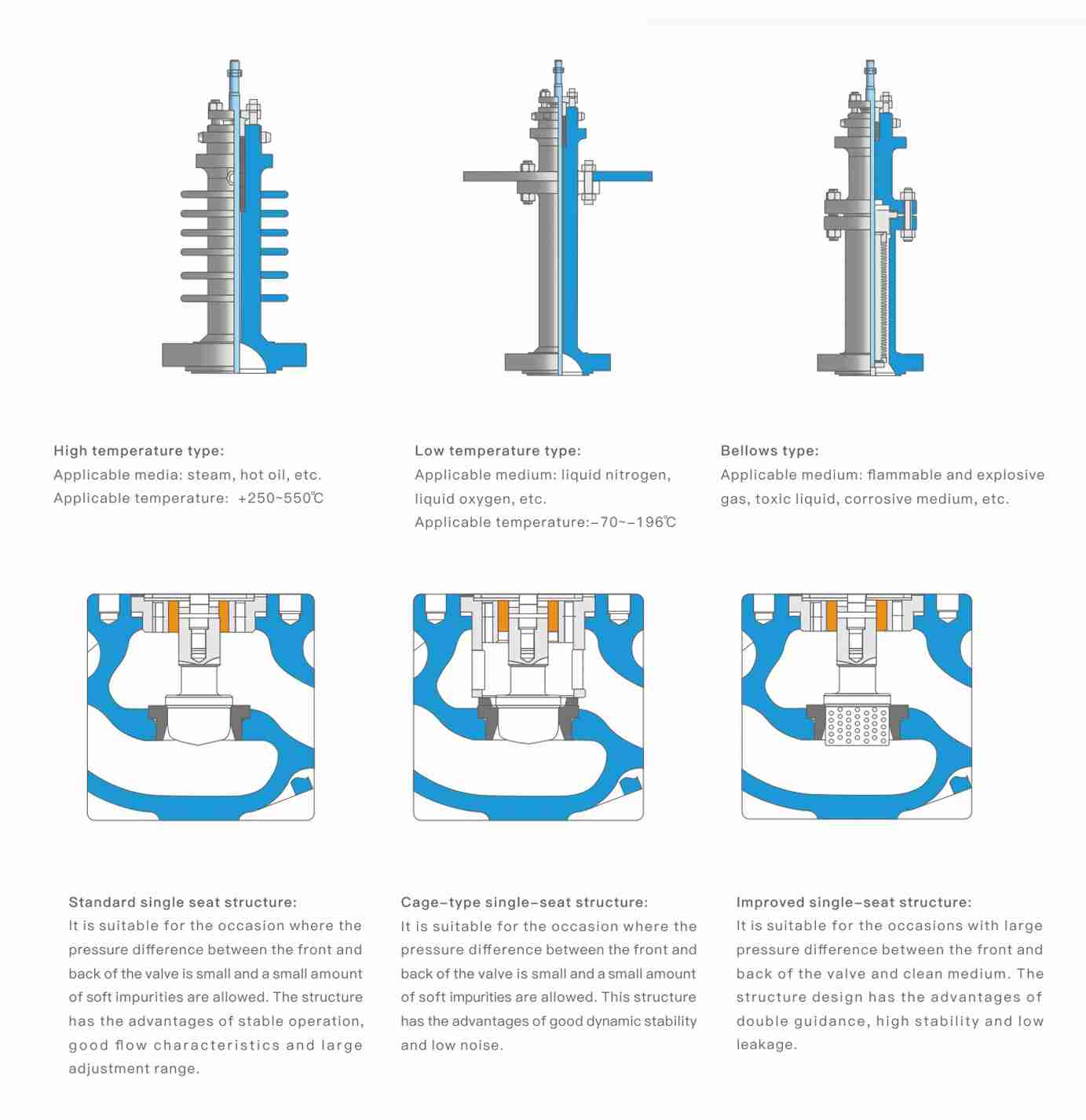

Can be Applied to Different Conditions of the Structure

Specification Parameters

Specifcation Parameter

Inside Diameter(mm/in)		20 (3/4″)	25 (1″)	32 (1-1/4″)	40 (1-1/2″)	50 (2″)	65 (2-1/2″)	80 (3″)	100 (4″)	125 (5″)	150 (6″)	200 (8″)	250 (10″)	300 (12″)
Flow Coefficient (KV)	Straight Line	6.9	11	17.6	27.5	44	69	110	176	275	440	690	1100	1760
Flow Coefficient (KV)	Percent (%)	6.3	10	16	25	40	63	100	160	250	400	630	1000	1600
Pneumatic Actuator		HA/B-22		HA/B-23			HA/B-34			HA/B-45			HA/B-56
Area		350 cm²		350 cm²			560 cm²			900 cm²			900 cm²
Mode of action	Spring Range	Metal seal allows differential pressure(MPa)
Gas Opening	20–100 KPa	1.16	0.7	0.44	0.28	0.18	0.17	0.11	0.07	0.07	0.05	0.03	0.02	0.01
	40–200 KPa	3.34	2.14	1.31	0.84	0.53	0.51	0.33	0.21	0.21	0.15	0.09	0.06	0.04
	80–240 KPa	6.4	4.99	3.05	1.95	1.25	1.18	0.78	0.5	0.5	0.36	0.21	0.15	0.08
Gas Off	20–100 KPa	2.23	2.14	0.87	0.56	0.36	0.34	0.22	0.14	0.14	0.1	0.06	0.03	0.02
	40–200 KPa	6.4	6.4	5.86	3.64	2.3	2.21	1.43	0.91	0.91	0.66	0.37	0.25	0.2
	80–240 KPa	6.4	6.4	6.4	5.04	3.18	3.06	1.98	1.26	1.26	0.92	0.52	0.47	0.35
Electric Actuator		Metal seal allows differential pressure(MPa)
Thrust(N)	800	2.38
	2000	4.77	3.05	1.86	1.19	0.76
	3000			2.79	1.79	1.14
	5000			4.66	2.98	1.91	1.13	0.6	0.47
	6500						1.35	0.8	0.57	0.39	0.26	0.16
	10000									0.61	0.42	0.2	0.15
	16000									0.97	0.67	0.35	0.12	0.09

Actuator parameters

Model	Pneumatic film actuator	Electronic electric actuator
Form	ZH22~ZH56	3810L, RSL
Type	Multi spring	Intelligent integrated type
Purpose	Adjustment, switch	Regulating
Drive	Air pressure (spring range): 140 (20~100) KPa G 240 (40~200) KPa G 280 (80~240) KPa G	Power supply: AC 220 V ±10% 50Hz AC 380 V ±10% 50Hz
Joint	Rc 1/4	Common type: 2–PF(G1/2”) Flameproof type: 2–PF(G3/4”)
Positive Action	Air pressure increases to push the valve to close	Control signal increases to push the valve to close
Reaction	Air pressure increases to push the valve open	Control signal increases to push the valve open
Control Signal	4~20mA.DC (With positioner)	Input output 4~20mA.DC
Lag	≤1% FS (With positioner)	≤0.8% FS
Linearity	2% FS (With positioner)	≤±1% FS
Ambient Temperature	-10°C ~ +70°C
Surface Coating	Black phosphating treatment Actuator: Acrylic polyurethane paint
Optional Accessories	Optional accessories, Hand wheel, Magnetic valve, Travel switch, Lock up valve	Heater

Main Performance Parameters

Flow Characteristics	Equal percentage, Straight line
Adjustable Range	50:01:00
Rated Cv Value	Equal percentage: 10~1400 Straight line: 11~1500
Allowable Leakage	Hard seal: Level-IV (0.01% rated flow of valve) Soft seal: Level-V
Drive Mode	Pneumatic	Electric
Intrinsic Error (%)	±1.0	±1.0
Return Difference (%)	≤1.0	≤1.0
Dead Zone (%)	≤0.6	≤1.0
Constant Point Deviation (%)	±2.5	±2.5
Rated Stroke Deviation (%)	≤2.5	≤2.5

Connection Dimension of Pneumatic Control Valve

DN (In)	20 (3/4″)	25 (1″)	32 (1-1/4″)	40 (1-1/2″)	50 (2″)	65 (2-1/2″)	80 (3″)	100 (4″)	125 (5″)	150 (6″)	200 (8″)	250 (10″)	300 (12″)
L
PN16/25	181	184	200	222	254	276	298	352	410	451	600	650	700
PN40	181	184	200	222	254	276	298	352	410	451	600	670	770
PN64	210	210	210	251	286	311	337	394	440	508	650	690	800
H
PN16/25	52.5	57.5	75	75	85.5	92.5	100	110	142.5	158	170	195	230
PN40	52.5	57.5	75	75	82.5	92.5	100	117.5	150	167.5	187.5	205	245
PN64	65	40	85	85	90	102.5	107.5	125	172.5	195	207.5	230	260
H1	132	132	158	170	179	214	221	234	270	294	331	390	450
H2	285	285	285	285	285	360	360	360	470	470	470	580	580
H3	208	208	224	228	228	334	334	342	408	453	482	520	550
H4	153	153	153	153	153	181	181	181	247	247	247	/	/
H5	336	338	402	405	405	627	628	635	698	702	728	755	790
H6	700( According to the actualtemperature)
H7	88	88	88	88	88	95	95	95	110	110	140	140	140
D	310	310	355	390	430	465	520	585	660	770	890	950	950
A	200	200	200	200	200	240	240	240	350	350	350	450	450
C	282	282	282	282	282	360	360	360	470	470	470	650	650
Flange	Executable: GB、HG、JB、DIN、JIS、ANSl Corresponding standard

Connection Dimension of Electric Control Valve

DN (In)	20 (3/4″)	25 (1″)	32 (1-1/4″)	40 (1-1/2″)	50 (2″)	65 (2-1/2″)	80 (3″)	100 (4″)	125 (5″)	150 (6″)	200 (8″)	250 (10″)	300 (12″)
L
PN16/25	181	184	200	222	254	276	298	352	410	451	600	640	880
PN40	181	184	200	222	254	276	298	352	410	451	600	640	880
PN64	210	210	210	251	286	311	337	394	440	508	650	810	950
H
PN16/25	52.5	57.5	75	75	85.5	92.5	100	110	142.5	158	170	195	230
PN40	52.5	57.5	75	75	82.5	92.5	100	117.5	150	167.5	187.5	205	245
PN64	65	40	85	85	90	102.5	107.5	125	172.5	195	207.5	230	260
H1	132	132	158	170	179	214	221	234	270	294	331	390	450
H2	373	373	456	456	538	538	548	548	725	725	725	795	795
H3	208	208	224	228	228	334	334	342	408	453	482	520	550
H4	90	90	90	90	90	90	90	90	90	90	90	90	90
H5	336	338	402	405	405	627	628	635	698	702	728	755	790
H6	700( According to the actualtemperature)
H7	88	88	88	88	88	95	95	95	95	110	110	140	140
D	310	310	355	355	390	430	465	520	585	660	770	890	950
A	225	225	225	225	255	255	255	255	255	310	310	350	350
Flange	Executable: GB、HG、JB、DIN、JIS、ANSl Corresponding standard

Note: 1.The dimensions in the table are standard data without accessories. The dimensions of accessories are calculated according to the actual configuration.2.Due to the technical innovation and improvement of the product, the size may change. Please contact the technical department of the Company for the latest information. 3.The actuated valve can be customized according to the actual size.

Specification Applications

Top-guided single-seated control valves are essential components in various industrial processes, offering precise flow control and reliable performance. Their applications include:

Chemical Processing: These valves manage the flow of aggressive chemicals, ensuring accurate control and enhancing safety in processing environments.
Oil and Gas Industry: Employed in both upstream and downstream operations, they regulate the flow of hydrocarbons, maintaining optimal pressure and flow conditions.
Power Generation: In power plants, these valves control steam and water flow, contributing to efficient energy production and system stability.
Pharmaceutical Manufacturing: They ensure precise control of process fluids, maintaining the stringent hygiene and accuracy standards required in pharmaceutical production.
Food and Beverage Industry: These valves manage the flow of ingredients and cleaning agents, supporting consistent product quality and adherence to sanitary regulations.
Water Treatment Facilities: Utilized in controlling the flow of water and treatment chemicals, they aid in maintaining water quality and system efficiency.
HVAC Systems: In heating, ventilation, and air conditioning systems, these valves regulate the flow of air and water, ensuring optimal environmental conditions.
