Size: 1/4″ to 2″
Body Material: Stainless Steel 316
Handles Material: Stainless Steel 304
Port Type: Full Port Ball Valve
End Connection: Threaded (FNPT X FNPT)
Temperature Rating: -20°C ~ 150°C
Pressure Class: 1000 PSI
Seal: PTFE
Handle: Locking Lever
This two piece ball valve features a threaded connection and locking lever handle, providing secure shut-off and controlled operation in industrial piping systems. Designed with a robust two-piece body, it typically offers full port flow, helping to minimise pressure drop while maintaining reliable performance.

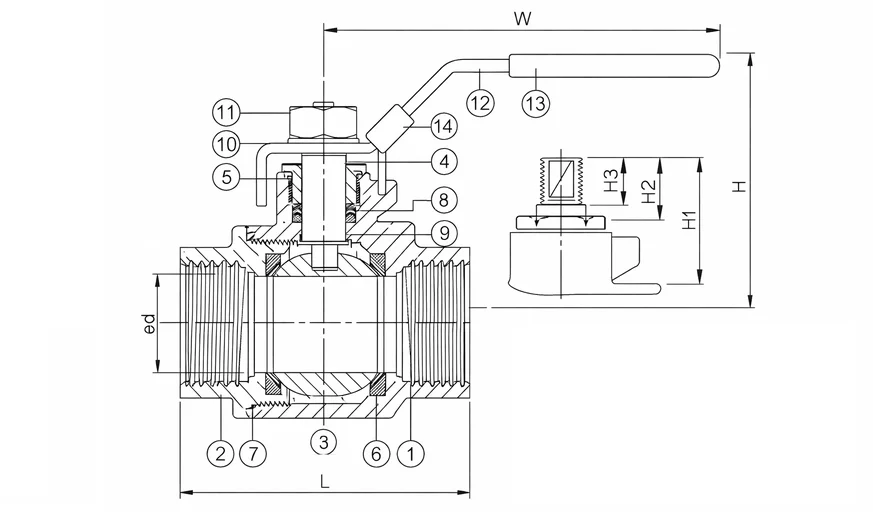

| No. | Part Name | Material | No. | Part Name | Material |
|---|---|---|---|---|---|
| 1 | Body | 316 Stainless Steel | 8 | Packing | PTFE / RTFE |
| 2 | Cap | 316 Stainless Steel | 9 | Thrust Washer | PTFE |
| 3 | Ball | 316 Stainless Steel | 10 | Spring Washer | 304 Stainless Steel |
| 4 | Stem | 316 Stainless Steel | 11 | Nut | 304 Stainless Steel |
| 5 | Gland Nut | 304 Stainless Steel | 12 | Handle | 304 Stainless Steel |
| 6 | Seat | PTFE / RTFE | 13 | Handle Sleeve | PVC |
| 7 | Seal | PTFE | 14 | Locking Device | 304 Stainless Steel |
| Size | Connection | D | L | H | W | H1 | H2 | H3 | Weight (kg) |
| 1/4″ | NPT | 12 | 60 | 50 | 102 | 33 | 12 | 10 | 0.21 |
| 3/8″ | NPT | 13 | 60 | 50 | 102 | 33 | 12 | 10 | 0.25 |
| 1/2″ | NPT | 15 | 64 | 50 | 102 | 33 | 12 | 10 | 0.3 |
| 3/4″ | NPT | 20 | 77 | 62 | 120 | 40 | 16 | 13 | 0.51 |
| 1″ | NPT | 25 | 90 | 75 | 159 | 50 | 18 | 15 | 0.75 |
| 1 1/4″ | NPT | 32 | 100 | 81 | 159 | 49 | 17 | 15 | 1.48 |
| 1 1/2″ | NPT | 38 | 118 | 98 | 188 | 60 | 19 | 18 | 1.72 |
| 2″ | NPT | 50 | 138 | 108 | 188 | 62 | 20 | 18 | 3.08 |
