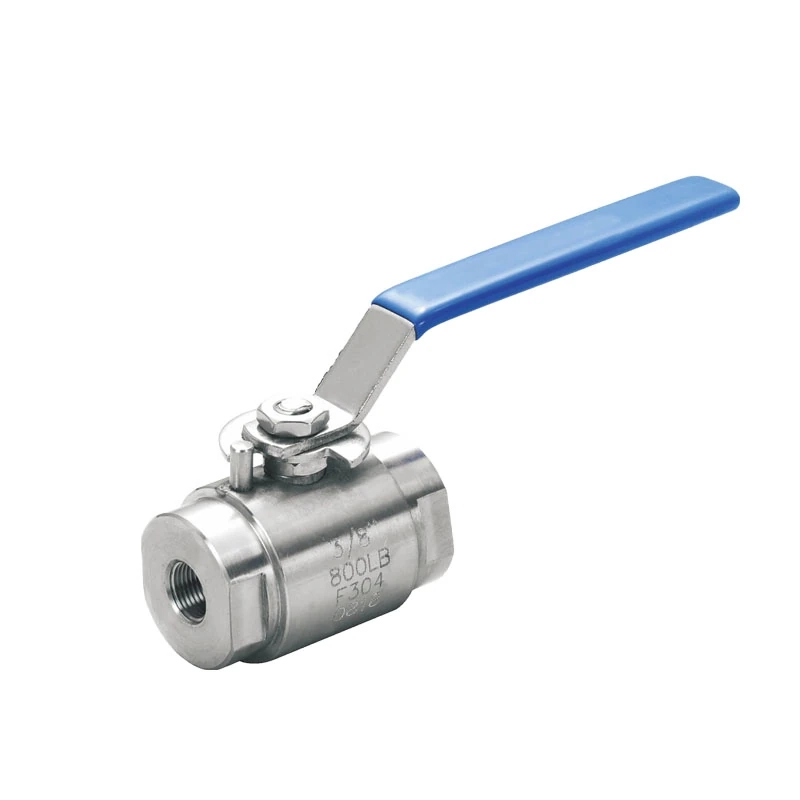

Two Piece High Pressure Ball Valve

Size: 1/4″ to 2″
Body Material: Stainless Steel 316
Handles Material: Stainless Steel 304
Port Type: Full Port Ball Valve
End Connection: Threaded (FNPT X FNPT)
Temperature Rating: -20°C ~ 150°C
Pressure Class: 1000 PSI
Seal: PTFE

Product Overview

A two piece high pressure ball valve is a durable, quarter-turn valve designed to deliver reliable shut-off performance in demanding industrial systems. Featuring a strong two-piece body construction and typically a full port design, it supports high operating pressures while maintaining efficient flow and minimal pressure loss.

Product Features

Robust two-piece body design for high-pressure industrial service
Quarter-turn operation for fast, reliable shut-off
Typically full port construction to minimise pressure drop
High pressure ratings suitable for oil, gas, hydraulic, and process systems
Precision-machined ball and seats for tight sealing and long service life
Available in stainless steel for corrosion resistance
Suitable for liquid and gas media across wide temperature ranges

Specification Parameters

Dimension List (mm)

Size	Connection	d	L	H	W
1/4″	NPT	10	53	45	100
3/8″	NPT	12	53	45	100
1/2″	NPT	15	62	49	104
3/4″	NPT	20	70	55	118
1″	NPT	25	81	67	145
1 1/4″	NPT	32	95	70	145
1 1/2″	NPT	38	105	80	177
2″	NPT	50	117	92	177

Specification Applications

Oil and gas production, processing, and transmission systems
High-pressure hydraulic and pneumatic circuits
Chemical processing lines handling aggressive or pressurised media
Industrial water and steam systems with elevated pressure requirements
Power generation and energy-related process equipment
General industrial piping where reliable, high-pressure shut-off is critical
