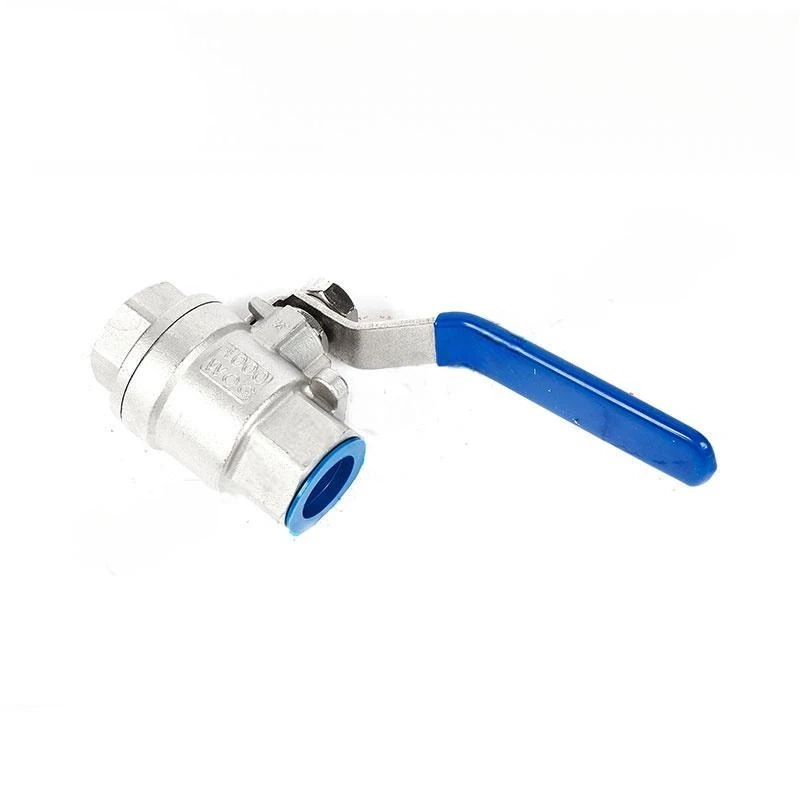

Two-Piece Threaded Ball Valve

Material: Stainless Steel (SS304, SS316)

Size: 1/4″ to 3″

Connection: Thread, NPT, BSPT, BSPP (G)

Working Pressure: Up to 1000 PSI

Working Temperature: -20°C to +180°C

Sealing: PTFE

Applicable Medium: Oil, Gas, Water

Manufacturing Standard: ANSI, ASME, GB, customizable as per customer’s drawing

Product Overview

Ball valves are designed for efficient on/off control of fluid flow in a wide range of industrial applications. These valves feature a spherical disc to control the flow and are known for their excellent sealing capabilities and ease of operation. Constructed with high-quality materials such as stainless steel, ball valves are ideal for demanding environments and can handle high-pressure and high-temperature conditions.

Product Features

Compact Design: The two-piece construction provides a streamlined and space-efficient design.
Threaded Ends: Equipped with threaded connections for easy installation and compatibility with various piping systems.
High Durability: Made from robust materials like stainless steel, ensuring long-lasting performance and resistance to corrosion.
Reliable Sealing: Features PTFE or similar seat materials for a tight and leak-free seal.
Full Port Design: Allows unobstructed flow, minimizing pressure drop across the valve.
Versatile Applications: Suitable for use in various industries such as chemical, petroleum, water treatment, and HVAC systems.
Ease of Maintenance: The two-piece design enables easy disassembly for cleaning or replacement without removing the valve from the system.
Temperature and Pressure Resistance: Can handle a wide range of pressures and temperatures, depending on the material and seat configuration.
Smooth Operation: Equipped with a manual lever handle for precise and smooth control of the flow.
Cost-Effective: Offers a balance of durability and affordability, making it a practical choice for many applications.

Specification Parameters

ITEM	PART	MATERIAL
1	Body	SS 316
2	Cap	SS 316
3	Ball	SS 316
4	Gasket	PTFE
5	Seat	PTFE/RTFE
6	Thrust Washer	PTFE
7	Stem Packing	PTFE
8	Gland Nut	SS 304
9	Stem Washer	SS
10	Stem	ASTM A182-F304
11	Stem Nut	SS
12	Locking Device	SS 201
13	Handle	SS 201
14	Plastic Cover	Plastic

Dimension
DN	8	10	15	20	25	32	40	50	65	80	100
D	12	12	15	20	25	32	38	49	65	78	100
L	52	52	55	62	74	80	92	106	145	168	200
H	51	51	52	59	72	78	88	96	125	138	165
W	96	96	96	110	133	133	172	172	220	245	310
Weight	0.2	0.2	0.2	0.3	0.5	0.8	1.1	1.5	3.6	5.5	9.3
