Understanding pressure measurement is essential for various industries, and the terms PSI (pounds per square inch) and PSIG (pounds per square inch gauge) are often used interchangeably, but they represent different concepts. PSI is a unit that measures pressure relative to a vacuum, representing absolute pressure. On the other hand, PSIG measures pressure relative to atmospheric pressure, which is the pressure exerted by the Earth’s atmosphere at sea level. The key distinction between PSI vs PSIG is that PSI includes the atmospheric pressure in its readings, while PSIG only measures pressure above atmospheric levels. PSIG is often used in contexts like tire pressure or HVAC systems, where only the pressure above atmospheric levels matters. This difference is crucial in many technical applications, as using the correct unit ensures accurate pressure readings and safety in various systems.

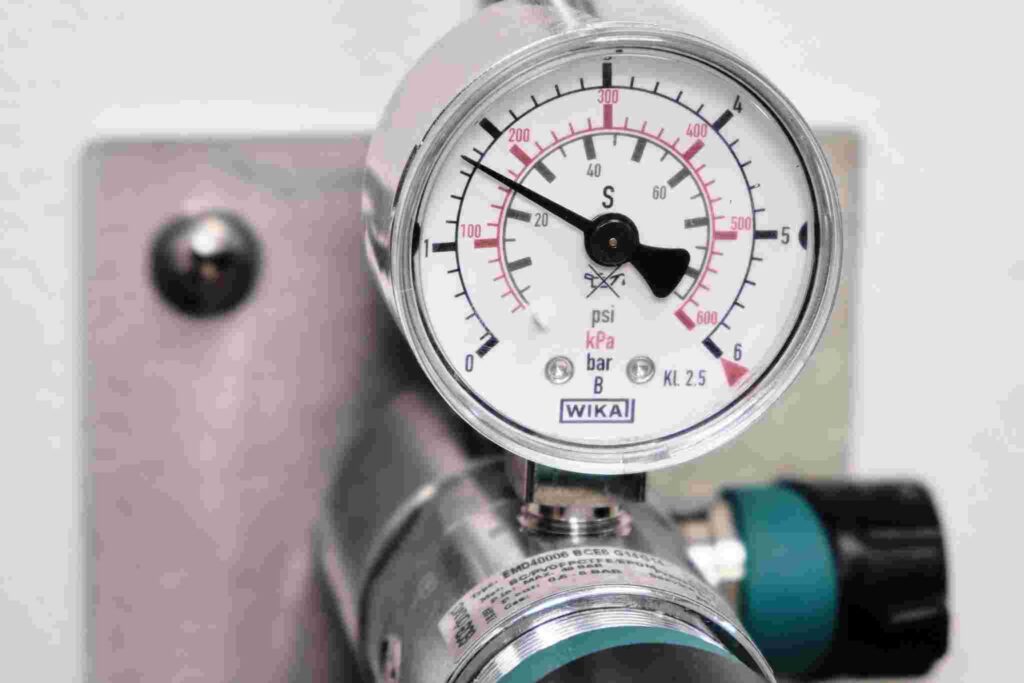

Source: Kimray

What is PSI (Pounds per Square Inch)

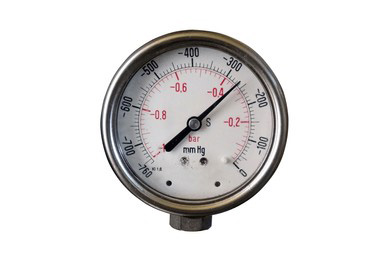

Source: Piping Technology

PSI, or Pounds per Square Inch, is a unit of pressure used predominantly in industrial and technical fields. It quantifies the amount of force applied to a given area, where one PSI represents one pound of force exerted on one square inch of surface area. This unit is widely used in various applications such as measuring the pressure of gases and liquids, tire pressures, and in hydraulic and pneumatic systems. PSI is also essential for determining material properties like tensile strength and the modulus of elasticity, which relate to a material’s resistance to deformation. Despite being part of the imperial system, PSI remains a crucial standard for pressure measurement in many industries worldwide.

What is PSIG (Pounds per Square Inch Gauge)

PSIG stands for Pounds per Square Inch Gauge, which is a unit of pressure used to measure the pressure relative to the atmospheric pressure. Unlike absolute pressure, which considers the total pressure exerted on an object, PSIG measures the pressure above the surrounding atmosphere. It is a gauge pressure, meaning it is based on the difference between the pressure in a system and the atmospheric pressure at sea level, which is approximately 14.7 psi.

To understand PSIG better, imagine a pressure gauge reading in a tank or pipe. If the gauge shows 0 PSIG, it indicates that the pressure inside the system is equal to the atmospheric pressure. Any positive value indicates that the pressure inside the system is higher than the surrounding atmospheric pressure. For instance, if the pressure reads 50 PSIG, this means the pressure inside the system is 50 pounds per square inch above the atmospheric pressure.

PSIG is widely used in various industries, including HVAC, automotive, and manufacturing, to monitor and regulate pressure in pipes, vessels, and tanks. It is particularly useful for everyday applications where the measurement of pressure relative to atmospheric conditions is most relevant, such as in tire pressure gauges or fuel tanks. It is important to note that PSIG does not take into account the absolute pressure, which includes atmospheric pressure; instead, it measures the pressure difference from it. This makes PSIG a practical and commonly used unit for real-world applications.

Key Differences Between PSI vs PSIG

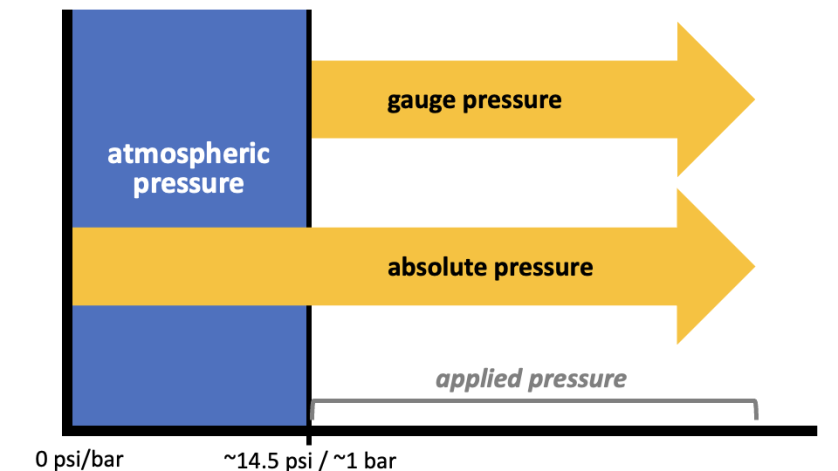

Source: gruponovoseculo

PSI (Pounds per Square Inch) and PSIG (Pounds per Square Inch Gauge) are both commonly used units of pressure, but they serve different purposes in measurements. Understanding the key distinctions between PSI and PSIG is essential, especially in industries like manufacturing, valve design, HVAC systems, and tire maintenance.

Definition and Basis of Measurement:

• PSI is a unit of pressure that measures the force applied to a unit area, typically one square inch. It represents the total pressure exerted on an object, including both the pressure of the substance being measured and the atmospheric pressure.
• PSIG, on the other hand, is a gauge pressure that measures the pressure in relation to the surrounding atmospheric pressure. It specifically excludes atmospheric pressure, focusing only on the differential pressure relative to the air pressure around the object. This makes PSIG useful in scenarios where the absolute pressure is not necessary.

Use and Application:

• PSI is used in a wide range of applications to quantify the total pressure exerted by a substance on a surface. It is common in industries such as hydraulic systems, pneumatic systems, and tire pressure gauges. It is also used in valves and pipe systems to measure the total force of the fluid inside the system, which includes both internal and atmospheric pressures.
• PSIG is primarily used when the focus is on the pressure difference between the internal environment of a system (such as a pipe or a tire) and the external atmospheric pressure. This is critical in applications like measuring tire pressure, hydraulic systems, and refrigeration, where the gauge pressure—excluding atmospheric pressure—affects system performance and safety.

Pressure Calculation:

• PSI provides a direct measurement of pressure, without taking the atmospheric pressure into account. It is the standard measurement for pressure in the Imperial system and is directly related to force exerted per unit area.
• PSIG involves subtracting the atmospheric pressure from the total pressure. As such, when a PSIG gauge reads 0, the pressure inside the system is equal to atmospheric pressure. This makes PSIG useful for applications where the pressure relative to the environment is most important, such as in pressurized gas systems.

Measurement Instruments:

Both PSI and PSIG are measured using pressure gauges, but the difference lies in what is being measured. A PSI gauge measures the total pressure, including atmospheric pressure, while a PSIG gauge only measures the pressure difference above the atmospheric level.

Can PSI and PSIG Have the Same Numerical Value?

PSI and PSIG are not interchangeable, and they cannot have the same numerical value under normal conditions. Here’s why:

• PSI refers to the absolute pressure and measures the total pressure exerted in a system, including both the pressure from the fluid or gas within the system and the atmospheric pressure outside. It is always relative to a perfect vacuum, meaning it considers all forces, including those exerted by the surrounding atmosphere.
• PSIG, on the other hand, measures gauge pressure, which is the pressure relative to the atmospheric pressure. This means that PSIG only measures the pressure inside the system in relation to the atmosphere. A PSIG of 0 means the internal pressure is equal to the atmospheric pressure, and it can be positive or negative depending on whether the internal pressure is higher or lower than atmospheric pressure.

While PSI is a measure of total pressure, PSIG only focuses on the pressure difference above or below atmospheric pressure. Therefore, for both units to have the same numerical value, the system would need to be at exactly atmospheric pressure. In this case, the gauge pressure (PSIG) would be 0, while the absolute pressure (PSI) would be 14.7 PSI (at sea level, where atmospheric pressure is approximately 14.7 PSI).

How to Convert PSIG to PSI

Converting between PSIG (pounds per square inch gauge) and PSI (pounds per square inch) is a simple process that requires you to account for the atmospheric pressure. PSIG measures pressure relative to the atmospheric pressure, while PSI generally represents absolute pressure, which includes atmospheric pressure.

To convert from PSIG to PSI, you simply add the atmospheric pressure (typically 14.7 PSI at sea level) to the PSIG value. The formula is:

PSI = PSIG + Atmospheric Pressure

For example, if you have a PSIG value of 50, the conversion to PSI would be:

PSI = 50 + 14.7 = 64.7 PSI

This method ensures that you account for the standard atmospheric pressure, which can vary depending on the altitude and weather conditions, but for most standard conditions, 14.7 PSI is used. This conversion is essential in systems where accurate absolute pressure readings are needed, such as in certain industrial processes or when calibrating pressure-sensitive equipment.

Why Accurate Pressure Measurement is Important

Source: shutterstock

Accurate pressure measurement is critical for several reasons:

• Safety: Ensuring that systems operate within the correct pressure range prevents equipment failure and catastrophic accidents. For example, safety valves in pressure vessels are typically calibrated to open at specific PSIG values, protecting the system from overpressure.
• Performance: Equipment such as pumps, compressors, and engines are designed to operate efficiently within certain pressure parameters. If the pressure is too low or high, it can lead to inefficiencies, energy wastage, or damage to components.
• Quality Control: In manufacturing processes like chemical production or food processing, maintaining the right pressure ensures the desired quality and consistency of products. This is particularly important in systems where pressure influences the rate of reactions or the flow of fluids.
• Optimization: In applications like pneumatic systems and vacuum chambers, precise pressure control enables better performance, reduced energy consumption, and minimized wear on system components.

Applications in the Valve Industry: PSI vs PSIG

In the valve industry, both PSI (pounds per square inch) and PSIG (pounds per square inch gauge) are essential for accurate pressure measurement and valve performance. PSI measures total pressure, including atmospheric pressure, and is used to assess the strength of valve bodies and their ability to withstand high pressures. PSIG, however, measures the pressure relative to atmospheric pressure, making it critical for understanding pressure differentials within sealed systems, such as pipelines or HVAC systems.

Valve manufacturers use PSI ratings to determine the maximum pressure a valve can safely handle, ensuring it meets safety standards. PSIG, on the other hand, is used in operational settings to monitor pressure within systems, ensuring valves perform effectively without exceeding safe pressure limits. Both units are crucial for designing, testing, and maintaining valves in industries like oil and gas, water treatment, and HVAC.

Conclusion

Understanding the difference between PSI vs PSIG is crucial for professionals in industries like valve manufacturing, oil and gas, HVAC, and water systems. PSI provides an absolute measure of pressure, including atmospheric pressure, while PSIG reflects the pressure relative to the surrounding environment.

Both measurements are vital for ensuring the integrity and safety of pressure systems, as well as for selecting the appropriate valve for various applications. PSI is used to determine a valve’s pressure rating, while PSIG is often used to monitor and maintain operational pressures within systems.

Accurate pressure measurements help avoid costly mistakes, ensure the durability of valves, and optimize system performance. Whether designing, testing, or maintaining valves, understanding and correctly applying PSI and PSIG ensures safety, efficiency, and reliability in any industrial process.
