A single-seated control valve has one plug and one seat, giving it one final shut-off interface and usually making tight closure easier to achieve. A traditional double-seated control valve has two plugs and two seats on a common stem. Differential-pressure forces act in opposing directions across the two plugs, reducing the net stem load and potentially allowing greater rated flow capacity for a comparable nominal valve size.
A single-seat design is normally the clearer starting point when shut-off quality and simpler trim matter most. A double-seat design becomes relevant when capacity and lower net plug force carry more weight, although its two seating interfaces make the tightest shut-off harder to maintain.
Selection still depends on the required Cv, maximum closing differential pressure, permitted seat leakage and available actuator thrust for the specific model. Modern pressure-balanced single-seat and cage-guided trims can also reduce actuator load, so the traditional comparison is a starting point rather than a universal selection rule. This comparison covers traditional two-port globe control-valve trim, not hygienic mixproof valves or single-acting and double-acting actuators.
The core difference is one seat versus two
Seat count describes the number of plug-to-seat interfaces inside the valve body. It does not describe the actuator mounted above the valve.
Single-seated globe trim

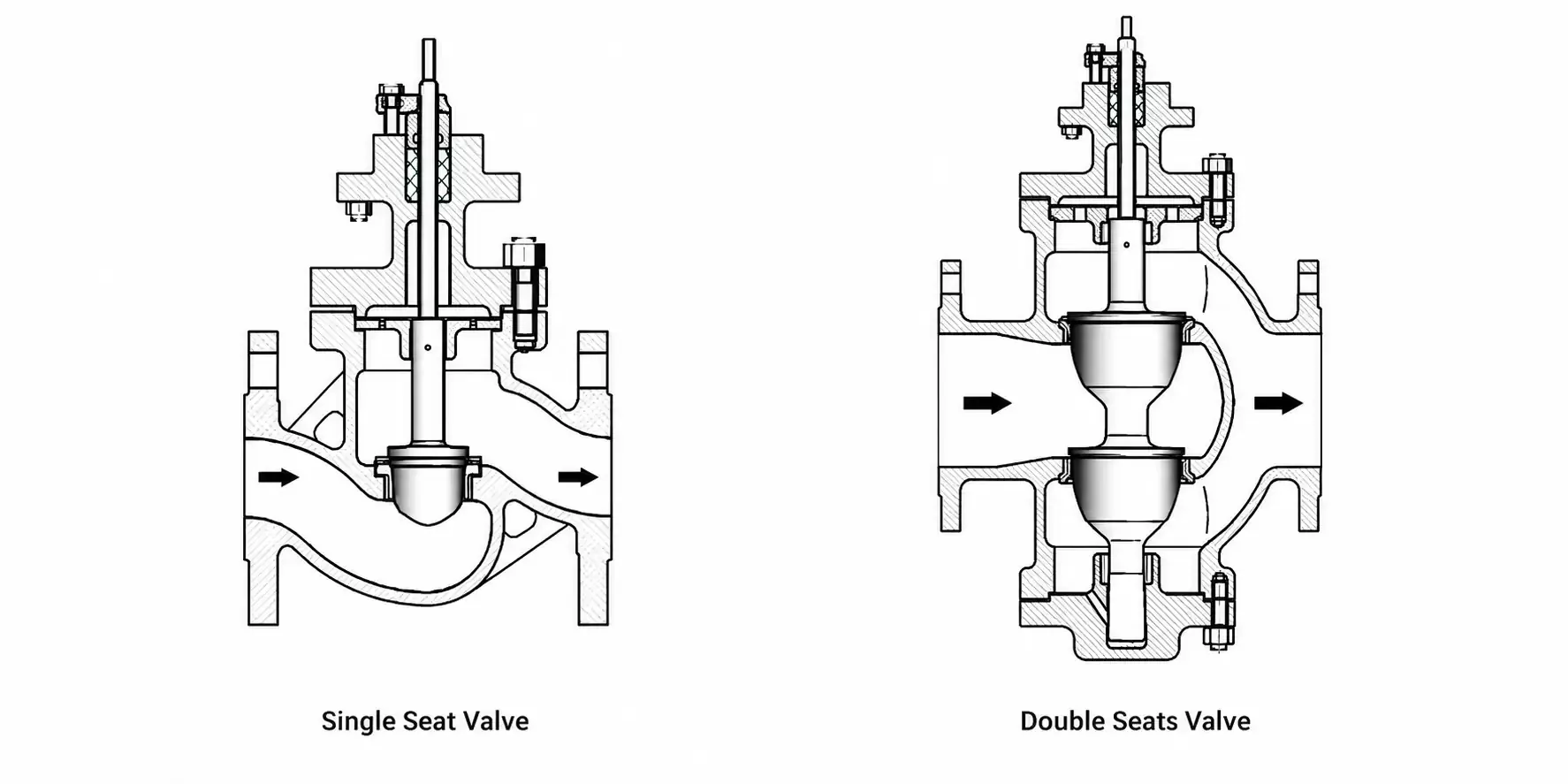

A single-seated globe trim uses one plug on the valve stem and one seat ring around a single flow port. Stem movement changes the flow area between the plug and seat. When the valve closes, this interface provides the final shut-off.
Plug contour, guiding method and pressure balancing can vary by model without changing the basic classification. The term single-seat control valve still identifies a trim arrangement with one final plug-to-seat shut-off interface.
Double-seated or double-ported globe trim
A traditional double-seated globe trim uses two plugs on a common stem and two corresponding seat rings inside one valve body. Both openings change together as the stem moves. The internal passage divides the flow between the two ports and recombines it before the fluid leaves the body.
Both plug-to-seat interfaces must close during the same stem travel. Manufacturing tolerances, wear and thermal distortion can therefore affect how evenly the two plugs contact their seats. This construction also creates the opposed hydraulic forces examined in the next section.
The name may include a separate actuator description. In electric double-seat control valve, for example, “double-seat” identifies the internal trim while “electric” identifies the actuation method.
Hygienic double-seat or mixproof valves belong to a different product family and use separate sealing elements to isolate process streams. Single-acting and double-acting also describe actuator action rather than seat count. A single-acting pneumatic actuator uses air pressure in one direction and spring force in the other, while a double-acting actuator uses air pressure in both directions.
How two opposing plugs change the force balance
On an unbalanced single-seat plug, differential pressure acts over the plug’s effective pressure area and creates a net force along the stem. The first static estimate is differential pressure multiplied by effective area, but flow direction determines whether that force assists or resists valve travel. The nominal pipe or port area cannot replace the manufacturer’s effective trim area in an actuator calculation.
Traditional double-ported trim orients the upper and lower plugs so that their hydraulic forces act in opposite axial directions. Part of one force subtracts from the other, usually leaving a lower net plug force than in a comparable unbalanced single-port arrangement. This partial cancellation is the reason the design is often described as semi-balanced.
The cancellation is rarely exact. The two effective pressure areas may differ because of the stem and trim geometry, while local pressure and flow-induced forces change as the valve moves through its stroke. Manufacturing tolerances and unequal seat contact can add further residual load.
A lower net hydraulic force may permit a smaller actuator than a comparable unbalanced single-seat valve under the same duty, but seat count alone cannot determine actuator size. The calculation must still include the worst opening or closing force, required seat load, packing friction, stem and plug weight, actuator spring force and the specified thrust margin.
Single-seated vs double-seated control valve comparison
This comparison is an initial screening tool rather than a substitute for the selected model’s datasheet, leakage rating and actuator calculation.
| Comparison criterion | Single-seated control valve | Traditional double-seated control valve |
|---|---|---|
| Trim construction | One plug, one seat ring and one final shut-off interface | Two plugs on a common stem, two seat rings and a divided internal flow path |
| Hydraulic force | An unbalanced plug can experience substantial net axial force | Opposed plug forces partially cancel, but residual static and dynamic forces remain |
| Actuator implication | Unbalanced trim may require more thrust; pressure-balanced variants can reduce the load | Lower net plug force may permit less actuator thrust for a comparable duty |
| Rated flow capacity | May have a lower rated Cv than a comparable double-ported body; model-specific | Two flow openings can provide greater rated capacity for a comparable nominal size; model-specific |
| Shut-off | One interface is generally easier to load consistently against the seat | Two interfaces are harder to seat simultaneously with equal contact load |
| Maintenance | Fewer seating surfaces simplify inspection and trim restoration | Both plug-to-seat interfaces must retain alignment and contact after wear or repair |
| Body and trim package | Usually simpler, although guiding and balancing features vary | Additional port and trim geometry can increase complexity, size or weight |
| Present-day selection role | Common starting point where shut-off and straightforward maintenance lead | Conditional option where capacity and reduced net plug force outweigh the shut-off limitation |
The initial decision usually turns on whether shut-off quality or the capacity and force advantage carries more weight. Neither column confirms suitability by itself. Required Cv, maximum closing differential pressure, permitted seat leakage and available actuator thrust must be checked against the actual valve model.
Which design fits the duty?
Start with single-seat when shut-off and simplicity lead
A single-seat design is usually the stronger preliminary direction when the control-valve specification assigns a demanding shut-off requirement. One plug-to-seat interface is easier to load consistently, inspect and restore than two interfaces that must close together. The actual leakage rating must still be confirmed from the selected trim and test standard.
The simpler flow path can also favour duties where maintenance access and predictable seat contact matter. Suspended solids, deposits and erosive particles can damage any control-valve seat, but a double-seat arrangement introduces a second sealing interface and additional internal geometry that must remain aligned and clear.
The main constraint is actuator demand when an unbalanced single-seat plug operates against high differential pressure. This does not automatically exclude the design. A larger actuator or a pressure-balanced single-seat trim may provide a workable configuration, subject to the model’s permissible differential pressure and shut-off performance.
Consider traditional double-seat when capacity and lower net plug force lead
A traditional double-seat valve becomes a reasonable screening option when the required Cv is difficult to obtain from a comparable single-port body and the permitted seat leakage is compatible with two shut-off interfaces. Its divided flow path can provide greater rated capacity without supporting a universal percentage increase.
Partial cancellation of the two plug forces may also reduce the actuator thrust required for a comparable unbalanced duty. This advantage must be calculated for the actual trim because residual hydraulic force, packing friction, seat load and actuator fail action remain part of the thrust requirement.
High differential pressure alone is not sufficient reason to specify a double-seat valve. Pressure drop, fluid velocity, cavitation or flashing risk, noise and trim durability must be evaluated separately. Seat count does not establish severe-service capability.
Verify the actual model rather than the label
The design name establishes the trim arrangement, not the complete operating envelope. Required Cv must be compared with the available trim rating, while maximum closing differential pressure must be checked for the specified flow direction, actuator and fail action. Permitted seat leakage must match the manufacturer’s tested leakage classification rather than an assumption based only on seat count.
Medium viscosity, suspended solids and deposits can change effective capacity, guiding behaviour and seat wear. These conditions may favour a particular port, guide or cage arrangement within either valve family. Once the preliminary direction is clear, compare control-valve configurations using model-level Cv, differential-pressure, leakage and actuator data.
Modern balanced single-seat trim changes the old rule
The old rule that high differential pressure requires a traditional double-seat body is incomplete. Pressure-balanced single-seat trim can reduce hydraulic unbalance while retaining one final plug-to-seat shut-off interface.
In a typical cage-guided balanced design, pressure-communication passages expose both sides of the plug to process pressure. Much of the static pressure force therefore cancels across the plug’s effective area. A seal between the plug and cage restricts flow through the balancing path, while the main seat ring remains the final shut-off interface.
This arrangement can reduce the actuator thrust required compared with an unbalanced single-seat plug. It also avoids the need to bring two separate plugs into equal seat contact. The Emerson Control Valve Handbook identifies balanced cage trim as an important reason traditional double-ported bodies have become less common in many new applications.
Balanced trim introduces its own selection limits. The plug seal adds friction and must remain compatible with the process temperature, pressure and fluid. Deposits or suspended solids can impair movement or damage sealing surfaces, while leakage performance depends on both the balancing seal and final seat design. The manufacturer’s permissible differential pressure and actuator calculation remain decisive.
Balanced single-seat trim is therefore an alternative to evaluate, not a universal replacement for either design. The relationship between single-seat, cage-guided and multi-stage trim shows how guiding, pressure balancing and severe-pressure-drop treatment create separate selection decisions.
Conclusion
Seat count is the first screening decision, not the completed control-valve selection. Single-seat trim usually leads when shut-off and simpler maintenance carry more weight, while traditional double-seat trim remains a conditional option when capacity and reduced net plug force justify its two seating interfaces. Required Cv, maximum closing differential pressure, tested leakage rating and calculated actuator thrust must still be matched to a specific model in the MacoTango control-valve series.
