Selecting the right valve seal materials is crucial for valve performance, safety, and durability. These materials must withstand harsh conditions, including corrosive chemicals, extreme temperatures, high pressure, and mechanical wear. Choosing an unsuitable seal can lead to leaks, degradation, and costly failures. By considering factors like corrosion resistance, wear resistance, erosion resistance, hardness-elasticity balance, thermal stability, and chemical compatibility, industries can ensure efficient and reliable valve operation while extending equipment lifespan.
1. Corrosion Resistance: Surviving Harsh Chemical Environments
Why Corrosion Resistance is Critical
Valve seals are routinely exposed to a variety of chemicals, making their resistance to corrosion a pivotal factor in maintaining system integrity. When seals come into contact with aggressive substances, such as acids, bases, or solvents, they can degrade rapidly if not made from compatible materials. This degradation compromises the seal’s effectiveness, leading to potential leaks, environmental hazards, and costly downtime.
Material Examples & Applications

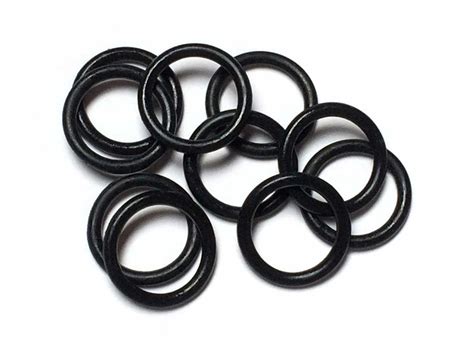

FKM
Fluoroelastomer (FKM): Known for its exceptional resistance to a wide range of chemicals, FKM is particularly effective against strong acids like sulfuric acid, as well as oils and fuels. This makes it a preferred choice in industries such as chemical processing and petroleum refining, where exposure to harsh substances is common.
Ethylene Propylene Diene Monomer (EPDM): EPDM offers excellent resistance to hot water, steam, and certain chemicals like mild acids and alkalis. However, it is not suitable for applications involving petroleum-based oils and fuels, as it lacks resistance to these substances. EPDM is commonly used in water treatment facilities and HVAC systems.
Perfluoroelastomer (FFKM): With an even higher fluorine content than FKM, FFKM provides superior chemical resistance and can withstand extreme temperatures. It is ideal for applications involving highly corrosive fluids and is often utilized in semiconductor manufacturing and other demanding environments.
Risks of Poor Corrosion Resistance
Utilizing valve seals that lack adequate corrosion resistance can lead to several serious issues:
Leakage: Degraded seals may fail to contain process fluids, resulting in leaks that can disrupt operations and pose safety risks.
Safety Hazards: Leaks involving hazardous chemicals can endanger personnel, lead to environmental contamination, and result in regulatory non-compliance.
Increased Maintenance Costs: Frequent seal failures necessitate additional maintenance efforts and expenses, leading to increased operational costs and potential downtime.
2. Wear Resistance: Enduring High-Frequency Operations
The Role of Wear in Valve Longevity
In valve systems, wear resistance is crucial for maintaining longevity and performance, especially under high-frequency operations. Continuous friction between moving components, such as seals and valve seats, leads to material degradation over time. This degradation can compromise the seal’s integrity, resulting in leaks and reduced efficiency.
Top Materials for Wear Resistance
PTFE
Polytetrafluoroethylene (PTFE): Known for its low coefficient of friction and excellent chemical inertness, PTFE is widely used in high-cycle systems. Its self-lubricating properties reduce wear, making it suitable for applications requiring minimal maintenance and consistent performance.
Viton (FKM): A high-grade fluoroelastomer, Viton offers good abrasion resistance, making it suitable for dynamic systems where parts are in motion. However, it is slightly less durable under mechanical wear compared to PTFE.
Rulon: A derivative of PTFE, Rulon is enhanced with fillers to improve its mechanical properties, including wear resistance. It is commonly used in seals and bearings where low friction and durability are required.
Frelon: Another PTFE-based material, Frelon is engineered with proprietary fillers to increase bearing characteristics such as low wear and high strength. It is chemically inert and self-lubricating, making it suitable for high-load applications.
Consequences of Ignoring Wear Resistance
Neglecting wear resistance in seal material selection can lead to several detrimental outcomes:
Shortened Lifespan: Seals that wear prematurely require frequent replacements, increasing maintenance efforts and costs.
Operational Downtime: Unexpected seal failures can cause unplanned shutdowns, disrupting production schedules and reducing overall efficiency.
Safety Hazards: Worn seals may lead to leaks of hazardous fluids, posing risks to personnel and the environment.
3. Erosion Resistance: Defending Against High-Speed Fluids
How Erosion Compromises Seal Integrity
In valve systems, erosion occurs when high-velocity fluids, often carrying abrasive particles, impinge upon seal surfaces. This continuous impact can gradually wear away the material, leading to surface degradation and compromised seal integrity. Over time, erosion can create pathways for leaks, reducing the efficiency and safety of the system.
Erosion-Resistant Materials in Action
Polyurethane: Renowned for its excellent abrasion resistance and high tensile strength, polyurethane is particularly effective in applications involving high-friction and wear. Its durability makes it a preferred choice for seals in water pipelines where high-speed fluids are common.
Silicone Rubber: While silicone rubber offers good tensile strength, it has relatively poor abrasion resistance compared to polyurethane. This limitation makes it less suitable for environments where seals are exposed to high-velocity fluids and abrasive particles, as it may lead to quicker material degradation.
Long-Term Costs of Erosion Damage
Neglecting erosion resistance in seal material selection can lead to several detrimental outcomes:
Surface Grooving: Continuous erosion can cause grooves to form on the seal surface, compromising its ability to maintain a tight seal and leading to inefficiencies.
Leakage: As erosion progresses, the likelihood of leaks increases, posing safety hazards and potentially leading to environmental contamination.
Increased Maintenance Costs: Frequent seal failures due to erosion necessitate regular maintenance and replacements, escalating operational costs and causing unplanned downtime.
4. Hardness & Elasticity: Balancing Flexibility and Rigidity
Why Material Hardness Matters Under Pressure
In high-pressure valve systems, the hardness of seal materials plays a pivotal role in maintaining integrity and preventing failures. Soft seals are susceptible to extrusion, where the material is forced into gaps between components, leading to leaks and potential system failures. This risk is exacerbated in dynamic applications with fluctuating pressures.
Ideal Materials for Pressure Scenarios
Fluoroplastics (e.g., PTFE): Known for their high hardness and chemical resistance, fluoroplastics like PTFE are excellent choices for high-pressure applications. Their rigidity helps prevent deformation and extrusion under stress, making them suitable for demanding environments.
Nitrile Rubber (NBR): While NBR offers good oil resistance and elasticity, it has limitations in high-pressure scenarios. Its relatively lower hardness compared to fluoroplastics makes it more prone to extrusion and deformation under extreme conditions, leading to potential seal failures.
The Danger of Mismatched Properties
Selecting seal materials with inappropriate hardness and elasticity can lead to several issues:
Deformation: Materials lacking sufficient hardness may deform under pressure, compromising the seal’s effectiveness.
Leaks: Deformed or extruded seals can result in fluid leakage, posing safety hazards and environmental risks.
Safety Breaches: Seal failures in critical systems can lead to operational downtime and pose significant safety concerns.
5. Thermal Stability: Withstanding Temperature Extremes
Thermal Expansion and Compression Challenges
Valve seals are often subjected to varying temperatures, leading to thermal expansion and compression cycles. Materials with high coefficients of thermal expansion may expand or contract significantly with temperature changes, causing deformation or loss of sealing integrity. Such deformations can result in leaks, especially in systems experiencing frequent temperature fluctuations.
Graphite Composites
Graphite Composites: Known for their excellent thermal stability and resistance to high temperatures, graphite composites are ideal for applications like steam systems. They maintain structural integrity and sealing performance even under extreme heat, making them preferable in such environments.
Vespel (Polyimide): Vespel is a high-performance polyimide-based plastic that combines heat resistance, lubricity, dimensional stability, chemical resistance, and creep resistance. It can withstand repeated heating up to 300 °C without altering its thermal and mechanical properties, making it suitable for hostile and extreme environmental conditions.
Rubber Materials: While elastomers like EPDM and NBR are commonly used for seals, they may not perform well under high-temperature conditions. Exposure to elevated temperatures can lead to thermal expansion, compression set, and loss of elasticity, resulting in seal failure. Therefore, their use is limited in applications involving extreme heat.
Risks of Overlooking Thermal Compatibility
Ignoring the thermal compatibility of seal materials can lead to several issues:
Permanent Deformation: Materials not suited for high temperatures may undergo irreversible changes in shape, compromising the seal’s effectiveness.
Leakage: Deformed or degraded seals can cause leaks, leading to potential safety hazards and operational inefficiencies.
6. Chemical & Oxidation Resistance: Preventing Degradation
The Impact of Reactive Media on Valve Seal Materials
Valve seals are frequently exposed to reactive media, such as aggressive chemicals and oxidizing agents, which can lead to chemical breakdown and oxidation of the seal materials. This degradation compromises the seal’s integrity, resulting in leaks, contamination, and potential system failures.
Chemically Stable Material Choices
FKM
Fluoroelastomer (FKM): FKM exhibits excellent resistance to a wide range of chemicals, including hydrocarbons, oils, and certain acids. Its strong carbon-fluorine bonds provide high chemical, thermal, and oxidation resistance, making it suitable for applications involving exposure to aggressive substances.
Perfluoroelastomer (FFKM): FFKM compounds contain an even higher amount of fluorine than FKM fluoroelastomers, offering improved resistance to high temperatures and chemicals. They are commonly used to make O-rings and gaskets for applications involving contact with hydrocarbons or highly corrosive fluids.
Natural Rubber: While natural rubber is economical and commonly used for lining applications due to its excellent wear properties, it has poor resistance to petroleum products and is susceptible to oxidation. This susceptibility can lead to rapid aging, loss of elasticity, and eventual seal failure when exposed to reactive media.
Costs of Chemical Incompatibility
Selecting seal materials without adequate chemical and oxidation resistance can lead to several issues:
Seal Brittleness and Cracks: Exposure to incompatible chemicals can cause seals to become brittle and develop cracks, compromising their sealing capability.
System Contamination: Degraded seals may release particles into the system, leading to contamination and affecting the quality of the process or product.
Conclusion: Valve Seal Materials
Choosing the right valve seal materials is essential for ensuring long-term performance, safety, and efficiency in industrial applications. Factors such as corrosion resistance, wear resistance, erosion resistance, hardness-elasticity balance, thermal stability, and chemical resistance all play a crucial role in preventing leaks, reducing maintenance costs, and extending the lifespan of valve systems. By carefully selecting materials that match the demands of specific operating conditions, industries can avoid premature failures and costly downtimes. To ensure optimal valve performance, consult with sealing experts or manufacturers who can provide tailored recommendations based on your unique requirements.
