In industrial systems, selecting the right valve is more than a technical detail—it directly impacts performance, safety, and maintenance costs. When comparing a slide gate valve vs knife gate valve, the differences matter. Slide gate valves are ideal for clean fluids and low-pressure environments, offering simplicity and cost savings. Knife gate valves, built for abrasive slurries, solids, and fluctuating pressures, deliver durability and tight shut-off in tough conditions. Mismatching valve type to application can lead to leakage, jamming, or even system failure. That’s why understanding the strengths and limitations of each valve is essential for efficient and reliable system design.

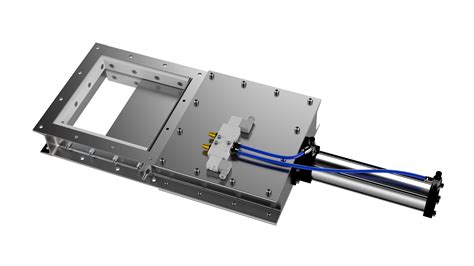

What is a Slide Gate Valve?

Design & Working Principle

A slide gate valve operates by moving a flat or slightly curved plate horizontally across the flow path to control the passage of materials. This linear motion mechanism enables precise control over the flow of dry bulk materials, such as powders, granules, and pellets. The valve typically consists of a frame, a sliding blade, and actuation hardware, which can be manual, pneumatic, or electric. When the blade is in the closed position, it blocks material flow completely; when opened, it allows material to pass through, either fully or in a controlled amount.

Key Applications

Slide gate valves are versatile and find applications across various industries:

• Material discharge from hoppers, bins, and silos: They are commonly used to control the flow of dry bulk materials in storage and handling systems.

• Pneumatic conveying systems: Ideal for controlling the flow in dilute or dense phase pneumatic conveying of powders and granules.

• Batch processing in food, chemical, plastics, and cement industries: Their precise control makes them suitable for batching operations.

• Dust collection and airlock systems: Used to isolate equipment and control airflow in dust collection systems.

Advantages

Slide gate valves offer several benefits:

• Cost-effective: Their simple design and construction make them an economical choice for many applications.

• Rapid operation: The linear motion allows for quick opening and closing, facilitating efficient material handling.

• Easy maintenance: With fewer moving parts and straightforward construction, maintenance is typically simple and less time-consuming.

Limitations

Despite their advantages, slide gate valves have certain limitations:

• Unsuitable for solids/abrasives: They are not recommended for handling materials with high solid content or abrasive characteristics, as these can cause wear and damage.

• Low pressure tolerance (≤0.6 MPa): Slide gate valves are generally designed for low-pressure applications and may not perform well under higher pressures.

• Plate deformation risk: Under certain conditions, such as exposure to high temperatures or pressures beyond their design limits, the sliding plate may deform, compromising the valve’s sealing capability.

Technical Specifications

• Typical Sizes: DN100–DN600

• Maximum Pressure: Up to 0.6 MPa



What is a Knife Gate Valve?

Design & Working Principle

A knife gate valve features a sharp-edged blade that moves vertically to cut through thick or solid-laden fluids, providing effective isolation. The gate is guided during closure to ensure alignment and tight sealing. This design minimizes pressure drop when fully open, offering an unobstructed flow path. Knife gate valves are primarily designed for on-off and isolation applications, particularly in systems handling thick fluids, slurries, powders, or other viscous materials.

Key Applications

Knife gate valves are essential in industries where handling challenging media is required:

• Mining and Mineral Processing: Control of abrasive and corrosive slurries, including transportation of minerals, ores, and tailings.

• Pulp and Paper Industry: Management of pulp, paper stock, and other fluids with suspended fibers.

• Wastewater Treatment: Regulation of sludge, sewage, and other waste materials containing solids and debris.

• Chemical and Petrochemical Industry: Handling of corrosive or abrasive chemicals and fluids containing solids or particles.

• Power Generation: Management of fly ash, bottom ash, and other materials produced during combustion processes.

Advantages

Knife gate valves offer several benefits:

• Resists Jamming: The sharp-edged gate cuts through thick or solid-laden fluids, preventing clogging.

• Handles Abrasives and Pressure Surges: Designed to withstand challenging conditions, including abrasive materials and pressure fluctuations.

• Tight Shut-Off: Provides effective sealing with resilient seats, ensuring zero leakage.

Limitations

Despite their advantages, knife gate valves have certain limitations:

• Higher Cost: Generally more expensive than other valve types due to their specialized design.

• Overkill for Clean Fluids: Not the most economical choice for applications involving clean, non-viscous fluids.

Technical Specifications

• Typical Sizes: DN80–DN1200

• Maximum Pressure: 1.0 MPa (PN10)



Direct Comparison: Slide Gate Valve vs Knife Gate Valve

Structural Differences

Slide Gate Valves feature a thin, flat plate that moves linearly to control the flow of dry bulk materials. The sealing mechanism typically involves hard polymer seals reinforced with compressed rubber backing, ensuring consistent pressure against the slide plate and accommodating wear over time. This design is lightweight and modular, making it suitable for applications where space and weight are considerations.

Knife Gate Valves, on the other hand, are constructed with a thicker, sharp-edged blade designed to cut through viscous fluids, slurries, and solids. The blade is guided during closure to ensure alignment and tight sealing, often utilizing elastomer or urethane o-ring seals. These valves are generally heavier due to their robust construction, which is necessary to withstand the demands of challenging media.

Performance in Challenging Media

Slide Gate Valves are optimized for handling dry bulk materials such as powders, granules, and pellets. Their design allows for precise control of material flow in applications like hoppers, bins, and pneumatic conveying systems. However, they are not suitable for liquids or media with high solid content, as they may leak or become obstructed.

Knife Gate Valves excel in managing challenging media, including slurries, wastewater, and fibrous materials. Their sharp-edged blade cuts through thick or solid-laden fluids, providing effective isolation. These valves are designed to handle abrasive and corrosive materials, making them ideal for industries such as mining, pulp and paper, and wastewater treatment.

Operational Reliability

Slide Gate Valves offer reliable operation in dry bulk applications, with hard polymer seals that compensate for wear and a self-cleaning action that prevents material buildup. Their lightweight and modular design facilitates easy maintenance and reduces downtime.

Knife Gate Valves are designed for durability in harsh environments. While their seals may require replacement over time due to wear from abrasive media, the robust construction of the valve ensures long-term reliability. Maintenance may be more involved compared to slide gate valves, but their ability to handle challenging media justifies the additional effort.



How to Choose: Slide Gate or Knife Gate Valve?

Selecting the appropriate valve is crucial for ensuring efficient and reliable operation in industrial systems. The choice between slide gate and knife gate valves depends on specific factors such as the type of media, operating pressure, and performance requirements.

Opt for Slide Gate Valves When:

• Media: Ideal for handling clean, dry bulk materials like powders, granules, and pellets. They are not suitable for liquids or media with high solid content, as they may leak or become obstructed.

• Pressure: Best suited for low-pressure applications, typically up to 0.6 MPa. Exceeding this pressure may compromise the valve’s sealing capability.

• Budget: Slide gate valves are cost-effective due to their simple design and construction, making them an economical choice for many applications.

Choose Knife Gate Valves When:

• Media: Designed to handle challenging media, including slurries, wastewater, and fibrous materials. The sharp-edged blade cuts through thick or solid-laden fluids, providing effective isolation.

• Pressure: Suitable for applications with pressures up to 1.0 MPa (PN10). They can withstand pressure fluctuations and provide reliable sealing under varying conditions.

• Critical Needs: Knife gate valves offer tight shut-off capabilities, ensuring zero leakage. Their robust construction makes them ideal for applications where minimal downtime and maintenance are essential.



Maintenance & Lifespan Considerations

Slide Gate Valves

Slide gate valves are favored for their straightforward design and ease of maintenance. However, in harsh environments—such as those involving abrasive or particle-laden media—their components can experience accelerated wear. The constant movement of the gate against the valve body, especially when handling solids, can lead to erosion of the sealing surfaces and potential leakage. Regular inspection and timely replacement of worn parts are essential to maintain optimal performance.

Knife Gate Valves

Knife gate valves are engineered to handle challenging media, including slurries and fibrous materials. Their robust construction offers durability, but they require periodic maintenance to ensure longevity. Key maintenance tasks include:

• Packing Adjustments: Regularly check and adjust the packing gland to prevent leaks. Over-tightening can increase operating torque and reduce packing life.

• Lubrication: Lubricate the valve stem and stem nut periodically to reduce friction and wear.

• Seal and Seat Inspections: Inspect seals and seats for wear or damage, replacing them as necessary to maintain sealing integrity.



Conclusion

In summary, choosing between a slide gate valve vs a knife gate valve comes down to matching the valve to your system’s media and pressure demands. Slide gate valves are best for clean water, light slurries, and low-pressure applications where cost and simplicity matter. Knife gate valves, on the other hand, are built for tough jobs—handling sludge, fibers, abrasives, and fluctuating pressures up to 1.0 MPa. While knife gate valves may cost more upfront, they deliver superior reliability in challenging environments. Bottom line: prioritize the characteristics of your media and system pressure over initial price to ensure long-term performance and lower total cost of ownership.
