Ball valves and slip ball valves are two of the most commonly used valve types for controlling the flow of fluids in a wide range of industries. While both valves serve the same fundamental purpose—regulating fluid flow—their design and functionality differ significantly, making each suitable for distinct applications. Ball valves, known for their durability and high-pressure resistance, are the preferred choice for industrial environments like oil and gas pipelines, water treatment plants, and chemical processing facilities. Their robust construction ensures reliability under extreme conditions, making them ideal for demanding, long-term installations.
In contrast, slip ball valves are designed for more flexible, low-pressure applications. Their push-to-connect installation feature allows for quick and easy setup, often without the need for specialized tools. This makes them particularly useful in residential and light commercial plumbing, where time-sensitive repairs or modifications are required. While slip ball valves are not built for extreme pressures, their high flow capacity and ease of installation make them a practical solution for everyday plumbing needs and emergency fixes. This article explores the key differences between slip ball valve vs ball valve, examining their respective applications, advantages, and considerations to help you make an informed decision about which valve is best suited to your needs.

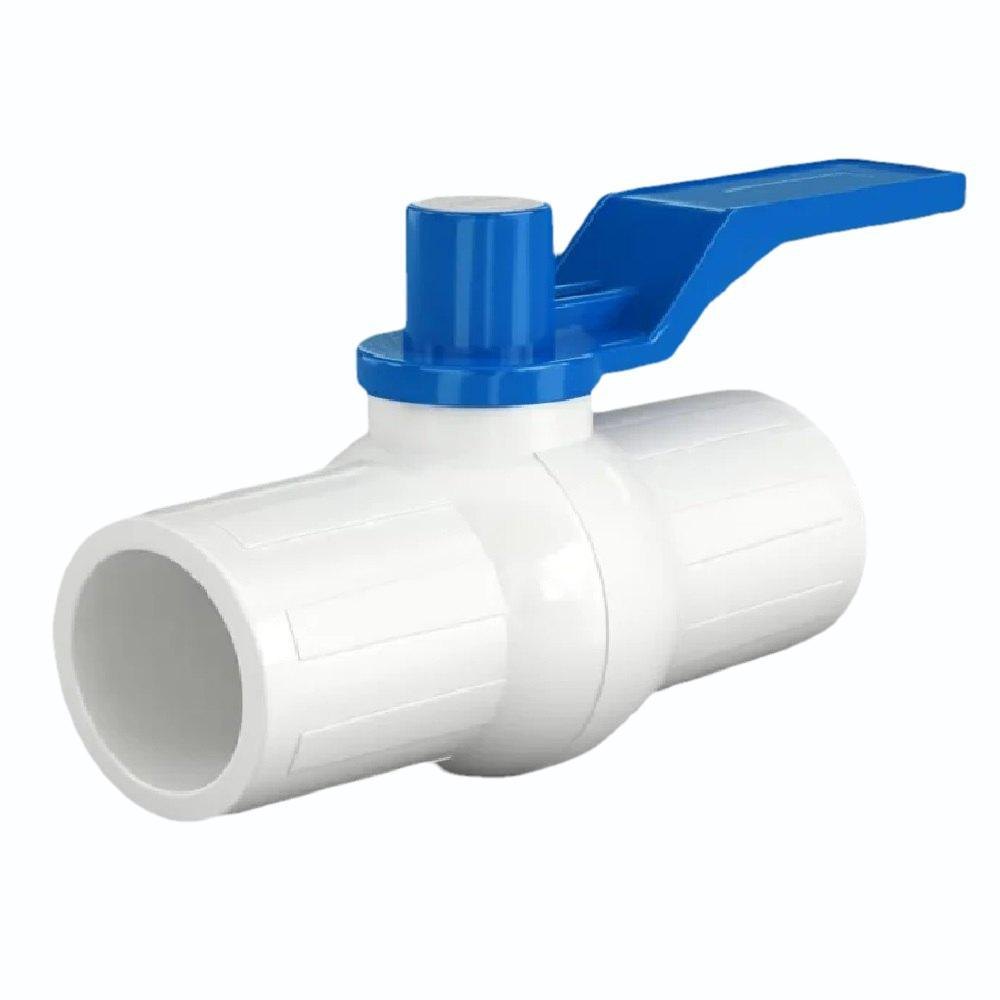

Slip-Plastic-Ball-Valve
What is a Slip Ball Valve?
Source: Landscape Products
A slip ball valve is a specially designed type of valve that combines the functionality of a traditional ball valve with a unique “slip” feature, making it easier to install and remove. The key distinguishing characteristic of a slip ball valve is its push-to-connect design, which eliminates the need for threading, welding, or soldering. Instead, the valve can be slid onto pre-existing pipes, allowing for quick and secure installation without the need for additional tools. This feature is especially useful in confined spaces or when making retrofits or repairs.
In operation, a slip ball valve functions much like any standard ball valve, using a rotating ball with a central hole to control the flow of fluids. The valve can be opened or closed by rotating the ball, which either aligns the hole with the pipeline to allow flow or blocks it when the valve is closed. The valve also incorporates seals to ensure a leak-proof operation. It is particularly effective in applications that require high flow capacity due to its full-bore design, allowing for maximum fluid flow without restrictions.
Applications of Slip Ball Valves
- Emergency Repairs: Slip ball valves are commonly used for emergency plumbing repairs due to their easy installation and removal. Their push-to-connect mechanism allows for quick adjustments without the need for special tools or expertise.
- Residential Plumbing: Ideal for residential plumbing systems, slip ball valves are employed for water flow control, allowing easy installation and disconnection.
- HVAC Systems: In HVAC systems, slip ball valves are used to isolate sections of the system, ensuring quick maintenance or changes without disrupting the entire setup.
- Industrial Fluid Control: Slip ball valves are applied in processing plants and waste treatment facilities to manage fluid flow and provide quick shut-off capabilities, ensuring safety and operational efficiency.
- Tight Spaces: Their compact design makes them ideal for use in confined spaces such as behind walls or within machinery where traditional installation methods may be challenging.
- Temporary Fixes: The ability to reposition and remove slip ball valves easily makes them perfect for temporary fixes during repairs or retrofits.
Here is a video demonstrates how to install and remove a slip ball valve.
Source: DlY Jun
What is a Ball Valve?
A ball valve is a type of valve that uses a spherical ball to control the flow of liquids or gases through a pipe. The valve consists of a hollow, perforated, and pivoting ball that is placed inside the valve body. When the ball’s hole is aligned with the flow path, the valve is open, and fluid can flow freely. When the ball is rotated 90 degrees, the hole is perpendicular to the flow path, blocking the flow and shutting off the valve.
In terms of operation, ball valves can be manual or automated, depending on the system requirements. Manual ball valves are typically operated by a handle or lever, while automated ball valves are equipped with actuators that allow for remote control and precise operation. Ball valves are available in different configurations, such as full-port, standard-port, and reduced-port, depending on the flow requirements and the application. They are commonly used for on/off control of fluid flow in pipelines, providing quick and reliable shutoff when needed.
Advantages of Ball Valves
Ball valves are recognized for their durability, high pressure tolerance, and versatility in demanding industrial environments. They are designed to handle high-pressure and high-temperature applications, making them essential for industries such as oil and gas, chemical processing, and water treatment. With a robust construction, ball valves ensure long-term performance, offering superior leak-proof sealing and control over flow rates. These valves are also highly reliable in critical applications where safety and consistent flow are essential. Available in a variety of materials, including stainless steel, ball valves can be chosen to withstand corrosion from aggressive chemicals and extreme temperatures, making them a solid choice for industrial and commercial use.
Applications of Ball Valves
- Industrial and High-Pressure Systems: Ball valves are commonly used in high-pressure environments like oil and gas pipelines, chemical processing, and water treatment facilities, due to their robust design and ability to handle extreme pressure and temperatures.
- Fluid Control in Chemical and Manufacturing Plants: Ball valves are employed in industries dealing with aggressive chemicals and corrosive fluids, offering secure flow control and leak prevention.
- Oil & Gas Pipelines: Their reliable shut-off capabilities make ball valves essential in controlling the flow of liquids and gases in critical oil and gas applications.
- Water Supply Systems: Ball valves are extensively used in municipal and residential water supply systems for regulating water flow, ensuring durability and reliability under long-term use.
- High-Temperature Environments: Due to their high durability and ability to withstand temperatures up to several hundred degrees, ball valves are used in high-temperature environments such as power plants and steam systems.
- Corrosive and Hazardous Fluid Handling: Made from corrosion-resistant materials like stainless steel, ball valves are widely used in handling aggressive and hazardous fluids.
Material Differences between Slip Ball Valve vs Ball Valve
Slip Ball Valve Materials:
- Slip ball valves are typically made from plastic, brass, or sometimes bronze.
- Plastics like PVC or CPVC are common for residential applications due to their corrosion resistance and cost-effectiveness.
- Brass and bronze are chosen for their durability in medium-pressure and low-temperature settings, especially in plumbing and HVAC systems.
Ball Valve Materials:
- Standard ball valves are made from a wide range of materials, including stainless steel, brass, and bronze, as well as specialty materials for high-end industrial use.
- Stainless steel is the most popular for industrial-grade ball valves, offering excellent corrosion resistance and the ability to handle high temperatures and pressures.
- Other materials, such as carbon steel and alloy steel, are used for specific applications like oil and gas pipelines, as they offer greater resistance to high pressure and harsh environments.
Comparison Table of Differences Between Slip Ball Valve vs Ball Valve
| Feature | Ball Valve | Slip Ball Valve |
|---|---|---|
| Design | A spherical ball with a hole through its center, typically connected to a handle for opening and closing. | Similar to ball valves but allows the ball to “slip” or slide within the valve body, often without a handle. |
| Installation | Requires threaded, soldered, or welded connections, which need more time and expertise. | Features a push-to-connect design for quick, tool-free installation, ideal for tight or confined spaces. |
| Applications | Ideal for high-pressure, industrial applications such as chemical plants, water treatment, and oil pipelines. | Primarily used for residential, HVAC, and light commercial applications, ideal for repairs or retrofits. |
| Pressure Tolerance | Built to withstand higher pressures and temperatures, suitable for demanding environments. | Designed for low- to moderate-pressure systems, less suited for heavy-duty or high-temperature applications. |
| Durability | More durable, typically made from strong materials like stainless steel, brass, or bronze. | Generally made from plastic or brass, suitable for less demanding environments. |
| Cost | More expensive due to the complexity of manufacturing and installation. | More affordable, as the design simplifies installation and reduces labor costs. |
| Maintenance | May require more frequent maintenance depending on the installation method and environment. | Generally requires less maintenance due to the simpler installation and design. |
| Flow Control | Excellent for on/off control and can also regulate flow with high precision in some designs. | Primarily used for throttling applications, offering a good flow rate control in specific use cases. |
| Material Flexibility | Available in various materials, including metal, ideal for handling corrosive fluids and gases. | Often made from plastic or durable plastic-composite materials, limiting their use in more aggressive environments. |
Choosing the Right Valve for Your Application
When to Use a Standard Ball Valve
Standard ball valves are ideal for applications where durability, reliability, and the ability to handle high pressures and temperatures are essential. They are typically used in industrial settings such as oil and gas pipelines, water treatment facilities, chemical processing plants, and manufacturing industries. Their robust construction makes them perfect for long-term installations where consistent, high-performance flow control is required. They are also well-suited for applications that involve corrosive fluids or extreme conditions, such as high-pressure and high-temperature environments.
Best Use Cases for Slip Ball Valves
Slip ball valves are more suited for applications where ease of installation, flexibility, and quick adjustments are the priorities. Commonly used in residential plumbing, HVAC systems, and light commercial settings, these valves are designed for quick, tool-free installation, making them ideal for retrofits, repairs, or installations in confined spaces. Their push-to-connect mechanism allows for easy repositioning and removal, which makes them highly effective for temporary fixes or when rapid changes are needed. While they are not recommended for high-pressure or industrial applications, they excel in residential plumbing and HVAC systems where simplicity and convenience are key.
Conclusion
Choosing between slip ball valve vs ball valve ultimately depends on your application’s specific needs. If you’re dealing with high-pressure systems in industrial environments, a standard ball valve is the right choice. On the other hand, if you’re looking for a cost-effective and easy-to-install solution for residential or light commercial plumbing, the slip ball valve may be the better option. TangoValve Group offers high-quality ball valves for all your needs; contact us today for expert advice and solutions.
